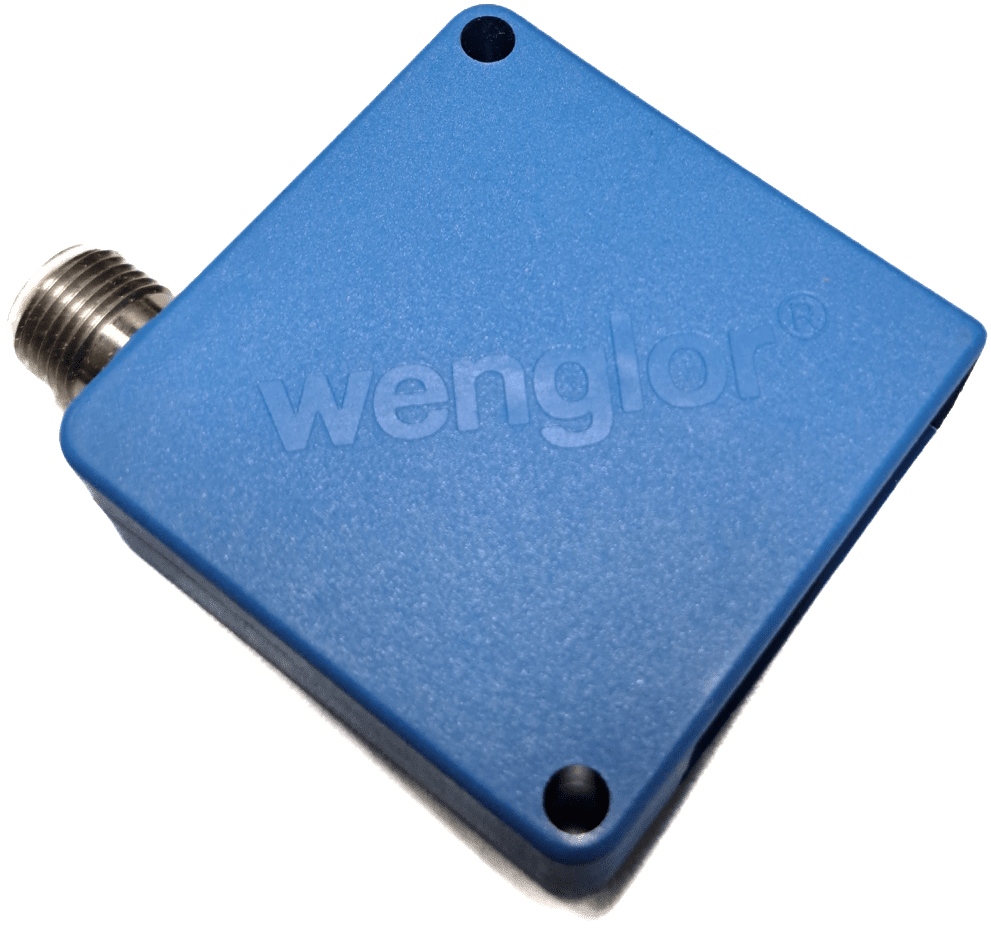

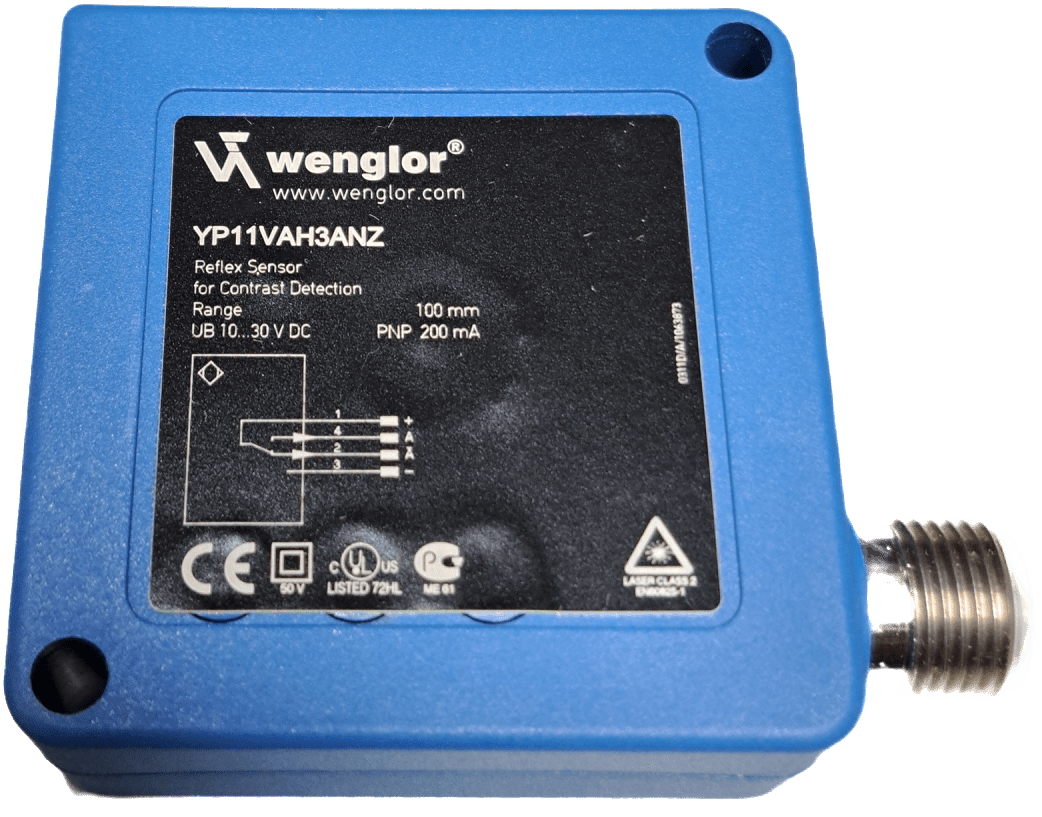

Wenglor YP11VAH3ANZ

Contrast sensor
Focusable scanning spot
Switching frequency: 20 kHz
Adjustable time delay
Tastweite 100 mm
Adjustment range 60 ... 100 mm
Switching hysteresis (lateral approach) <50 µm
Light type laser (red)
Wavelength 660 nm
Service life (Tu = +25 °C) 100,000 h
Laser class (EN 60825-1) 2
Max. permitted external light 10,000 lux
Light spot diameter 0.8 mm
Electrical data
Supply voltage 10 ... 30 V DC
Current consumption (Ub = 24 V) <30 mA
Switching frequency 20 kHz
Response time 25 µs
Pick-up time delay 0 ... 200 ms
Temperaturdrift <1 %
Temperature range -10 ... 60 °C
Voltage drop switching output <2.5 V
Switching current PNP switching output 200 mA
Short circuit proof yes
Reverse polarity and overload protected, yes
Protection class III
FDA Accession Number 0820518-000
Mechanical data
Adjustment type potentiometer
Housing material plastic
Fully encapsulated yes
Protection class IP65
Connection type M12 × 1; 4-pin
Output function
PNP-NC, PNP-NO yes
