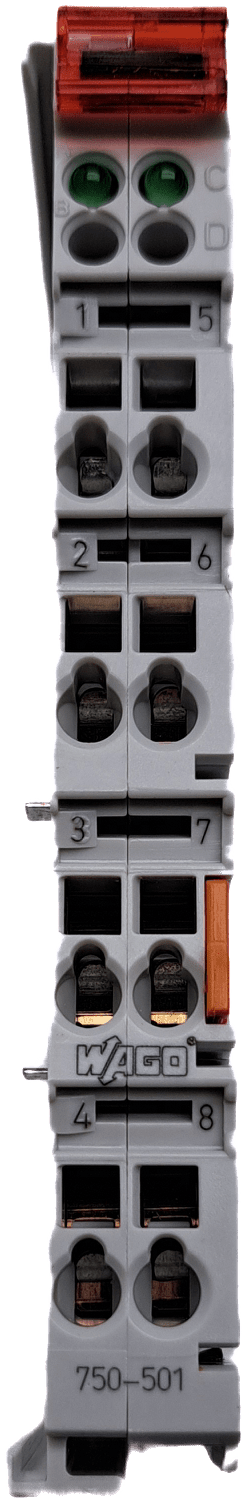

WAGO 2-Kanal-Digitalausgang 750-501

unused stock
2DO 24V DC0,5A
2-channel digital output

Number of digital outputs 2
Total number of channels (module) 2
Signalart Digital
Signal type Voltage DC 24 V
Actuator connection 2 x (2 wires, 3 wires, 4 wires)
Output characteristic positive switching
Output current per channel 0.5A
Output current short-circuit proof
Switching frequency max. 5 kHz
Load type ohmic, inductive, lamp load
Absorbable energy max. (single switch-off) 0.5J
Data width output data (internal) max. 2 bits
System supply voltage DC 5 V; via data contacts
Current consumption system supply (5 V) 3.5mA
Supply voltage field DC 24 V (-25 … +30%); via power contacts (supply via knife contact; forwarding via spring contact)
Current consumption field supply (module without external load) 15mA
Potential separation 500 V system/field
Display elements LED (A, C) green: status DO 1, DO 2
Number of power contacts incoming 3
Number of power contacts outgoing 3
Current carrying capacity of the power contacts 10A
