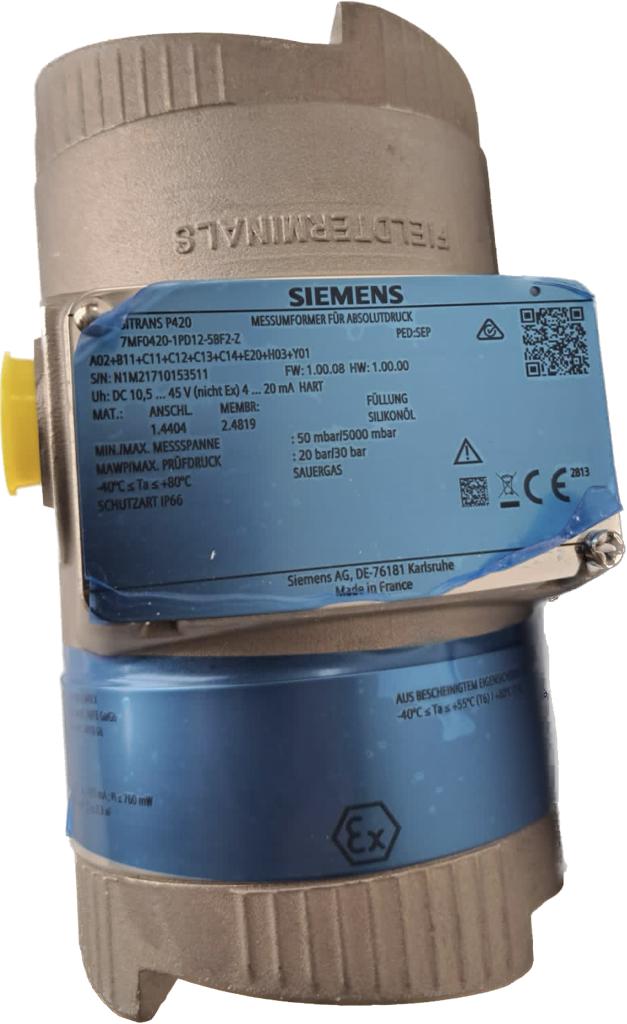

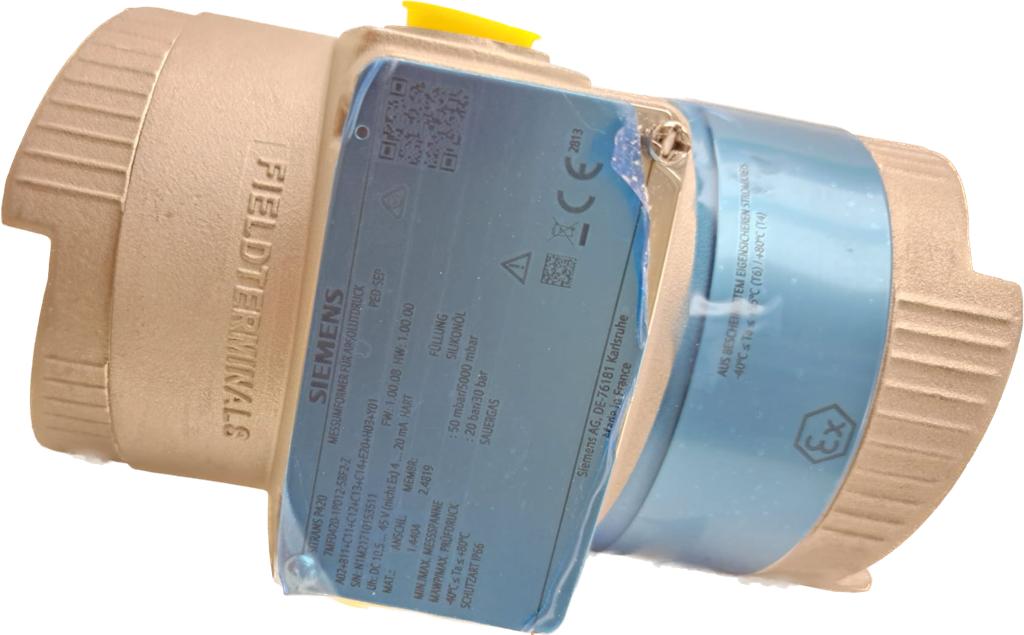

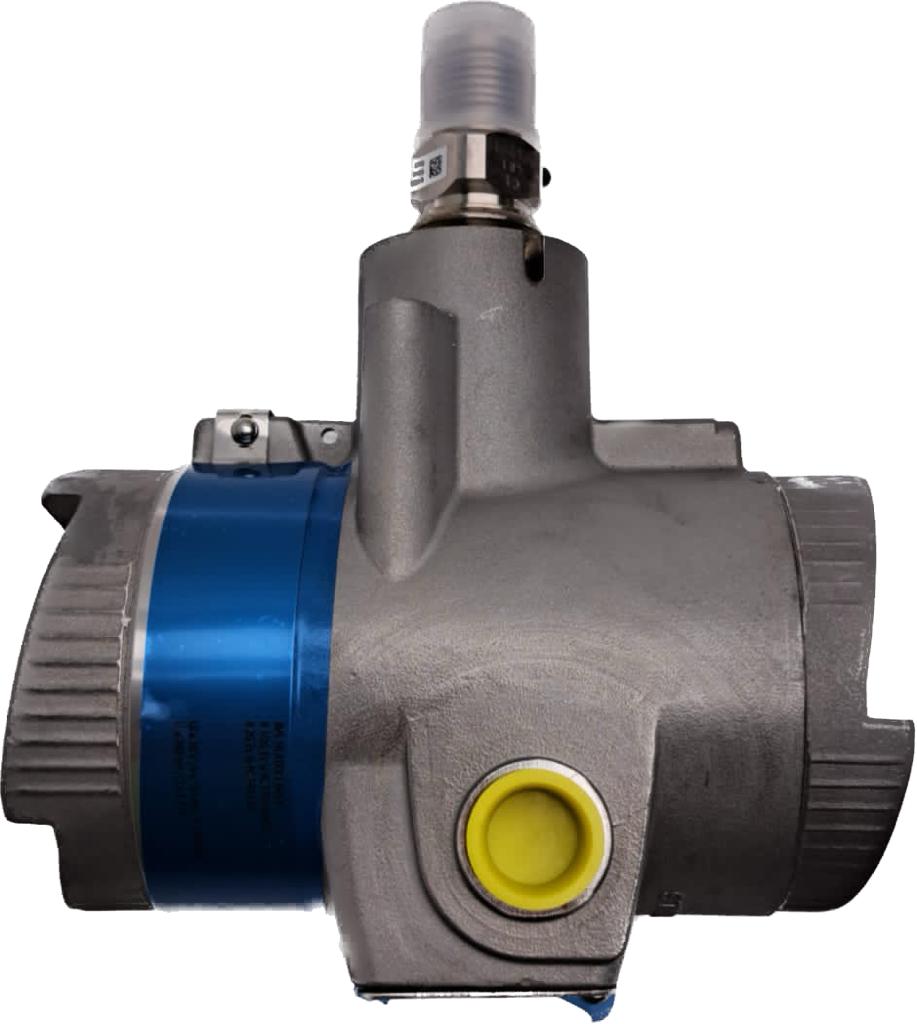

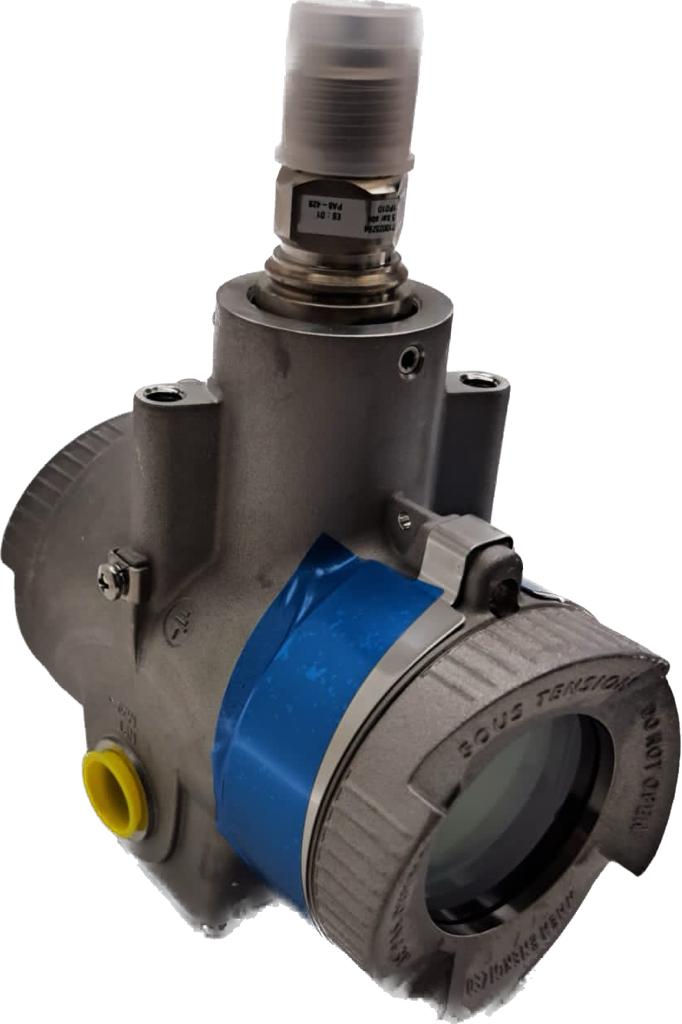

Siemens 7MF0420-1PD12-5BF2-Z SITRANS P420

Siemens
Sitrans P420
Feature Feature value
SITRANS P420 7MF04 / HNU 7MF04 SITRANS P420 pressure gauge
Technology, Sensor 2 Absolute Pressure
Communication 0 HART (4...20 mA)
Messzellenfüllung 1 Messzellenfüllung: Silicone oil
Maximum Messpan P Maximum Messpan: 5000 mbar (2009 inH²O)
Process connection D external thread G1/2A (DIN EN 837-1)
Material of the wetted parts 1 Process connection: Stainless steel 316L/1.4404;
Trennmembrane: Alloy C276/2.4819, Sensor
Differential pressure: Pressure cap: stainless steel 316/1.4408
Material of the parts not in contact with the medium 2 Housing made of stainless steel investment casting CF3M/1.4409 similar
316L
Housing 5 Two-chamber device
Ignition protection type B intrinsic safety
Electrical connections / cable entries F 2 x M20 x 1.5
Local operation/display 2 with display (lid with glass pane)
