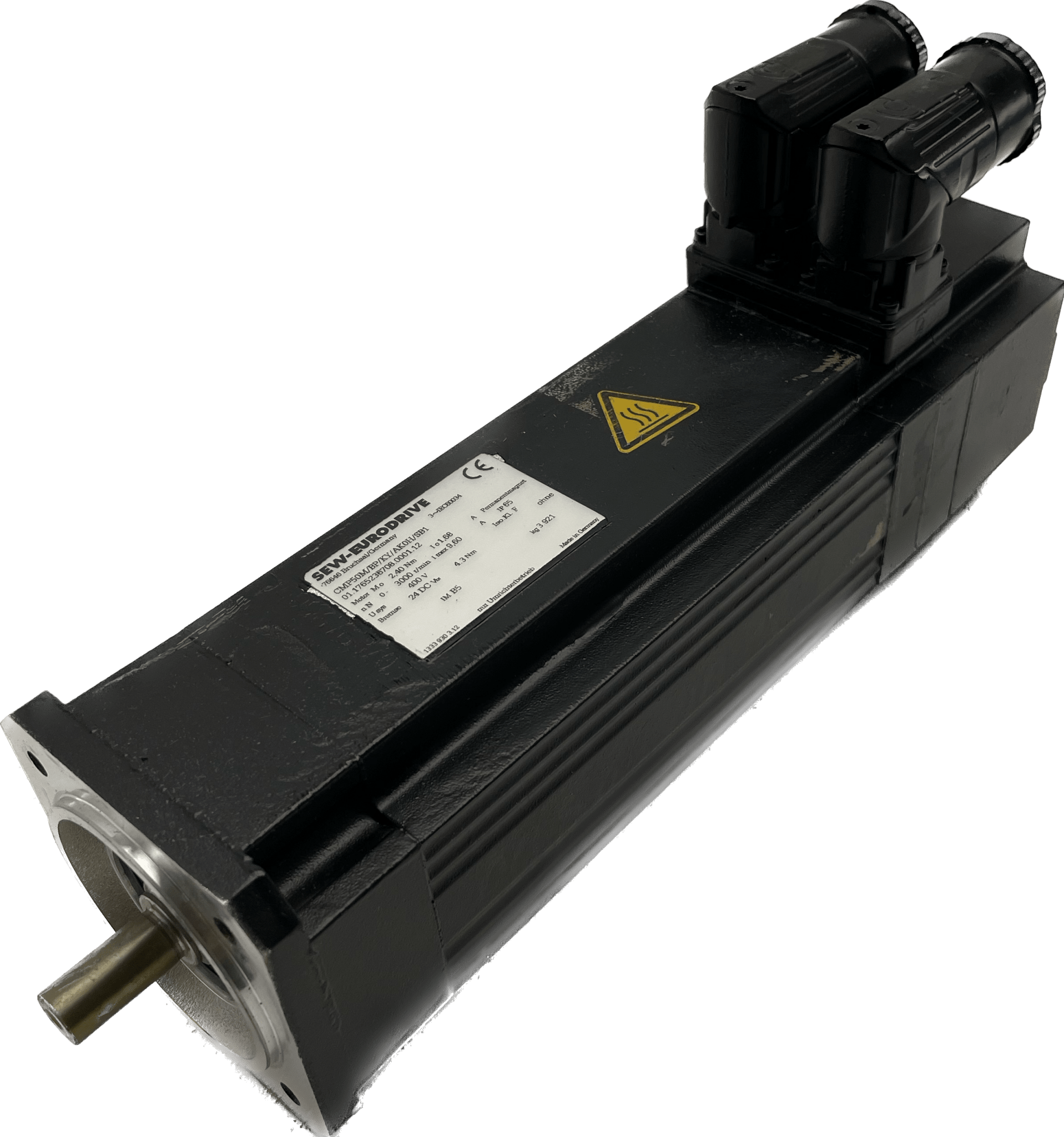

SEW-Eurodrive Servomotor CMP50M/BP/KY/AK0H/SB1

unused stock
Servomotor
Speed class nC 3000 1/min
Type B5
Base/top coat 9005 jet black (51390050)
Position of plug/terminal box 270°
Cable entry/plug position, plug version can be aligned
Output shaft 11x23 mm
Motor design in flange design
Flange diameter 73 (square flange) mm
Flange Q73
Stillstandsdrehmoment M0 2,40 Nm
Duty cycle S1-100%
Motor voltage 400 V
Circuit diagram 63119633.08
Stillstandsstrom I0 1,68 A
max. zul. Strom Imax 9,60 A
Thermal class F
Motor protection class IP65
Mass moments of inertia (related to the drive side) 0.81 10-4 kgm2
Net weight
