Schlemmer 5308952 SIB F7022000 cable gland
plus VAT. plus shipping and handling
unused stock
50pcs per pack

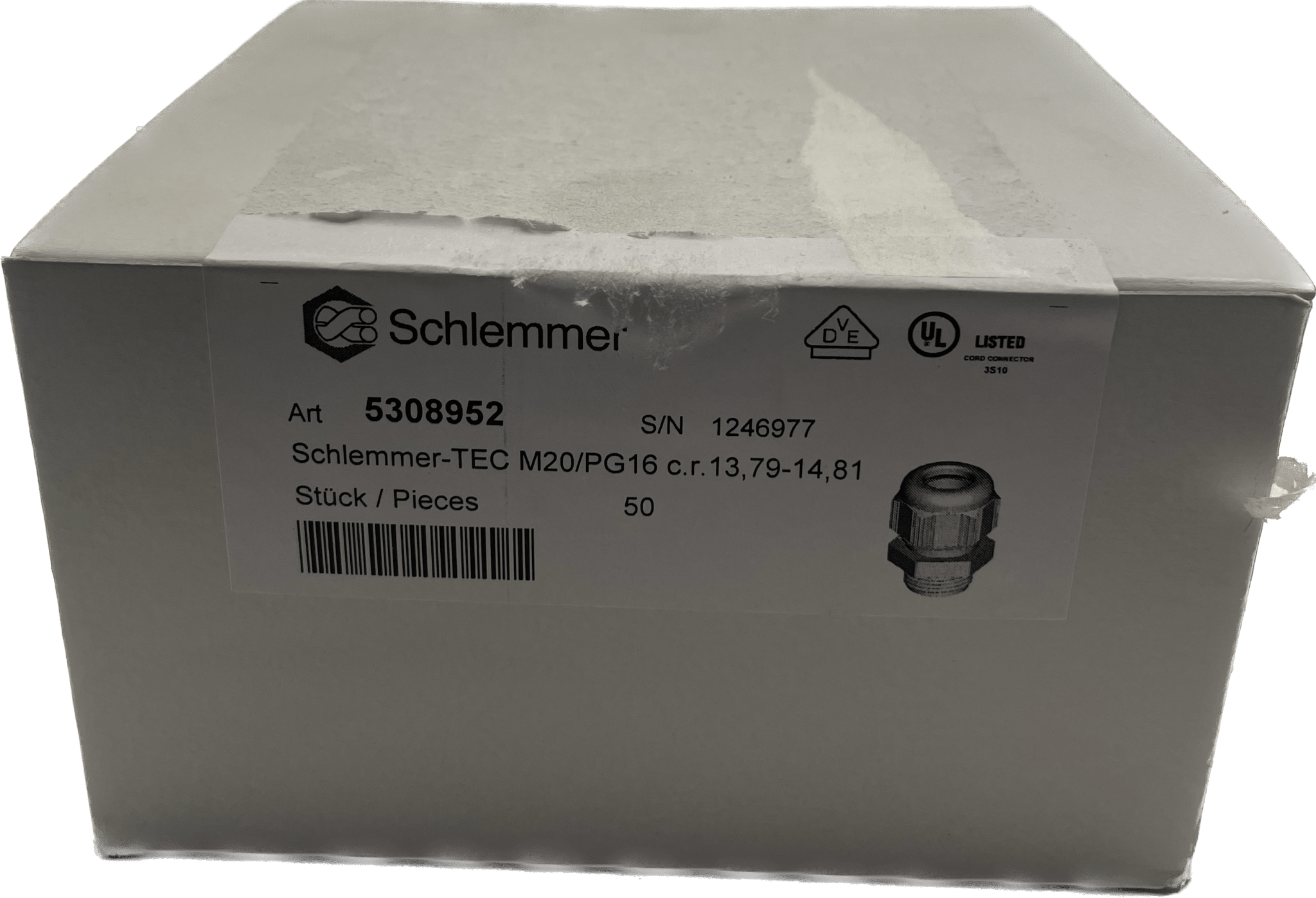

SIB F7022000 cable gland SIB-TEC Metric M20x1.5/16 5308952 light gray
The Schlemmer Tec cable glands made of polyamide can all be processed by hand. In addition to its IP 68 seal and vibration-proof strain relief, it is suitable for all applications with temperature ranges from -40°C to 100°C.
Material:
- Screw body/cap nut: Polyamide 6
- Seal: Neoprene
- self-extinguishing class V2 (UL 94)
Operating temperature:
- from -40 to +100 degrees Celsius.
Clamping range in mm:
7,0-14,0
Thread length in mm:
10
Color:
light gray
Characteristics:
- optimal strain relief through clamping slats
- Sealing to the housing through a sealing lip
- Trapezoidal thread for high tightening torque guarantees a tight and lasting fit of the cap nut
- gas and watertight
Areas of application:
- Mechanical and plant engineering
- Photovoltaics
- Automation technology
- Shipbuilding
Spezifikationen
Diese Informationen werden zeitnah ergänzt.
Einsatzbereiche
Diese Informationen werden zeitnah ergänzt.
Lieferumfang
Diese Informationen werden zeitnah ergänzt.
Download Data Sheet
