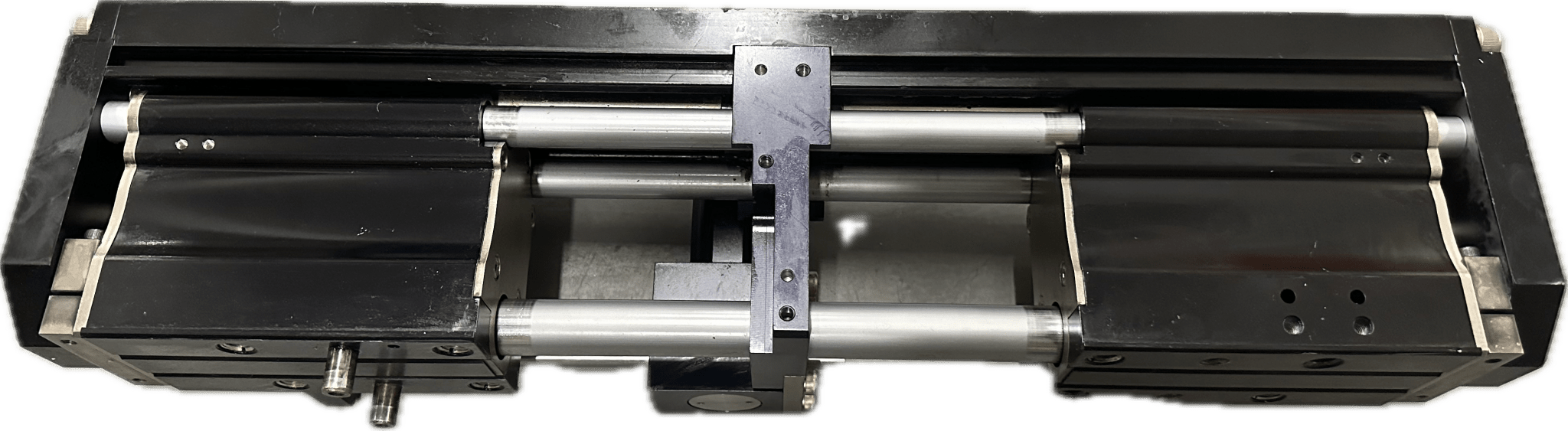

phd inc. pneumatischer Parallelgreifer GRR12-6-63 x 250-H47-ZI

needed
pneumatic parallel gripper
with high snapshot
Gripper, standard, parallel gripper, long stroke, heavy duty
Dubbed; Type 2 gripper jaws
metric
63mm piston diameter
x 250mm Gesamtbackenhub (2x 125mm)
Corrosion-resistant coating
on external parts, except Rodlok mechanism and Rodlok piston rod
Rodlok
Opening or closing times 6bar: 0.42sec
Luftverbrauch pro Hub cm³: 787cm³
Gripping force
external gripping: 522
Inside gripping: 469
Max permissible forces and moments:
Fa N 15570
Mx Nm 990
My Nm 825
Mz Nm 825
Fa: Total value for both jaws
Mx: Value per jaw, measured from jaw surface
My: Value per jaw, measured at the centric center of the jaw
Mz: Value per jaw, measured from jaw surface
