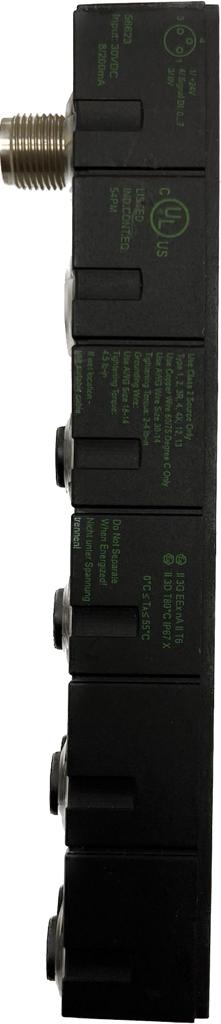

Murr Elektronik Cube67 DI8 E 8xM8 56623
Registrieren um Preise zu sehen
plus VAT. plus shipping and handling
Murr Electronics
needed
56623
Cube67 I/O expansion module
8 digital inputs
Customs tariff number 85389099
ENTRANCE
Sensor supply US 24 V DC (EN 61131-2), max. 200 mA (M8 socket), short-circuit and overload proof
Type for 3-wire sensors or mechanical switches, PNP
Input filter 1 ms
GENERAL DATA
Fastening type 2-hole screw fastening
Temperature range 0...+55 °C (storage temperature -20...+75 °C)
Protection class IP67
Dimensions H×W×D 151×30×34.5 mm
DIAGNOSE
Communication status per LED
Diagnostics via BUS per module and channel
Diagnostics via LED per module and channel
Monitoring - undervoltage yes
Monitoring - no voltage yes
Short circuit and overload yes
INTERNAL COMMUNICATION
LED display US: sensor supply and internal power supply (green: OK); UA: Actuator supply (green: OK)
Current consumption max. 30 mA
CONNECTIONS
Fieldbus via internal system connection
Sensor system/actuator supply via internal system connection (max. 2× 4 A)
I/O slots M8 (socket) 3-pin, A-coded
PARAMETERS
needed
56623
Cube67 I/O expansion module
8 digital inputs
Customs tariff number 85389099
ENTRANCE
Sensor supply US 24 V DC (EN 61131-2), max. 200 mA (M8 socket), short-circuit and overload proof
Type for 3-wire sensors or mechanical switches, PNP
Input filter 1 ms
GENERAL DATA
Fastening type 2-hole screw fastening
Temperature range 0...+55 °C (storage temperature -20...+75 °C)
Protection class IP67
Dimensions H×W×D 151×30×34.5 mm
DIAGNOSE
Communication status per LED
Diagnostics via BUS per module and channel
Diagnostics via LED per module and channel
Monitoring - undervoltage yes
Monitoring - no voltage yes
Short circuit and overload yes
INTERNAL COMMUNICATION
LED display US: sensor supply and internal power supply (green: OK); UA: Actuator supply (green: OK)
Current consumption max. 30 mA
CONNECTIONS
Fieldbus via internal system connection
Sensor system/actuator supply via internal system connection (max. 2× 4 A)
I/O slots M8 (socket) 3-pin, A-coded
PARAMETERS
Download Data Sheet
