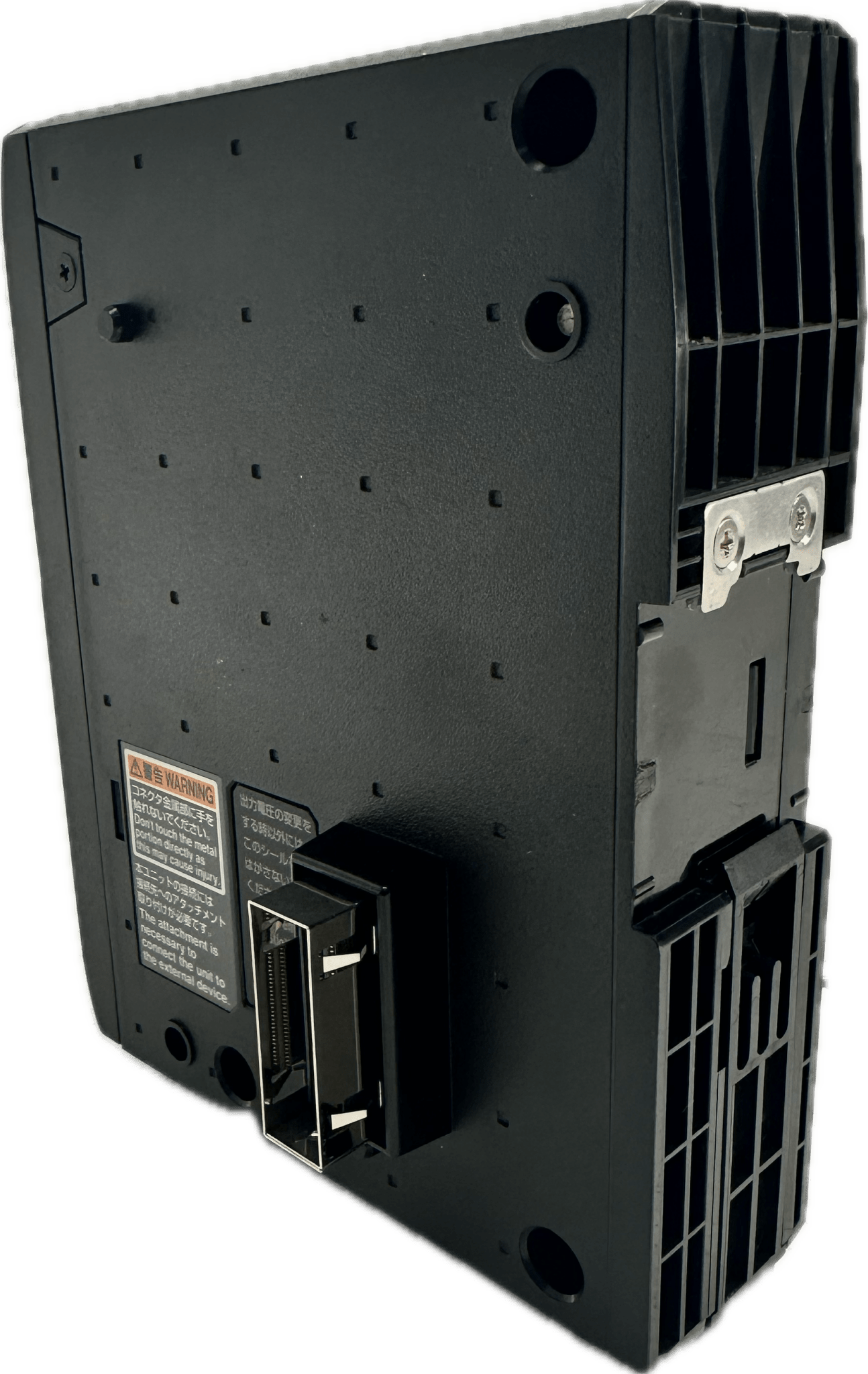

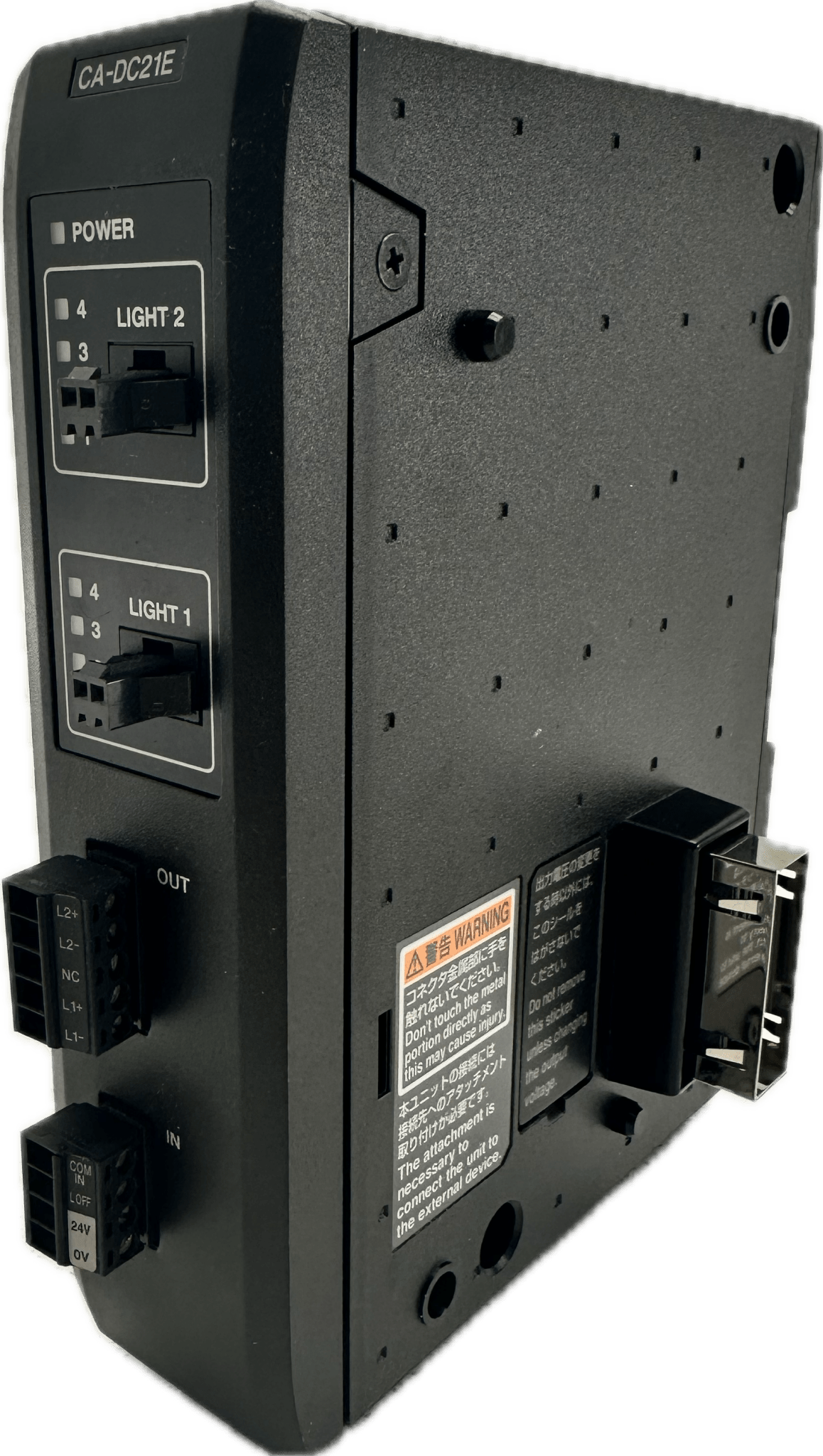

Keyence LED lighting controllers CA-DC21E

needed
LED lighting controls
CA-DC21E
Type

Lighting controller
Only for XG/CV-5000/CV-X200/CV-X100 series

Entrance

Forced shutdown of the lighting: input voltage max. 26.4 V, min. 2 mA

output

Light control method

(1) Constant voltage regulation method (DC lighting)
(2) Pulse width modulation method (emission frequency: 100 kHz)
[Änderung der Steuergeräteeinstellung]

Brightness levels

255 levels digital [Änderung der Steuergeräteeinstellung]

Number of connections

2 channels
(available for LED connection and terminal block connection)

Tension

12 VDC/24 VDC [Einstellung über DIP-Schalter]

Performance

Max. 40W (30W pro Kanal)

Synchronisation

Synchronization via FLASH output/continuous lighting
[Änderung der Steuergeräteeinstellung]

response time

(1) Constant voltage regulation: Max. 10ms at 12V output, Max. 20ms at 24V output
(2) Pulse width modulation method: Max. 1ms for 12/24V output
