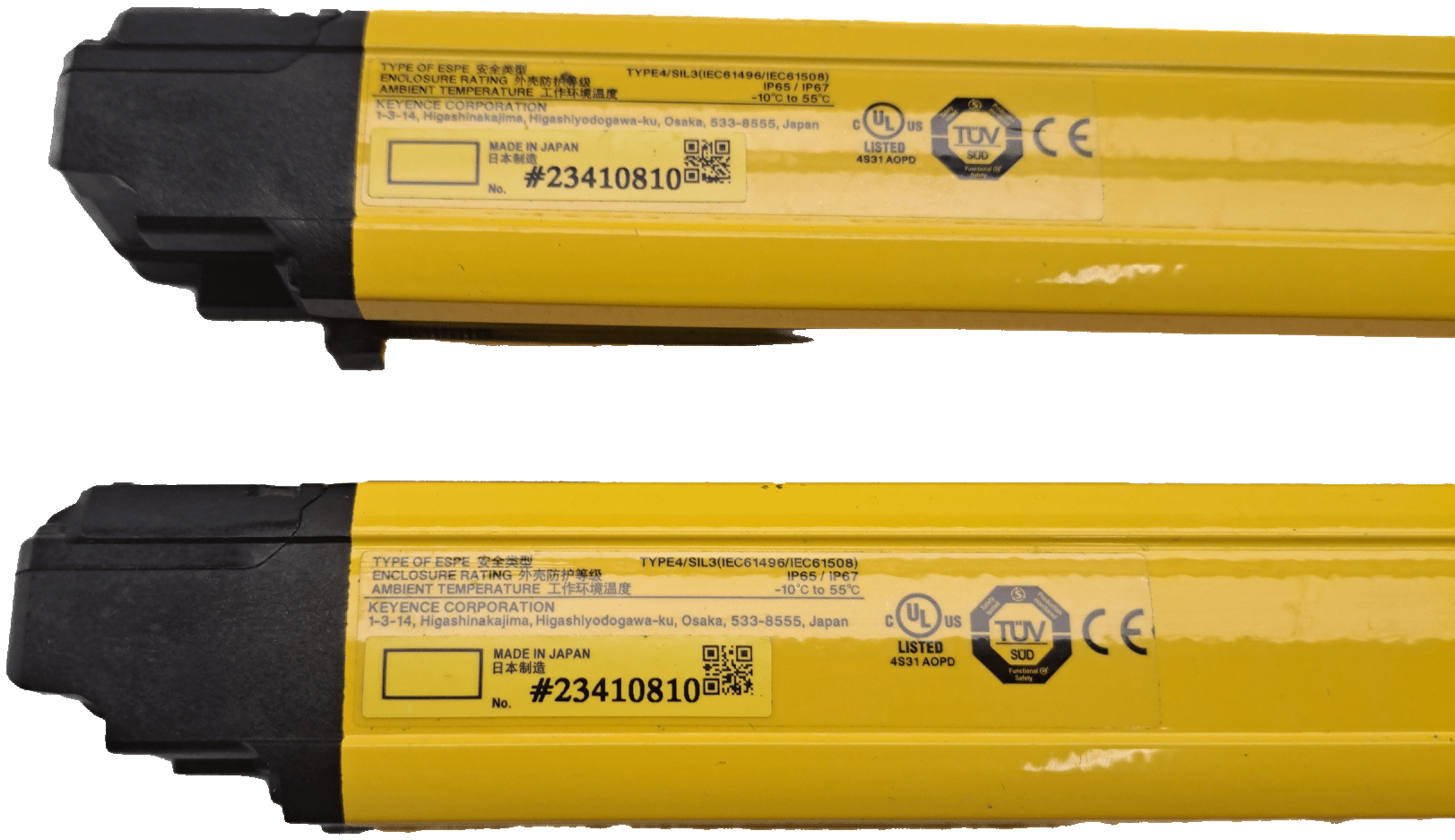

Keyence safety light curtain set GL-R12H

needed
Safety light curtain set
Main unit, hand-protecting design, 12 optical axes
Model

GL-R12H-R and GL-R12H-T
Resolution
ø25 mm
overall length
240mm
Number of beam axes
12
Detection height
220mm
Protection height
265mm
Distance between beam axes / beam axis diameter
20 mm / ø5
Messabstand
0.2 to 15 m*1
Effective opening angle
Max. ±2.5° (When the operating distance is at least 3 m.)
Light source
Infrared LED (870 mm)
Response time (OSSD)(ms)
Synchronisation per Kabel, One-Line-System
or system with optical synchronization (channel 0)
ON OFF
6,6
FROM A
48,7*2
All interrupted
A
63,1*3
Optical synchronization system
(Channel A or B)
ON OFF
7,4
FROM A
49,9*2
All interrupted
A
66,3*3
Capture mode
Turns ON when there are no interruptions within the detection area.
Synchronization between transmitter and receiver
Optical synchronization or cable synchronization (determined by cabling)
