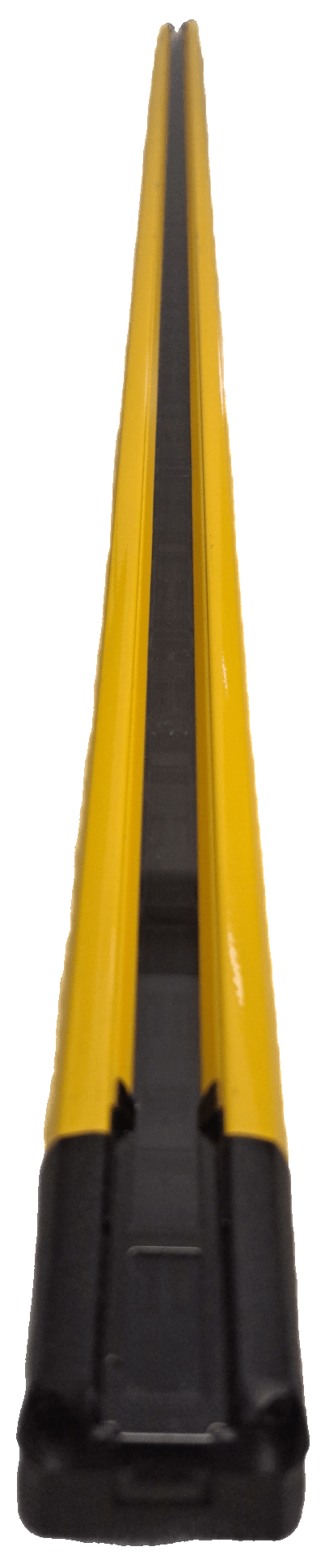

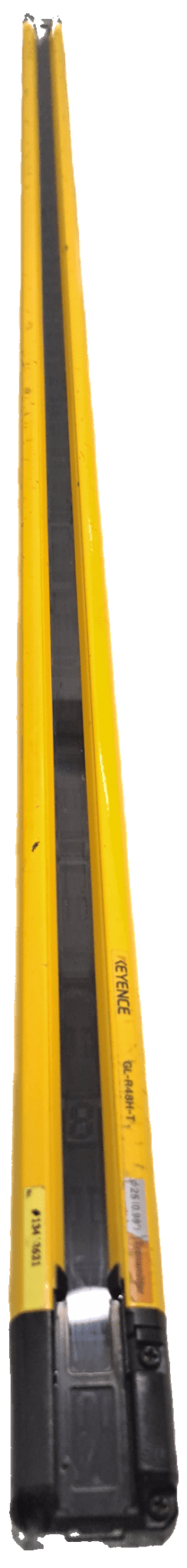

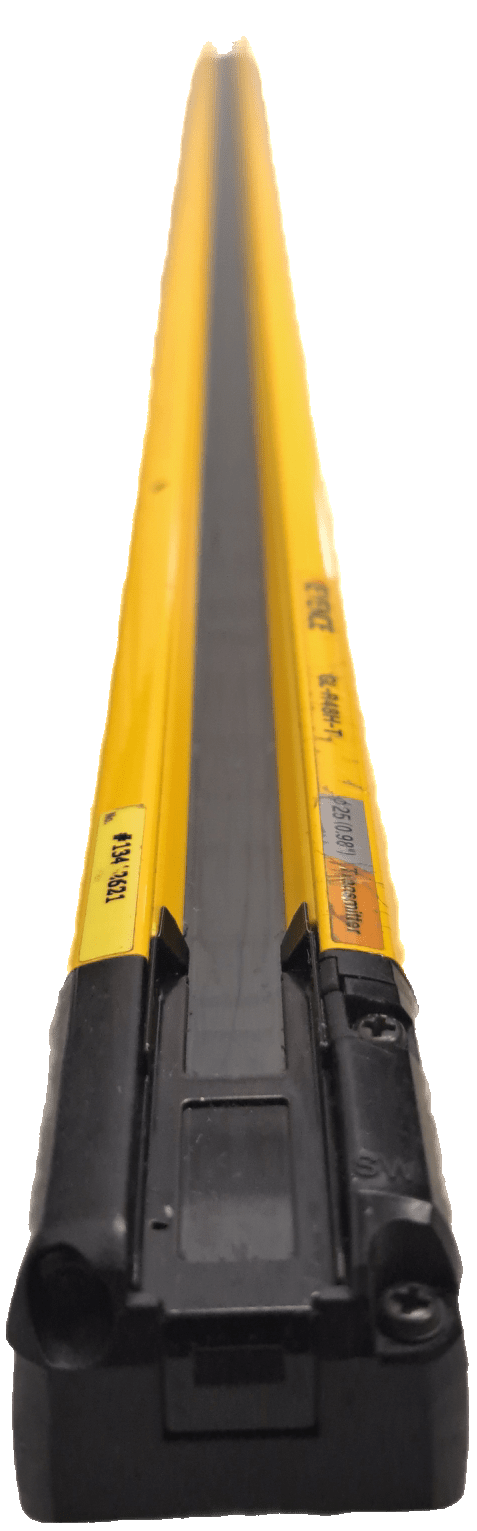

Keyence safety light curtain set GL-R48H

needed
Safety light curtain set
Main unit, hand-protecting design, 48 optical axes
Model

GL-R48H-R and GL-R48H-T
Resolution
ø25 mm
overall length
960mm
Number of beam axes
48
Detection height
940mm
Protection height
985mm
Distance between beam axes / beam axis diameter
20 mm / ø5
Messabstand
0.2 to 15 m*1
Effective opening angle
Max. ±2.5° (When the operating distance is at least 3 m.)
Light source
Infrared LED (870 mm)
Response time (OSSD)(ms)
Synchronisation per Kabel, One-Line-System
or system with optical synchronization (channel 0)
ON OFF
9,6
FROM A
53,2*2
All interrupted
A
75,2*3
Optical synchronization system
(Channel A or B)
ON OFF
13,6
FROM A
59,3*2
All interrupted
A
91,4*3
Capture mode
Turns ON when there are no interruptions within the detection area.
Synchronization between transmitter and receiver
Optical synchronization or cable synchronization (determined by cabling)
