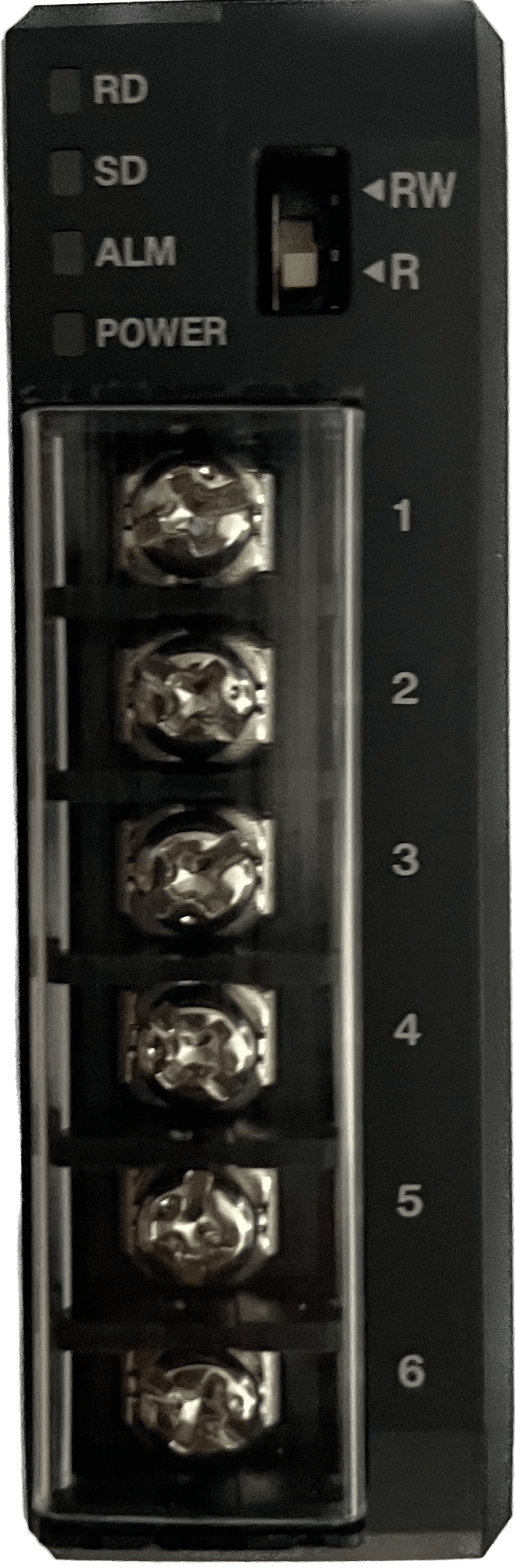

Keyence 232C communication unit DL-RS1A
plus VAT. plus shipping and handling
unused stock
RS-232C communication unit
Model
DL-RS1A
Synchronization between transmitter and receiver
Asynchronous
Transmission code
ASCII
Baudrate
2,400/4,800/9,600/19,200/38,400 bps selectable (factory setting: 9,600 bps)
Data bit length
7 or 8 bit selectable (factory default setting: 8 bit)
Parity check
None/Even/Odd selectable (Factory default setting: None)
Stop bit-Long
1 Bit
Data limiter
Receiving data: Automatic detection CR or CR + LF
Sending data: fixed to CR + LF
Advertisement
2 x communication indicator (green), alarm indicator (red), power indicator (green)
Sensor-
connection-
Specifications
Connectable
Max. 15 units (including main unit)
Supply voltage
20 to 30V DC with 10% residual ripple (S-S), class 2 (voltage is supplied via the connected measuring amplifier main unit)
Power consumption
max. 25 mA
Environmental resistance
Ambient temperature
-10 to +55 °C
Relative humidity
35 to 85% RH (No Condensation)
Vibration resistance
10 to 55 Hz, double amplitude 1.5 mm, 2 hours each in the X, Y and Z directions
Material
Main unit housing: Polycarbonate
Weight
Approximately 53 g
Communication procedures
Vollduplex
RS-232C communication unit
Model
DL-RS1A
Synchronization between transmitter and receiver
Asynchronous
Transmission code
ASCII
Baudrate
2,400/4,800/9,600/19,200/38,400 bps selectable (factory setting: 9,600 bps)
Data bit length
7 or 8 bit selectable (factory default setting: 8 bit)
Parity check
None/Even/Odd selectable (Factory default setting: None)
Stop bit-Long
1 Bit
Data limiter
Receiving data: Automatic detection CR or CR + LF
Sending data: fixed to CR + LF
Advertisement
2 x communication indicator (green), alarm indicator (red), power indicator (green)
Sensor-
connection-
Specifications
Connectable
Max. 15 units (including main unit)
Supply voltage
20 to 30V DC with 10% residual ripple (S-S), class 2 (voltage is supplied via the connected measuring amplifier main unit)
Power consumption
max. 25 mA
Environmental resistance
Ambient temperature
-10 to +55 °C
Relative humidity
35 to 85% RH (No Condensation)
Vibration resistance
10 to 55 Hz, double amplitude 1.5 mm, 2 hours each in the X, Y and Z directions
Material
Main unit housing: Polycarbonate
Weight
Approximately 53 g
Communication procedures
Vollduplex
Spezifikationen
Diese Informationen werden zeitnah ergänzt.
Einsatzbereiche
Diese Informationen werden zeitnah ergänzt.
Lieferumfang
Diese Informationen werden zeitnah ergänzt.
