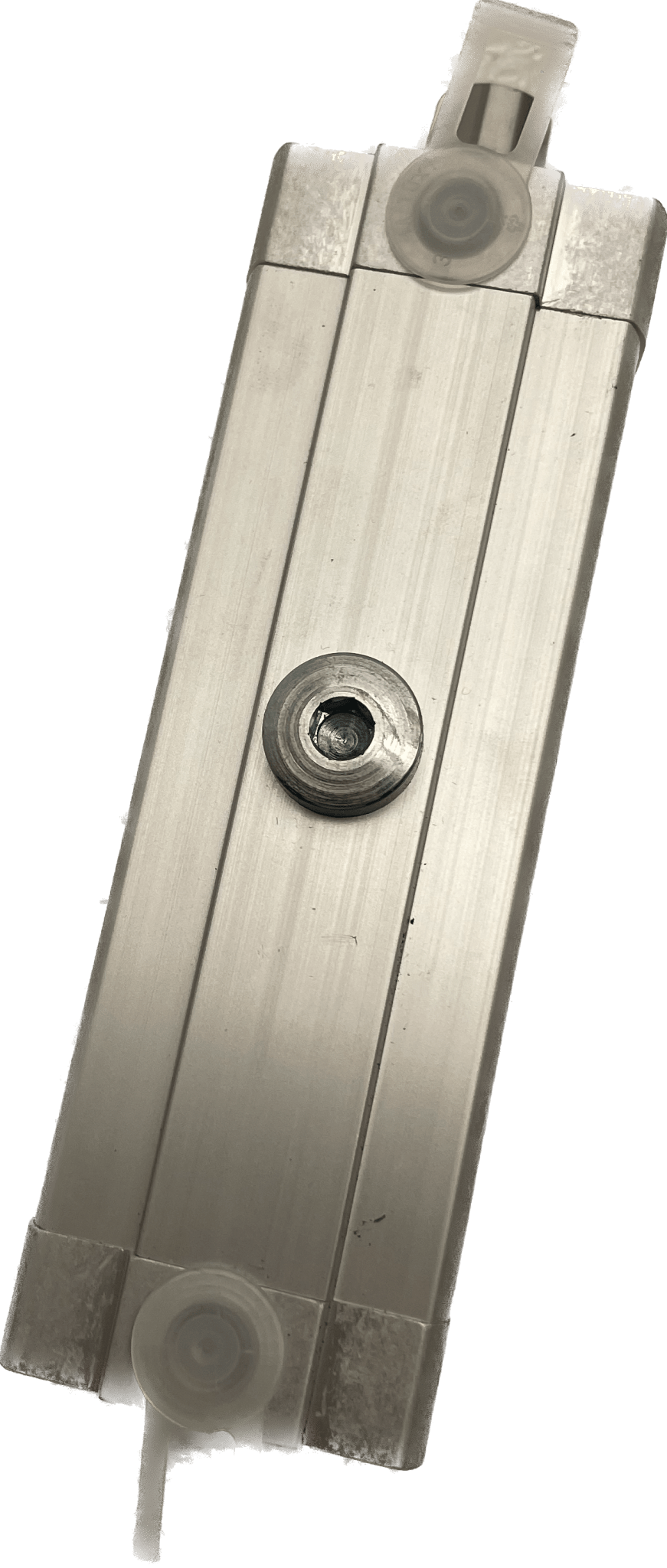

Festo linear swing clamp CLR-32-20-L-P-A-B

Party
unused stock
Linear swing clamp
CLR-32-20-L-P-A-B
543180
GTIN 4052568181536
total hub
38 mm
Kolben-Ø
32 mm
Piston rod thread
M8
Swivel angle
90 degrees +/- 2 degrees
Spannhub
20 mm
damping
elastic damping rings/plates on both sides
Installation position
any
Structural design
Pistons
Piston rod
Cylinder tube
Position detection
for proximity switches
Panning direction
links
Symbol
00991217
operating pressure
2 bar ... 10 bar
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B2-L
Ambient temperature
-10 °C ... 80 °C
Effective clamping force at 0.2 MPa (2 bar, 29 psi)
111 N
Effective clamping force at 0.4 MPa (4 bar, 58 psi)
216 N
Effective clamping force at 0.6 MPa (6 bar, 87 psi)
313 N
Max. tightening torque for clamping finger screw
24 Nm
Theoretical clamping force at 0.6 MPa (6 bar, 87 psi)
362 N
Product weight
765 g
Mounting type
optional:
with through hole
with internal thread
with accessories
Pneumatic connection
G1/8
Material collar screws
Stahl
Galvanised
Material cover
Aluminium wrought alloy
coated
Material seals
NBR
TPE-U(PU)
Housing material
Aluminium wrought alloy
smooth anodized
Piston rod material
high-alloy stainless steel
Cylinder tube material
Aluminium wrought alloy
smooth anodized
