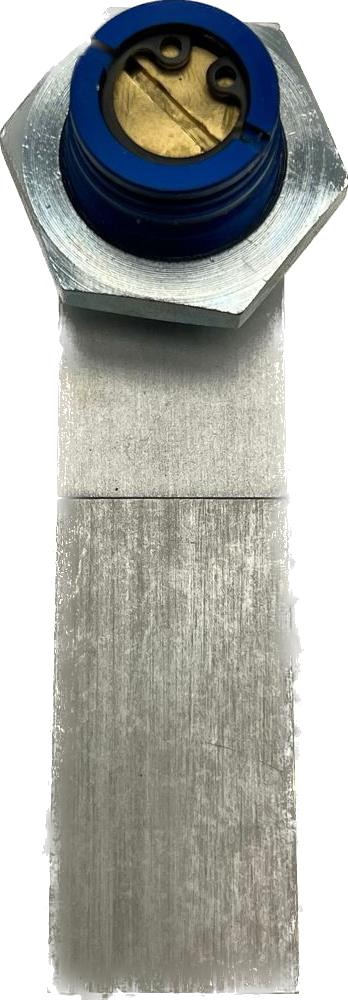

Festo VZOB-3-1/4 3489

Party
opened original packaging
Time delay valve
VZOB-3-1/4
3489
GTIN 4052568110321
Symbol
00995773
operating pressure
0 MPa ... 1 MPa
operating pressure
0 bar ... 10 bar
Normal nominal flow
600 l/min
Adjustable delay time
0 s ... 30 s
Explosion protection
Zone 1 (ATEX)
Zone 2 (ATEX)
Zone 21 (ATEX)
Zone 22 (ATEX)
Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
Note on the operating/control medium
Oiled operation possible (required for further operation)
LABS compliance
VDMA24364-B2-L
Mounting type
with through hole
Pneumatic connection
G1/8
G1/4
Material note
RoHS konform
