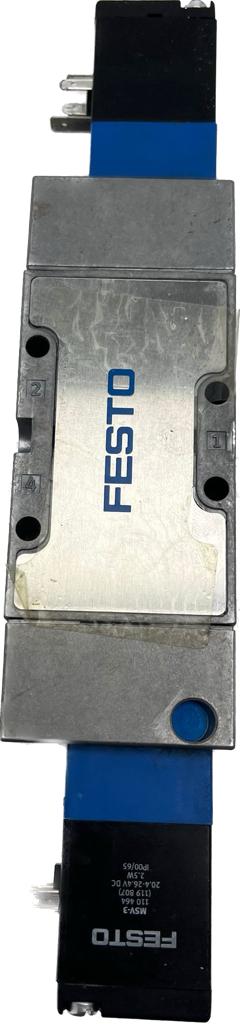

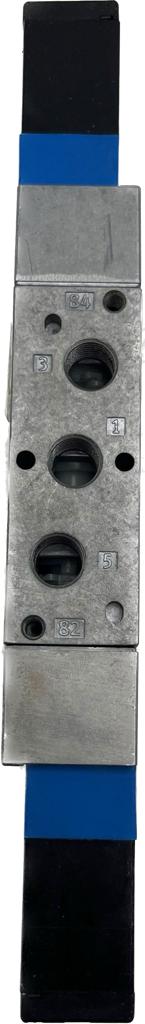

Festo MVH-5/3E-1/4-B 19139

Party
OVP
magnetic valve
MVH-5/3E-1/4-B
19139
GTIN 4052568009366
Valve function
5/3 vented
Actuation type
electric
Width
32 mm
Normal nominal flow
1600 l/min
Pneumatic work connection
G1/4
operating pressure
0.3 MPa ... 1 MPa
operating pressure
3 bar ... 10 bar
Structural design
Piston slide
Reset type
mechanical spring
Nominal diameter
10 mm
Grid dimension
33 mm
Exhaust air function
throttleable
Sealing principle
soft
Installation position
any
Manual override
tentative
Tax type
pre-controlled
Control air supply
intern
Flow direction
not reversible
Symbol
00991036
Coverage
positive coverage
b-value
0.38
C-value
6.35 l/sbar
Max. switching frequency
3 Hz
Switching time off
38 ms
Switching time on
36 ms
Switching time at
46 ms
Max. positive test pulse at 0 signal
2200 µs
Max. negative test pulse with 1 signal
3700 µs
Coil characteristics
24 V DC: 2,5 W
Permissible voltage fluctuations
+/- 10 %
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on operating/ste
