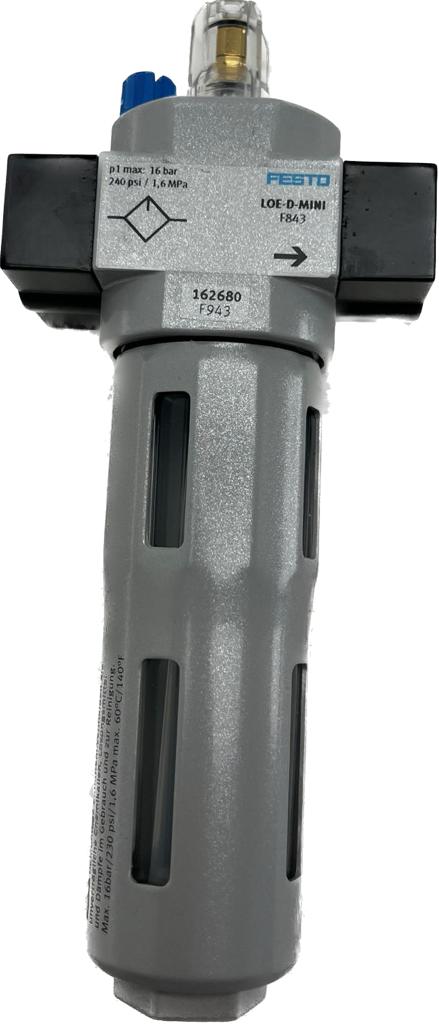

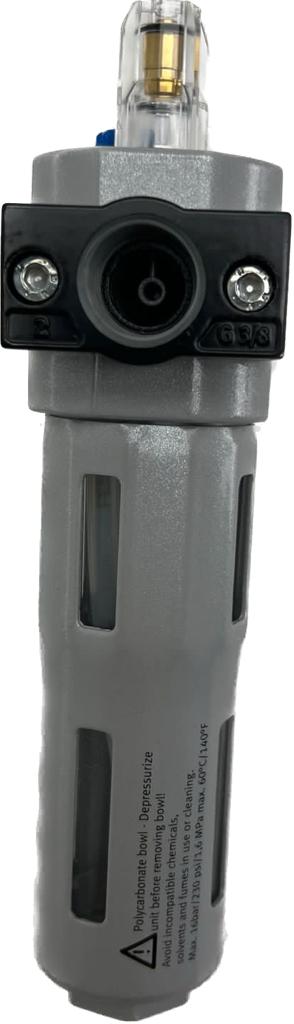

Festo LOE-3/8-D-MINI 162680

Party
OVP
He will die
LOE-3/8-D-MINI
162680
GTIN 4052568072414
Size
Mini
model series
D
Installation position
vertical +/- 5°
Structural design
Proportional standard mist lubricator
Max
45 cm³
Shell protection
Metal protective basket
Symbol
00991532
operating pressure
0 bar ... 16 bar
Minimum flow for oiler function
3 l/min
Normal nominal flow
2700 l/min
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Inert Gas
Note on the operating/control medium
Oiled operation not possible
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Storage temperature
-10 °C ... 60 °C
Air purity class at the exit
Compressed air according to ISO 8573-1:2010 [7:4:-]
Inert Gas
Medium temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
270 g
Mounting type
with accessories
Pneumatic connection 1
G3/8
Pneumatic connection 2
G3/8
Material note
RoHS konform
Shell material
PC
