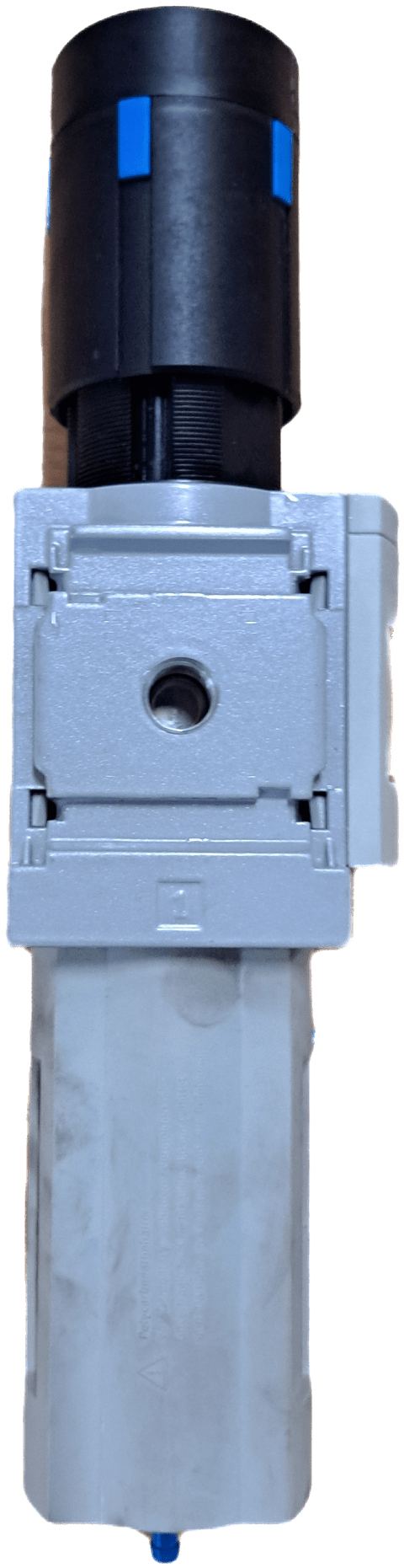

Festo filter control valve MS6-LFR-1/4-D7-ERM-AS

Party
unused stock
Filter-Control valve
MS6-LFR-1/4-D7-ERM-AS
529208
Size
6
model series
MS
Actuation lock
Rotary knob with locking mechanism
lockable with accessories
Installation position
vertical +/- 5°
Filter fineness
40 µm
Condensate tray
manually rotating
Structural design
Filter regulator with pressure gauge
Max. Condensation mix
38 ml
Control function
Output pressure constant
with secondary ventilation
Shell protection
Plastic protective basket
Symbol
00991589
Pressure display
with pressure gauge
operating pressure
0.08 MPa ... 2 MPa
operating pressure
0.8 bar ... 20 bar
Pressure control range
0.5 bar ... 12 bar
Max. Druckhysterese
0.025 MPa
Max. Druckhysterese
0.25 bar
Max. Druckhysterese
3.625 psi
Normal nominal flow
2500 l/min
Operating medium
Compressed air according to ISO 8573-1:2010 [-:4:-]
Inert Gas
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Storage temperature
-10 °C ... 60 °C
Food suitability
see extended material information
Air purity class at the exit
Compressed air according to ISO 8573-1:2010 [7:4:4]
Medium temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
875 g
Mounting type
optional:
Front panel installation
Cable installation
with accessories
Pneumatic connection 1
G1/4
Pneumatic connection 2
G1/4
Material note
RoHS konform
Material control panel
Well
POM
Material seals
NBR
Material filter
ON
Housing material
Aluminium die casting
Membrane material
NBR
Shell material
PC
Material separator plate
POM
