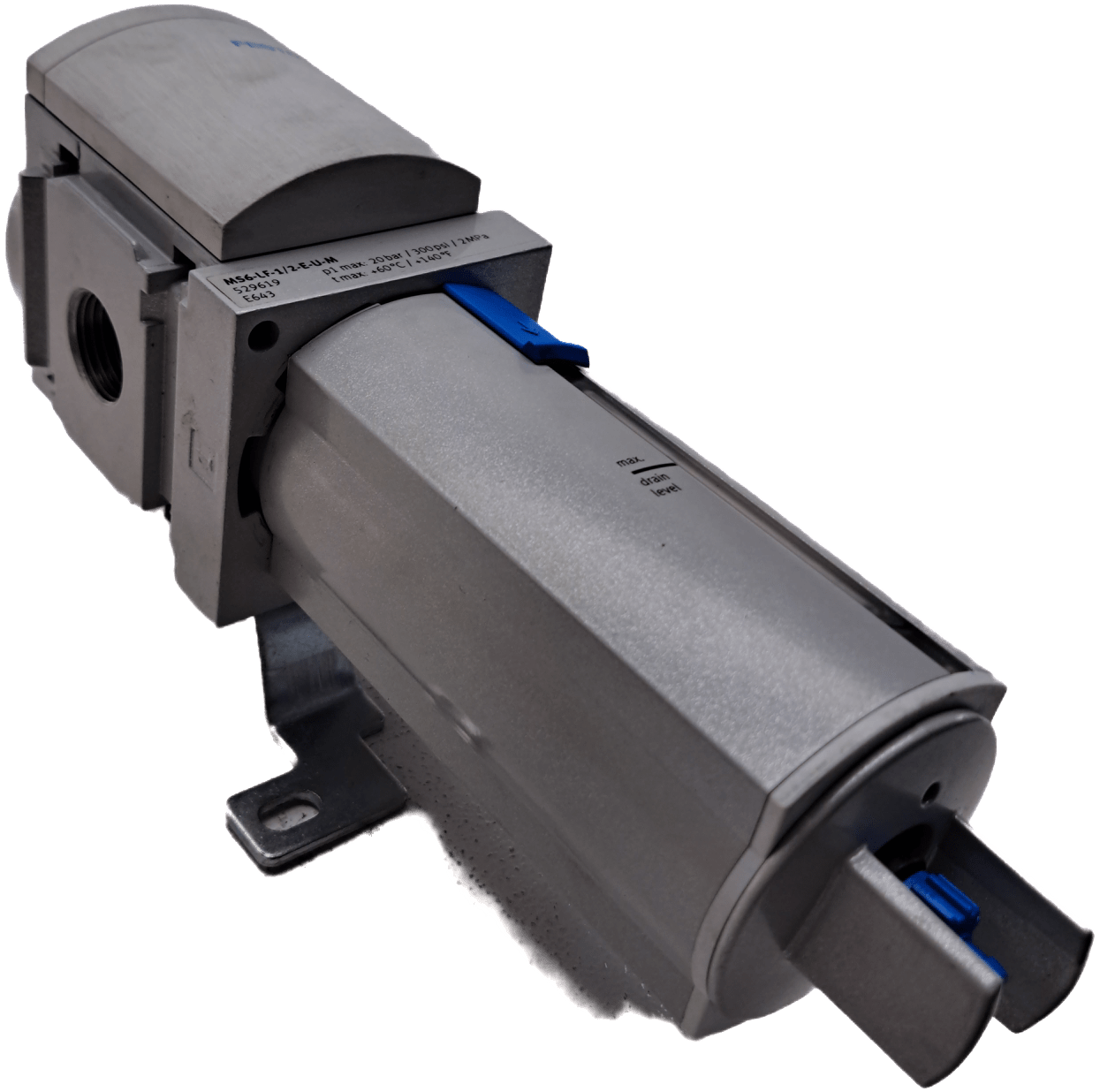

Festo Filter MS6-LF-1/2-EUM

unused stock
Filter
MS6-LF-1/2-EUM
529619
Size
6
model series
MS
Installation position
vertical +/- 5°
Filter fineness
40 µm
Condensate tray
manually rotating
Structural design
Sinter filter with centrifugal separator
Max. Condensation mix
38 ml
Shell protection
integrated as a metal shell
Symbol
00991519
operating pressure
0 bar ... 20 bar
Normal nominal flow
4100 l/min
Operating medium
Compressed air according to ISO 8573-1:2010 [-:9:-]
Inert Gas
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Storage temperature
-10 °C ... 60 °C
Food suitability
see extended material information
Air purity class at the exit
Compressed air according to ISO 8573-1:2010 [7:8:4]
Medium temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
820 g
Mounting type
optional:
Cable installation
with accessories
Pneumatic connection 1
G1/2
Pneumatic connection 2
G1/2
Material note
RoHS konform
Material seals
NB
