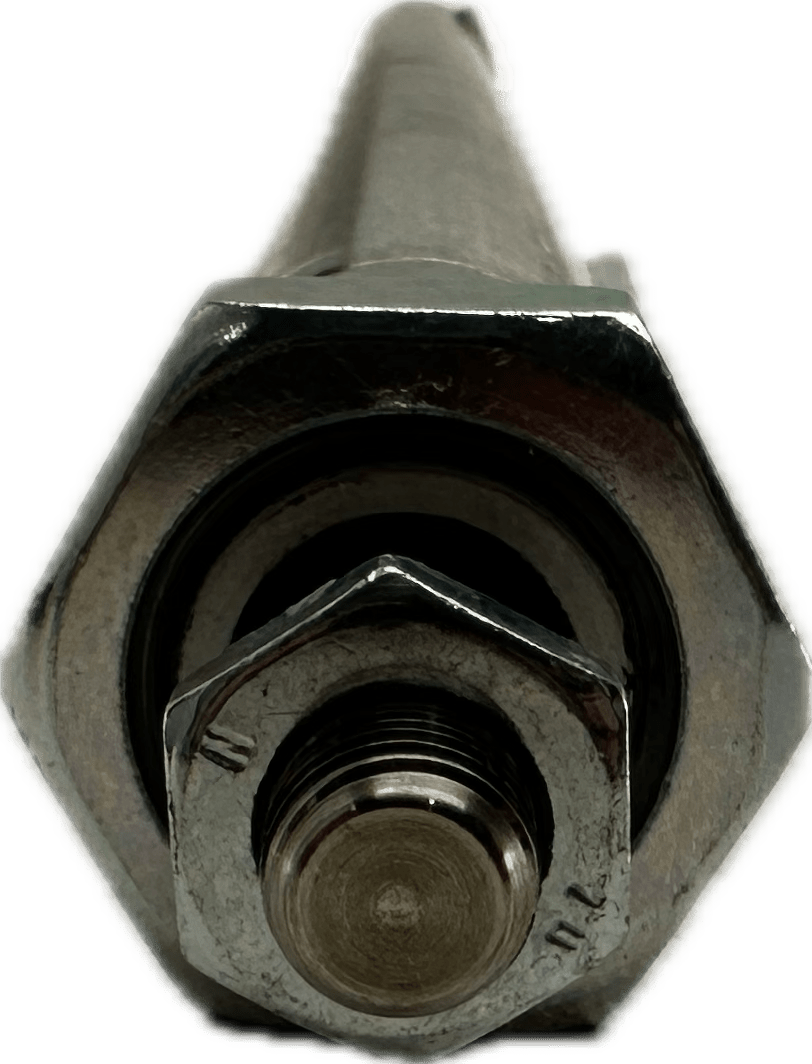

Festus DSNU-25-400-P-A 35191

OVP
Standard cylinder
DSNU-25-400-P-A
35191
GTIN 4052568115579
Hub
400 mm
Kolben-Ø
25 mm
Piston rod thread
M10x1,25
damping
elastic damping rings/plates on both sides
Installation position
any
Complies with standard
CETOP RP 52 P
ISO 6432
Piston rod end
External thread
Structural design
Pistons
Piston rod
Cylinder tube
Position detection
for proximity switches
Symbol
00991217
variants
one-sided piston rod
operating pressure
0.1 MPa ... 1 MPa
operating pressure
1 bar ... 10 bar
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Cleanroom class
Class 6 according to ISO 14644-1
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.3 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
247.4 N
Theoretical force at 0.6 MPa (6
