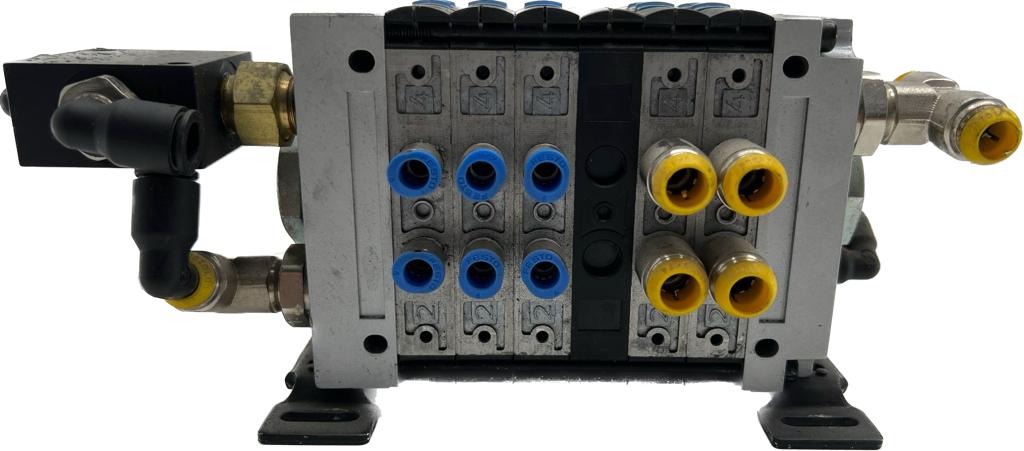

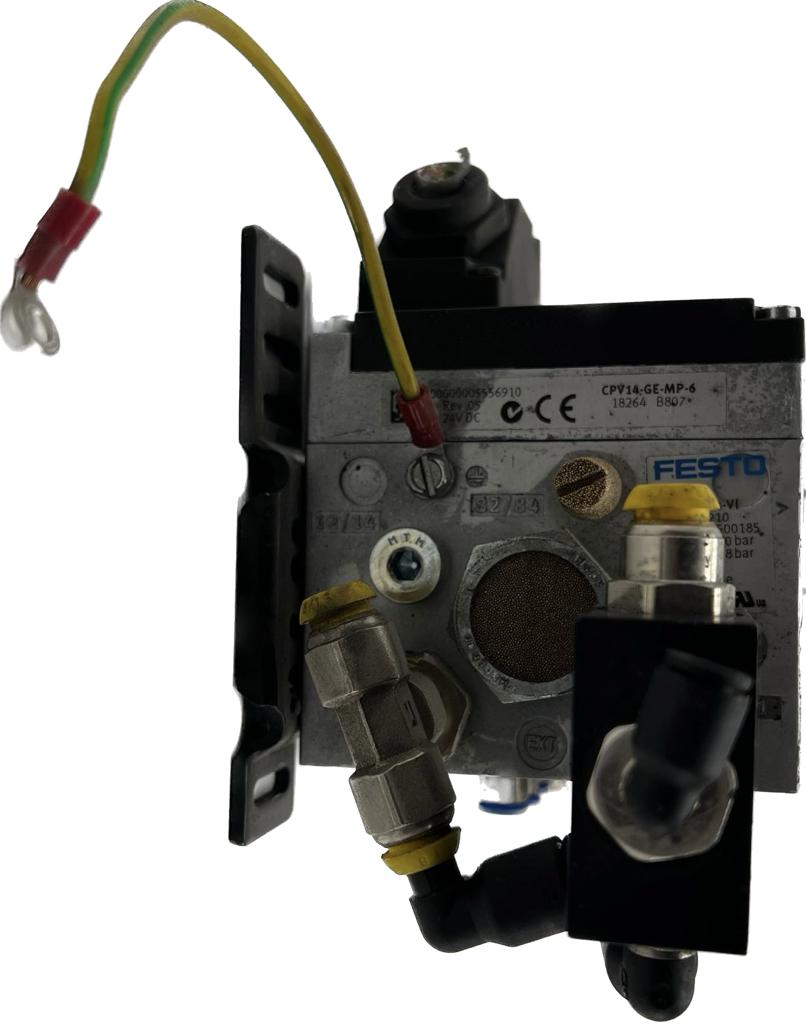

Festo CPV14-VI / 10P-14-6C-MP-R-Z-3CT2I+U

Party
needed
Ventilinsel CPV14
Part number:18210
Bestellcode 1 :10P-14-6C-MP-R-Z-3CTII+U
Basic information
Valve battery, CPV, pneumatic part 10P Valve battery, CPV
Size 14 Size 14
Number of valve positions 6 valve positions
Working ports C Thread on working port G1/8
Electrical connection MP Electrical multipole
Manual override R Manual override detenting
Pneumatic supply Z External control supply air, supply air on both sides, ducted exhaust air
Valve position 1
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 2
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 3
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 4
Fitting valve location T plate with channel separation 1/11 closed
Valve position 5
Equipment for valve position I 2x2/2-way valve, rest position 1 x closed, 1 x open
Valve position 6
Equipment for valve position I 2x2/2-way valve, rest position 1 x closed, 1 x open
Accesories
