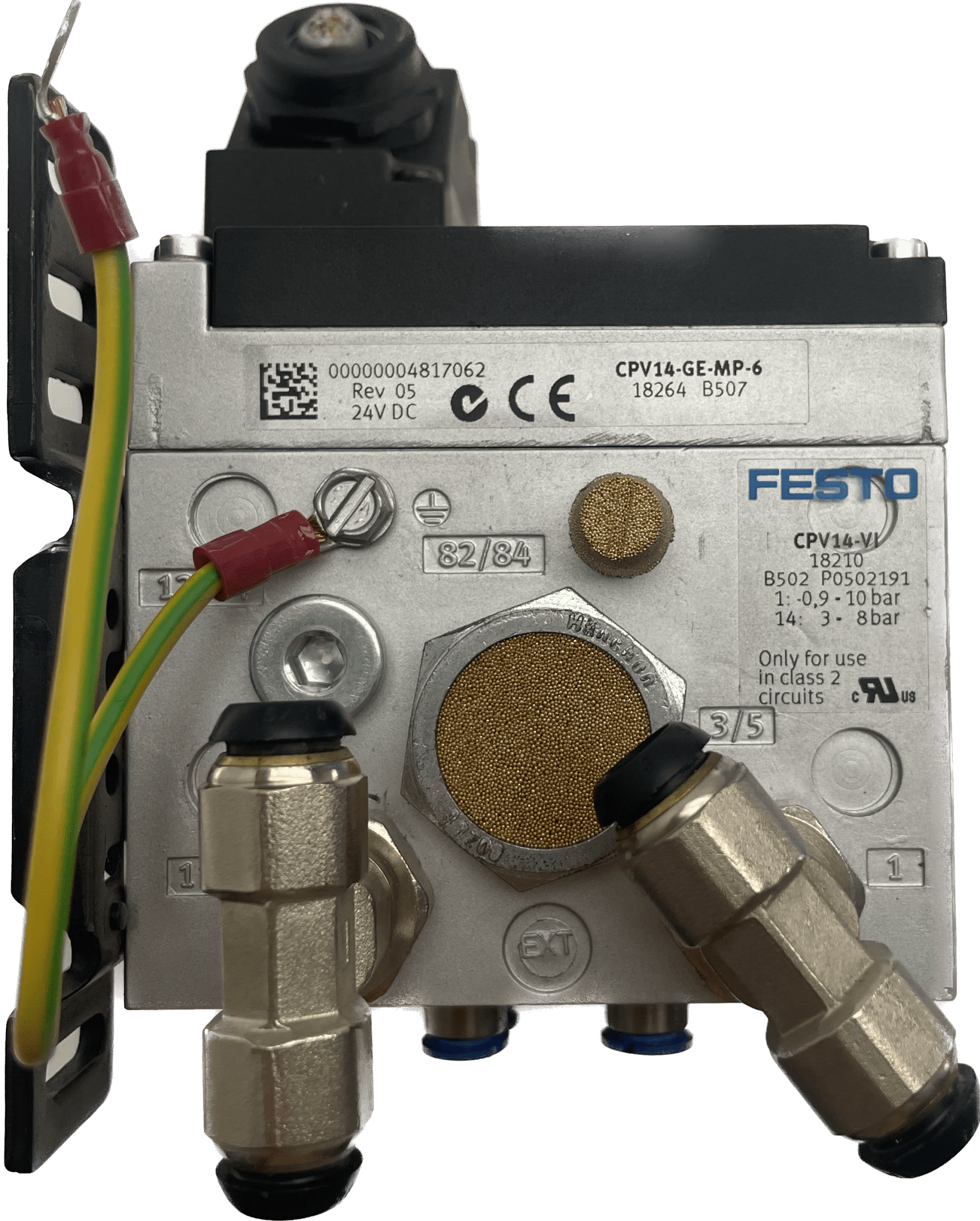

Festo Ventilinsel CPV14-VI / 10P-14-6C-MP-R-Z-4C2L+U
plus VAT. plus shipping and handling
Party
needed
Ventilinsel
CPV14-VI
18210
Electric control
AS-Interface
CPI-Installationssystem
Single connection
Feldbus
Multipol
Electrical I/O system
and
Island type
10
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Medium temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Storage temperature
-20 °C ... 40 °C
Protection class
IP65
Korrosionsbeständigkeitsklasse KBK
1 - low corrosion stress
2 - moderate corrosion stress
operating pressure
-0.09 MPa ... 1 MPa
operating pressure
-0.9 bar ... 10 bar
Note on operating pressure
0 - 0.8 MPa with external control air
0 - 8 bar with external control air
Control pressure
0.3 MPa ... 8 MPa
Control pressure
3 bar ... 80 bar
LABS compliance
VDMA24364-B1/B2-L
CE mark (see declaration of conformity)
according to EU EMC Directive
according to EU explosion protection directive (ATEX)
KC sign
KC-EMV
Permit
RCM Mark
c UL us - Recognized (OL)
Explosion protection
Class I, Div. 2 (US)
Zone 2 (ATEX)
ATEX Category Gas
II 3G
Explosion protection approval outside the EU
NEC 500 Class I, Div. 2
Ex-ignition protection type gas
Ex nA IIC T4 X Gc
Ex ambient temperature
-5°C <= Ta <= +50°C
Material note
RoHS konform
Valve island structure
Festraster
Max. number of valve positions
8
Max. number of valve functions
16
Max. number of pressure zones
2
Actuation type
electric
Valve function
2x2/2 closed monostable
2x2/2 open/closed monostable
2x3/2 closed monostable
2x3/2 open monostable
2x3/2 open/closed monostable
5/2 bistable
5/2 monostable
Vacuum suction nozzle
Vacuum suction nozzle + 2/2 closed monostable
Structural design
Piston slide
Sealing principle
soft
Valve size
14 mm
Control air supply
extern
intern
Max. normal nominal flow
800 l/min at 14 mm
Nominal diameter
6 mm
Vacuum suitability
and
Pneumatic work connection
G1/8
QS-6
QS-8
QS-1/8
QS-1/4
Pneumatic connection 1
Collective connection
Pneumatic connection 2
G1/8
Pneumatic connection 3
Collective connection
Pneumatic connection 4
G1/8
Control air connection 12/14
Collective connection
Control exhaust air connection 82/84
Collective connection
Signal status display
LED
Nominal operating voltage DC
24 V
Valve battery, CPV, pneumatic part 10P Valve battery, CPV
Size 14 Size 14
Number of valve positions 6 valve positions
Working ports C Thread on working port G1/8
Electrical connection MP Electrical multipole
Manual override R Manual override detenting
Pneumatic supply Z External control supply air, supply air on both sides, ducted exhaust air
Valve position 1
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 2
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 3
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 4
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 5
Equipment for valve position L Cover plate for valve position
Valve position 6
Equipment for valve position L Cover plate for valve position
Accesories
Mounting U Wall mounting
needed
Ventilinsel
CPV14-VI
18210
Electric control
AS-Interface
CPI-Installationssystem
Single connection
Feldbus
Multipol
Electrical I/O system
and
Island type
10
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Medium temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Storage temperature
-20 °C ... 40 °C
Protection class
IP65
Korrosionsbeständigkeitsklasse KBK
1 - low corrosion stress
2 - moderate corrosion stress
operating pressure
-0.09 MPa ... 1 MPa
operating pressure
-0.9 bar ... 10 bar
Note on operating pressure
0 - 0.8 MPa with external control air
0 - 8 bar with external control air
Control pressure
0.3 MPa ... 8 MPa
Control pressure
3 bar ... 80 bar
LABS compliance
VDMA24364-B1/B2-L
CE mark (see declaration of conformity)
according to EU EMC Directive
according to EU explosion protection directive (ATEX)
KC sign
KC-EMV
Permit
RCM Mark
c UL us - Recognized (OL)
Explosion protection
Class I, Div. 2 (US)
Zone 2 (ATEX)
ATEX Category Gas
II 3G
Explosion protection approval outside the EU
NEC 500 Class I, Div. 2
Ex-ignition protection type gas
Ex nA IIC T4 X Gc
Ex ambient temperature
-5°C <= Ta <= +50°C
Material note
RoHS konform
Valve island structure
Festraster
Max. number of valve positions
8
Max. number of valve functions
16
Max. number of pressure zones
2
Actuation type
electric
Valve function
2x2/2 closed monostable
2x2/2 open/closed monostable
2x3/2 closed monostable
2x3/2 open monostable
2x3/2 open/closed monostable
5/2 bistable
5/2 monostable
Vacuum suction nozzle
Vacuum suction nozzle + 2/2 closed monostable
Structural design
Piston slide
Sealing principle
soft
Valve size
14 mm
Control air supply
extern
intern
Max. normal nominal flow
800 l/min at 14 mm
Nominal diameter
6 mm
Vacuum suitability
and
Pneumatic work connection
G1/8
QS-6
QS-8
QS-1/8
QS-1/4
Pneumatic connection 1
Collective connection
Pneumatic connection 2
G1/8
Pneumatic connection 3
Collective connection
Pneumatic connection 4
G1/8
Control air connection 12/14
Collective connection
Control exhaust air connection 82/84
Collective connection
Signal status display
LED
Nominal operating voltage DC
24 V
Valve battery, CPV, pneumatic part 10P Valve battery, CPV
Size 14 Size 14
Number of valve positions 6 valve positions
Working ports C Thread on working port G1/8
Electrical connection MP Electrical multipole
Manual override R Manual override detenting
Pneumatic supply Z External control supply air, supply air on both sides, ducted exhaust air
Valve position 1
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 2
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 3
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 4
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 5
Equipment for valve position L Cover plate for valve position
Valve position 6
Equipment for valve position L Cover plate for valve position
Accesories
Mounting U Wall mounting
Spezifikationen
Diese Informationen werden zeitnah ergänzt.
Einsatzbereiche
Diese Informationen werden zeitnah ergänzt.
Lieferumfang
Diese Informationen werden zeitnah ergänzt.
Download Data Sheet
Select options
Festo Ventilinsel CPV14-VI / 10P-14-6C-MP-R-Z-4C2L+U
Offer€336,64
Regular price
