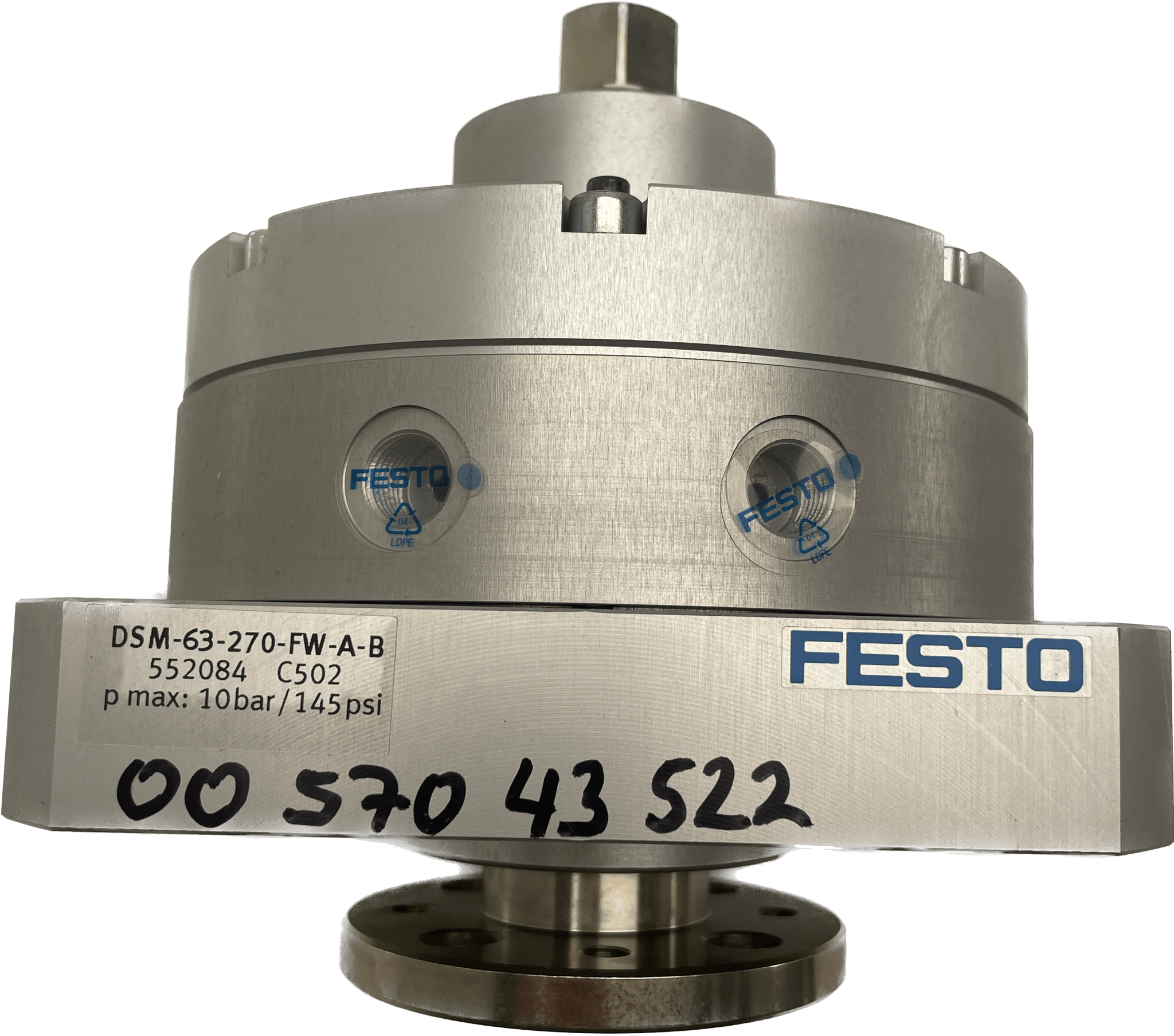

Festo swivel drive DSM-63-270-FW-A-B
plus VAT. plus shipping and handling
Party
unused stock
Swivel drive
DSM-63-270-FW-A-B
552084
GTIN 4052568193492
Size
63
Swivel angle
0 deg ... 270 deg
Installation position
any
functionality
double-acting
Structural design
Swing wing
Position detection
for proximity switches
Symbol
00991265
operating pressure
1.5 bar ... 10 bar
Max. swing frequency at 0.6 MPa (6 bar, 87 psi)
1.6 Hz
Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-10 °C ... 60 °C
Max. Axialkraft
500 N
Max. Radialkraft
500 N
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
40 Nm
Product weight
4475 g
Mounting type
with internal thread
Pneumatic connection
G1/4
Material note
RoHS konform
Drive shaft material
Stahl
nickel-plated
Material seals
TPE-U(PU)
Housing material
Aluminium wrought alloy
unused stock
Swivel drive
DSM-63-270-FW-A-B
552084
GTIN 4052568193492
Size
63
Swivel angle
0 deg ... 270 deg
Installation position
any
functionality
double-acting
Structural design
Swing wing
Position detection
for proximity switches
Symbol
00991265
operating pressure
1.5 bar ... 10 bar
Max. swing frequency at 0.6 MPa (6 bar, 87 psi)
1.6 Hz
Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-10 °C ... 60 °C
Max. Axialkraft
500 N
Max. Radialkraft
500 N
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
40 Nm
Product weight
4475 g
Mounting type
with internal thread
Pneumatic connection
G1/4
Material note
RoHS konform
Drive shaft material
Stahl
nickel-plated
Material seals
TPE-U(PU)
Housing material
Aluminium wrought alloy
Spezifikationen
Diese Informationen werden zeitnah ergänzt.
Einsatzbereiche
Diese Informationen werden zeitnah ergänzt.
Lieferumfang
Diese Informationen werden zeitnah ergänzt.
Download Data Sheet
Select options
Festo swivel drive DSM-63-270-FW-A-B
Offer€834,31
