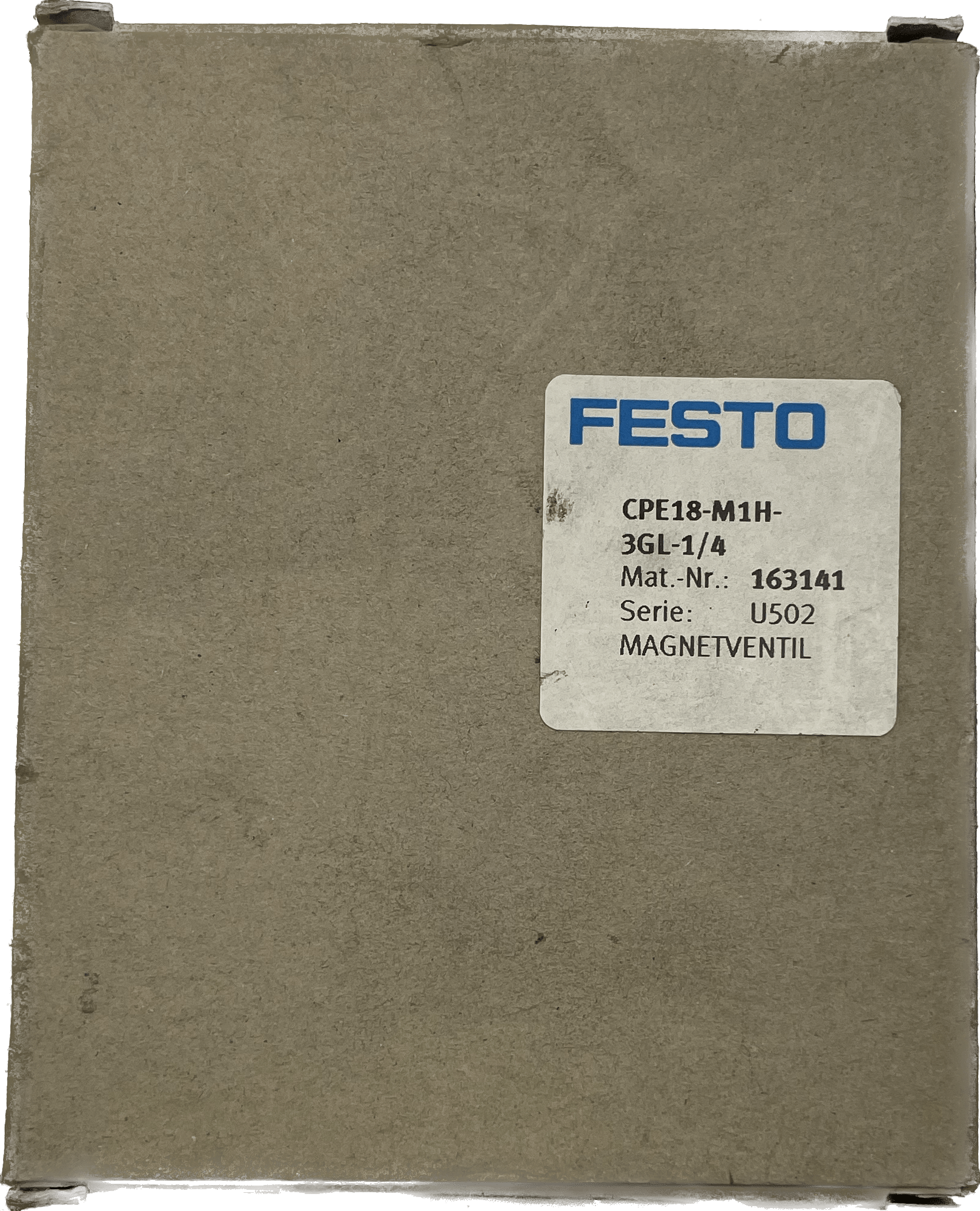

Festo Solenoid valve CPE18-M1H-3GL-1/4

Party
unused stock
magnetic valve
CPE18-M1H-3GL-1/4
163141
GTIN 4052568012854
Valve function
3/2 closed monostable
Actuation type
electric
Width
18 mm
Normal nominal flow
1300 l/min
Pneumatic work connection
G1/4
Operating voltage
24V DC
operating pressure
0.25 MPa ... 1 MPa
operating pressure
2.5 bar ... 10 bar
Structural design
Piston slide
Reset type
pneumatic spring
Permit
c UL us - Recognized (OL)
Maritime classification
see certificate
Protection class
IP65
with socket
according to IEC 60529
Nominal diameter
8 mm
Sealing principle
soft
Installation position
any
Manual override
with accessories locking
tentative
Tax type
pre-controlled
Control air supply
intern
Flow direction
not reversible
Symbol
00991655
Valve location marking
Shield bearer
Coverage
positive coverage
Switching time off
18 ms
Switching time on
28 ms
Duty cycle
100%
Max. positive test pulse at 0 signal
3300 µs
Max. negative test pulse with 1 signal
3100 µs
Coil characteristics
24 V DC: 1,5 W
Permissible voltage fluctuations
-15 % / +10 %
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Vibration resistance
Transport use test with severity level 2 according to FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 according to FN 942017-5 and EN 60068-2-27
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Medium temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
150 g
Electrical connection
Form C
Mounting type
with through hole
Control exhaust air connection 82
M5
Control air connection 12
M5
Pneumatic connection 1
G1/4
Pneumatic connection 2
G1/4
Pneumatic connection 3
G1/4
Material note
RoHS konform
Material seals
NBR
Housing material
Aluminium die casting
