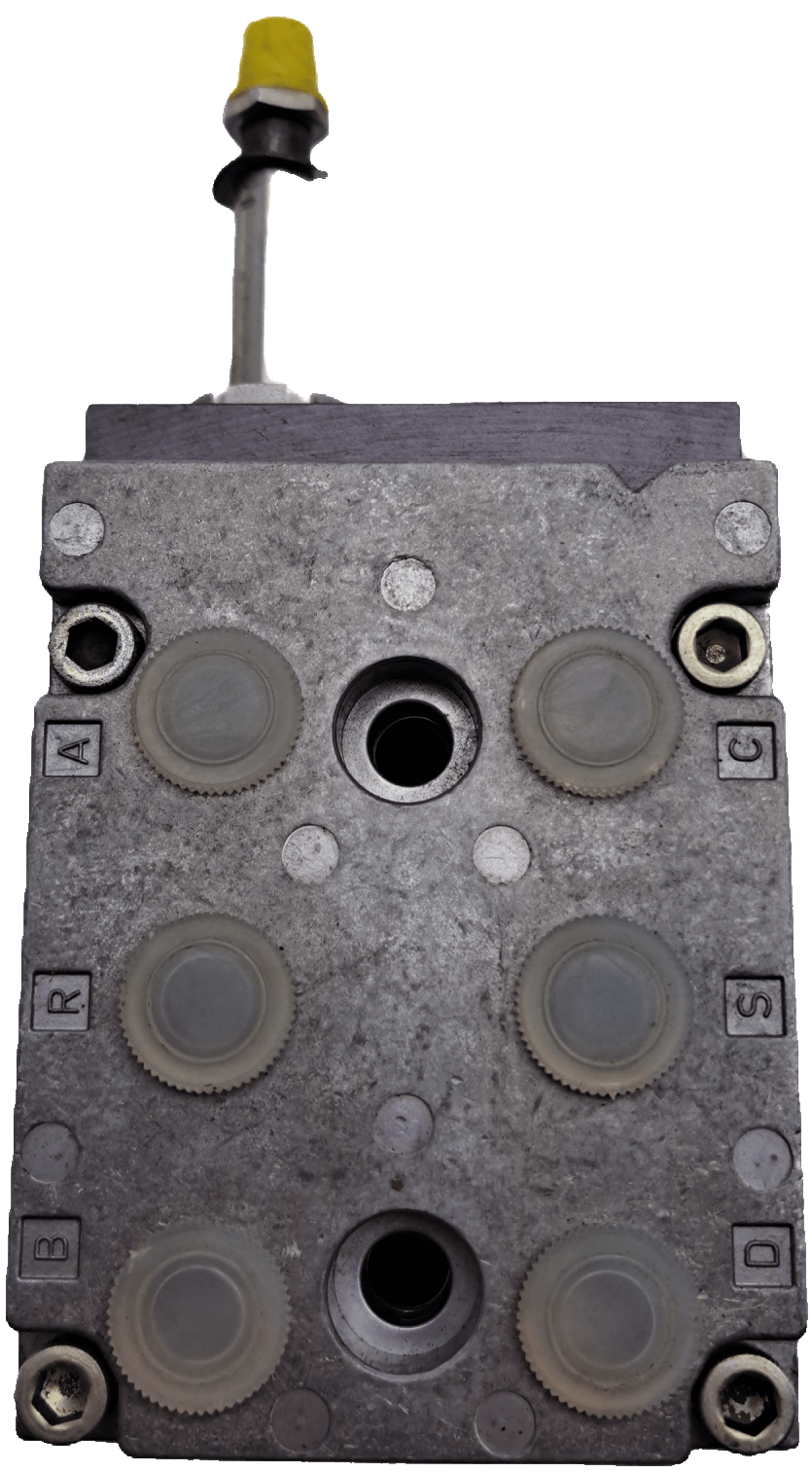

Festo Valve function 8/2 monostable MLC-8-3/8B

needed
MLC-8-3/8B
Valve function 8/2 monostable
Type of actuation electrical
Standard nominal flow rate 1,800 l/min
Operating pressure 2 ... 10 bar
Design structure Piston slide
Type of reset Air spring
Nominal size 9 mm
Sealing principle soft
Assembly position Vertical
Manual override None
Pilot air supply Internal
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation required
Medium temperature -5 ... 40 °C
Ambient temperature -10 ... 60 °C
Mounting type with through hole
Pneumatic connection, port 1 G3/8
Pneumatic connection, port 2 G3/8
Pneumatic connection, port 3 G3/8
Pneumatic connection, port 4 G3/8
Pneumatic connection, port 5 G3/8
Materials information for seals NBR
