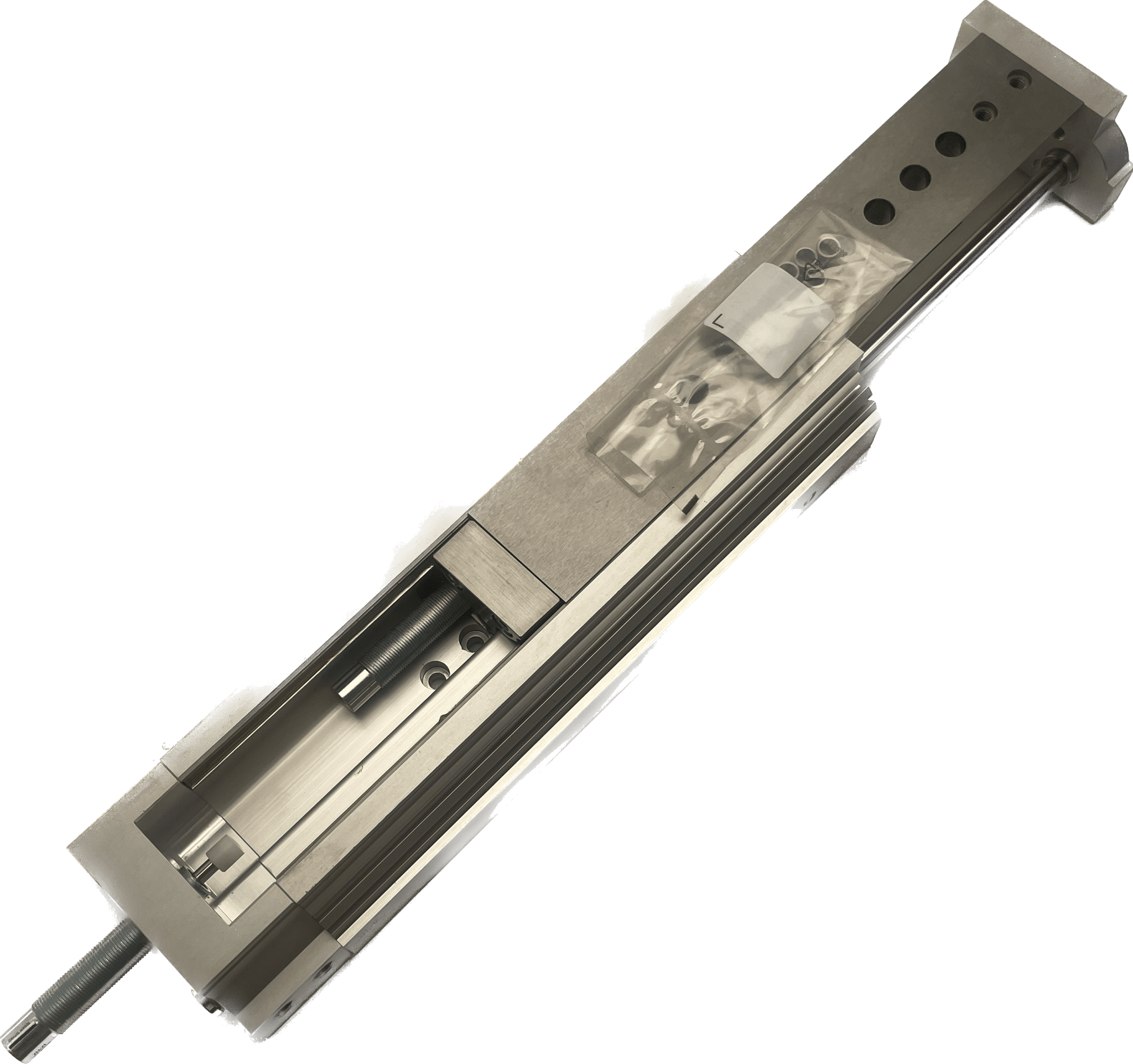

Festo mini slide DGSL-20-150-Y3A

Party
unused stock
Mini sledge
DGSL-20-150-Y3A
544028
GTIN 4052568183714
Hub
150 mm
Adjustable end position range / length at the front
88 mm
Adjustable end position range / length at the back
42 mm
Kolben-Ø
25 mm
Operating mode of the drive unit
yoke
damping
Shock absorbers progressive on both sides
Installation position
any
guide
Ball cage guide
Structural design
yoke
Pistons
Piston rod
Sleds
Position detection
for proximity switches
Symbol
00991263
operating pressure
0.1 MPa ... 0.8 MPa
operating pressure
1 bar ... 8 bars
Max. speed
0.8 m/s
Repeatability
±0,01 mm
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
0 °C ... 60 °C
Impact energy in the end positions
7 J
Damping length
17 mm
Max. Force Fy
4400 N
Max. Kraft Fz
4400 N
Max. Moment Mx
90 Nm
Max. Moment My
80 Nm
Max. Moment Mz
80 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
247 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
295 N
Moving mass
1566 g
Product weight
3728 g
Alternative connections
see product drawing
Mounting type
with through hole
Pneumatic connection
G1/8
Material note
RoHS konform
Material cover
Aluminium wrought alloy
Material seals
HNBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
