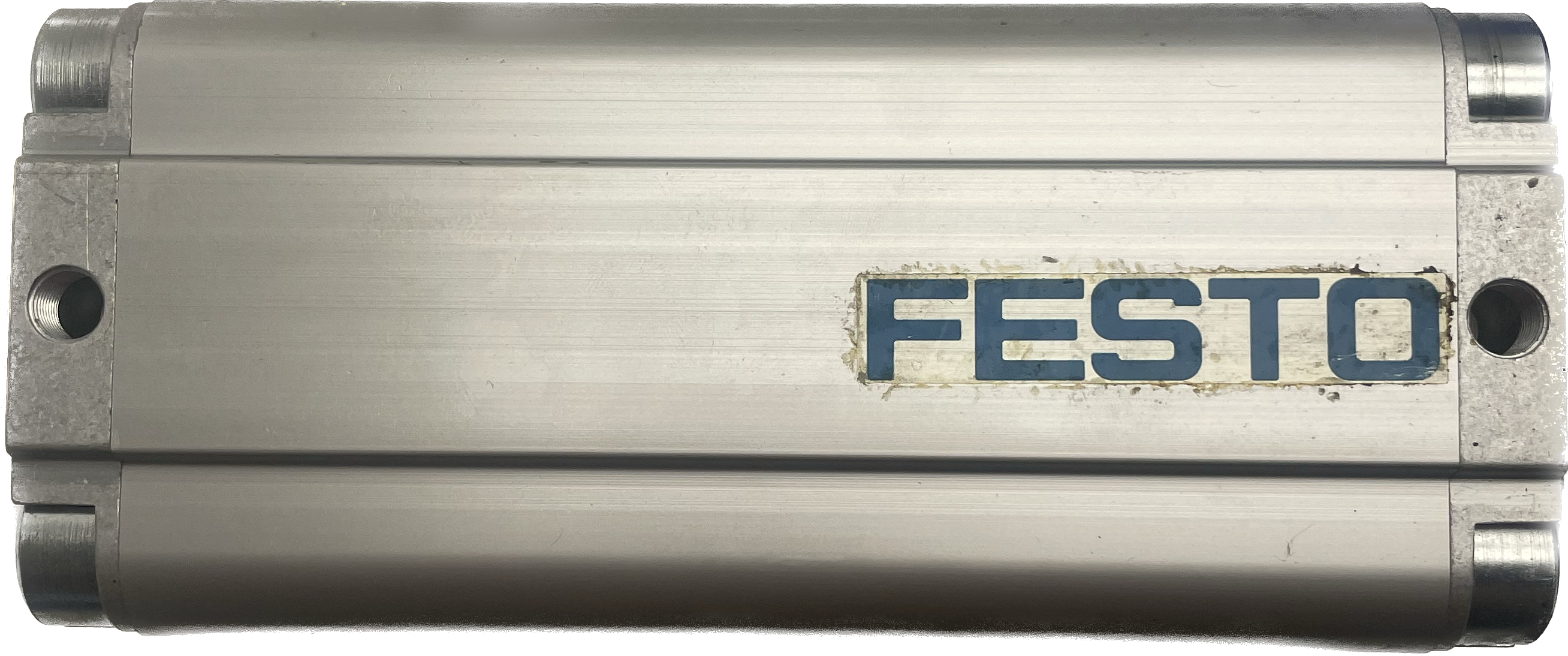

Festo Compact Cylinder ADVU-63-150-P-A

Party
unused stock
Compact cylinder
ADVU-63- -P-A
ADVU-63-150-P-A
156007
Hub
150 mm
Kolben-Ø
63 mm
damping
elastic damping rings/plates on both sides
Installation position
any
functionality
double-acting
Piston rod end
inner thread
Structural design
Pistons
Piston rod
Position detection
for proximity switches
Symbol
00991217
variants
one-sided piston rod
operating pressure
0.06 MPa ... 1 MPa
operating pressure
6 bar ... 10 bar
operating pressure
8.7 psi ... 145 psi
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.7 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
1750 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
1870 N
Moving mass at 0 mm stroke
134 g
Additional moving mass per 10 mm stroke
16 g
Basic weight at 0 mm stroke
1059 g
Weight surcharge per 10 mm stroke
107 g
Mounting type
optional:
with through hole
with accessories
Pneumatic connection
G1/8
Material collar screws
galvanized steel
Material cover
Aluminium wrought alloy
Material Dynamic seals
NBR
TPE-U(PU)
Piston rod material
high-alloy steel
Cylinder tube material
Aluminium wrought alloy
