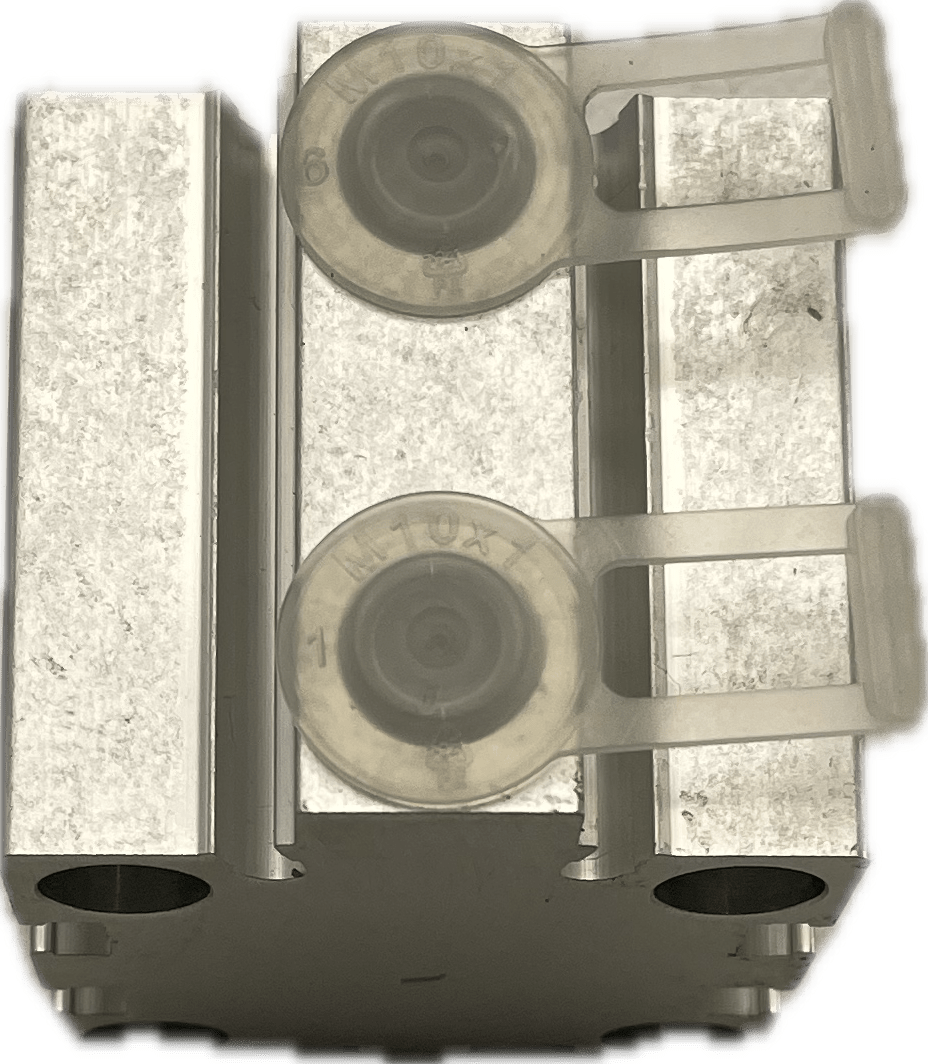

Festo ADVC-32-10-I-P-A 188205
plus VAT. plus shipping and handling
unused stock
Short stroke cylinder
ADVC-32-10-I-P-A
188205
GTIN 4052568077907
Hub
10 mm
Kolben-Ø
32 mm
Based on standard
ISO 6431
Lochbild
VDMA24562
damping
elastic damping rings/plates on both sides
Installation position
any
functionality
double-acting
Structural design
Pistons
Piston rod
Position detection
for proximity switches
Symbol
00991217
operating pressure
0.1 MPa ... 1 MPa
operating pressure
1 bar ... 10 bar
operating pressure
14.5 psi ... 145 psi
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
1 - low corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-20 °C ... 80 °C
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
483 N
Moving mass
55 g
Moving mass at 0 mm stroke
45 g
Additional moving mass per 10 mm stroke
10 g
P
Spezifikationen
Diese Informationen werden zeitnah ergänzt.
Einsatzbereiche
Diese Informationen werden zeitnah ergänzt.
Lieferumfang
Diese Informationen werden zeitnah ergänzt.
Download Data Sheet
Select options
Festo ADVC-32-10-I-P-A 188205
Offer€82,49
Regular price
