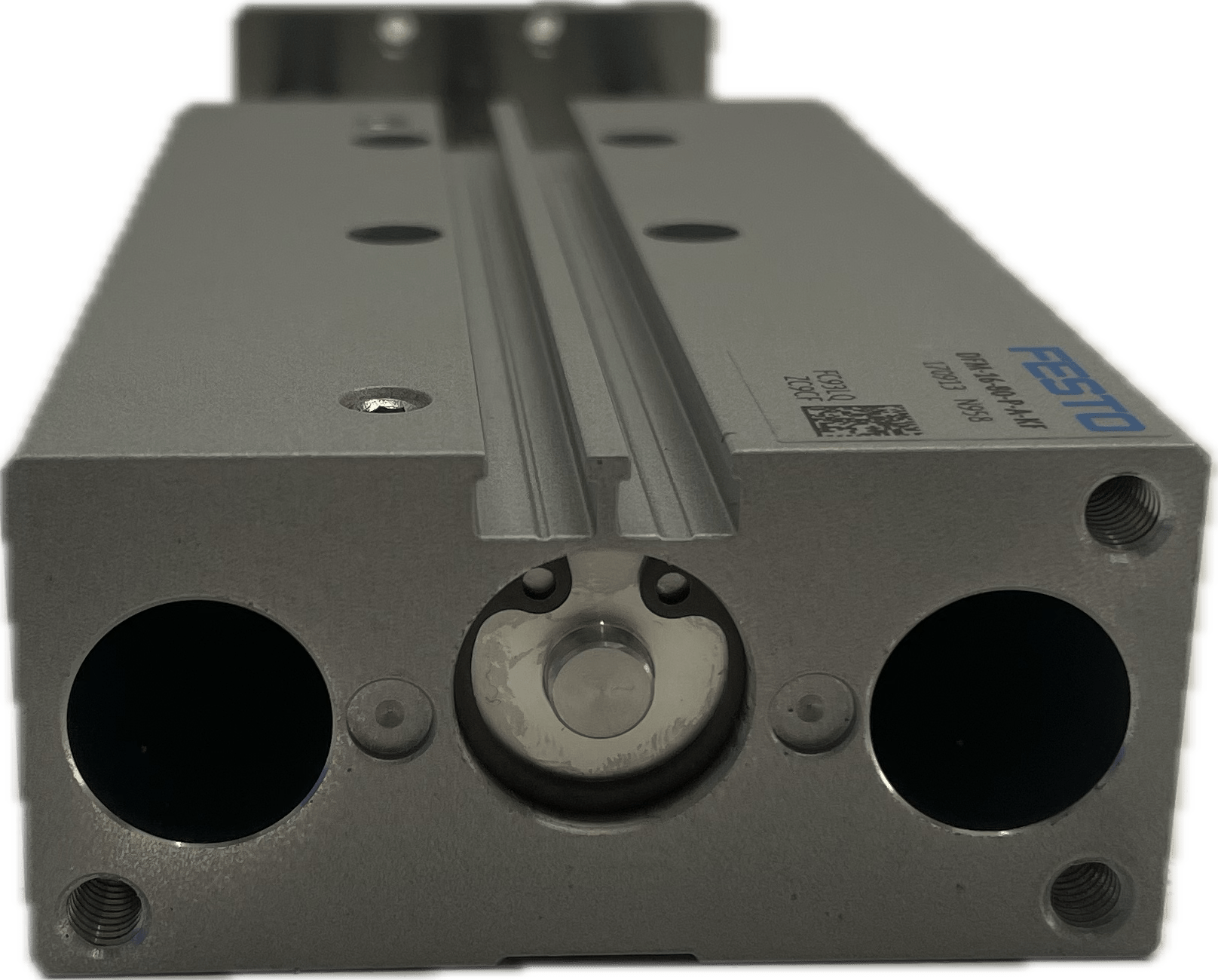

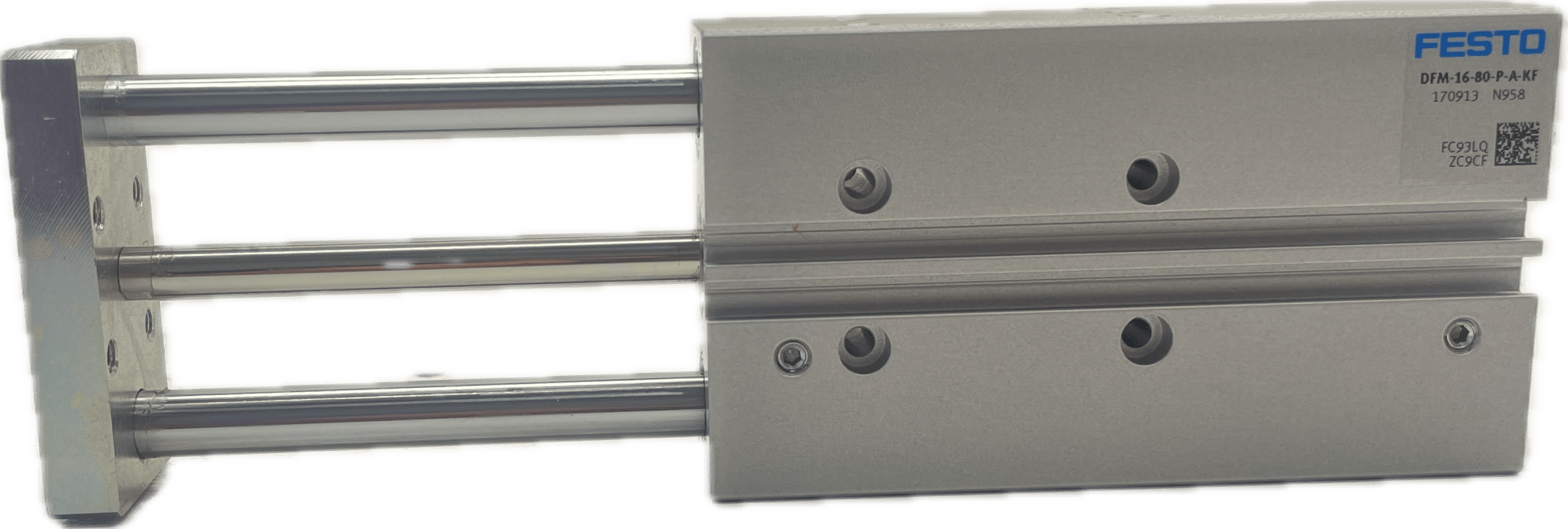

Festo DFM-16-80-P-A-KF 170913

unused stock
Guide cylinder
DFM-16-80-P-A-KF
170913
GTIN 4052568140052
Distance from the center of gravity of the payload to the yoke plate xs
50 mm
Hub
80 mm
Kolben-Ø
16 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Installation position
any
guide
Recirculating ball bearing guide
Structural design
guide
Position detection
for proximity switches
Symbol
00991737
operating pressure
0.2 MPa ... 1 MPa
operating pressure
2 bar ... 10 bar
Max. speed
0.8 m/s
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-5 °C ... 60 °C
Impact energy in the end positions
0.15 J
Max. Force Fy
778 N
Max. force Fy static
830 N
Max. Kraft Fz
778 N
Max. force Fz static
830 N
Max. Moment Mx
17.9 Nm
Max.
