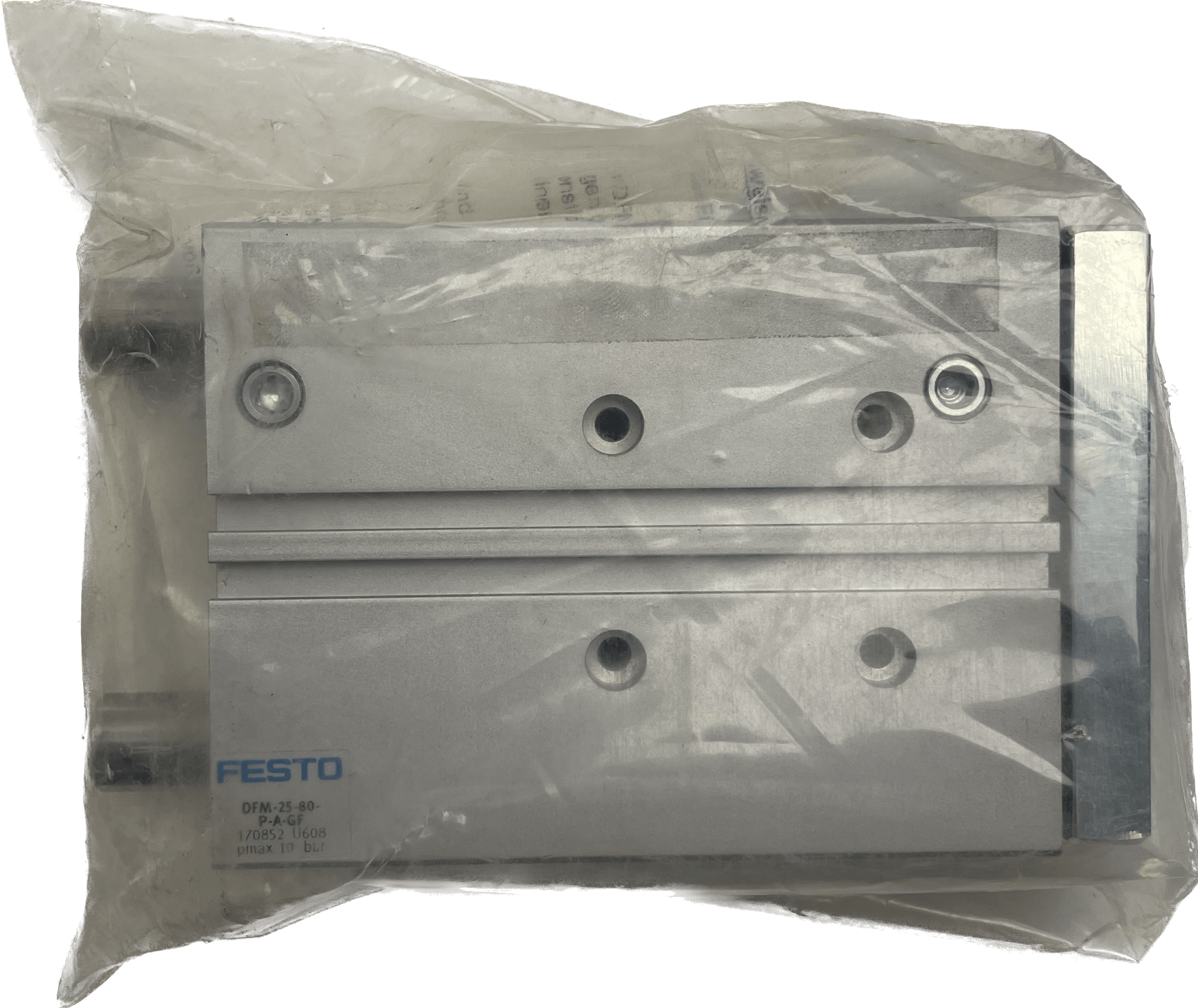

Festo guide cylinder DFM-25-80-P-A-GF

unused stock
Guide cylinder
DFM-25-80-P-A-GF
170852
GTIN 4052568013189
Distance from the center of gravity of the payload to the yoke plate xs
50 mm
Hub
80 mm
Kolben-Ø
25 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Installation position
any
guide
Sliding guide
Structural design
guide
Position detection
for proximity switches
Symbol
00991737
operating pressure
0.15 MPa ... 1 MPa
operating pressure
1.5 bar ... 10 bar
Max. speed
0.8 m/s
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
1 - low corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.3 J
Max. Force Fy
810.7 N
Max. force Fy static
810.7 N
Max. Kraft Fz
810.7 N
Max. force Fz static
810.7 N
Max. Moment Mx
27.56
