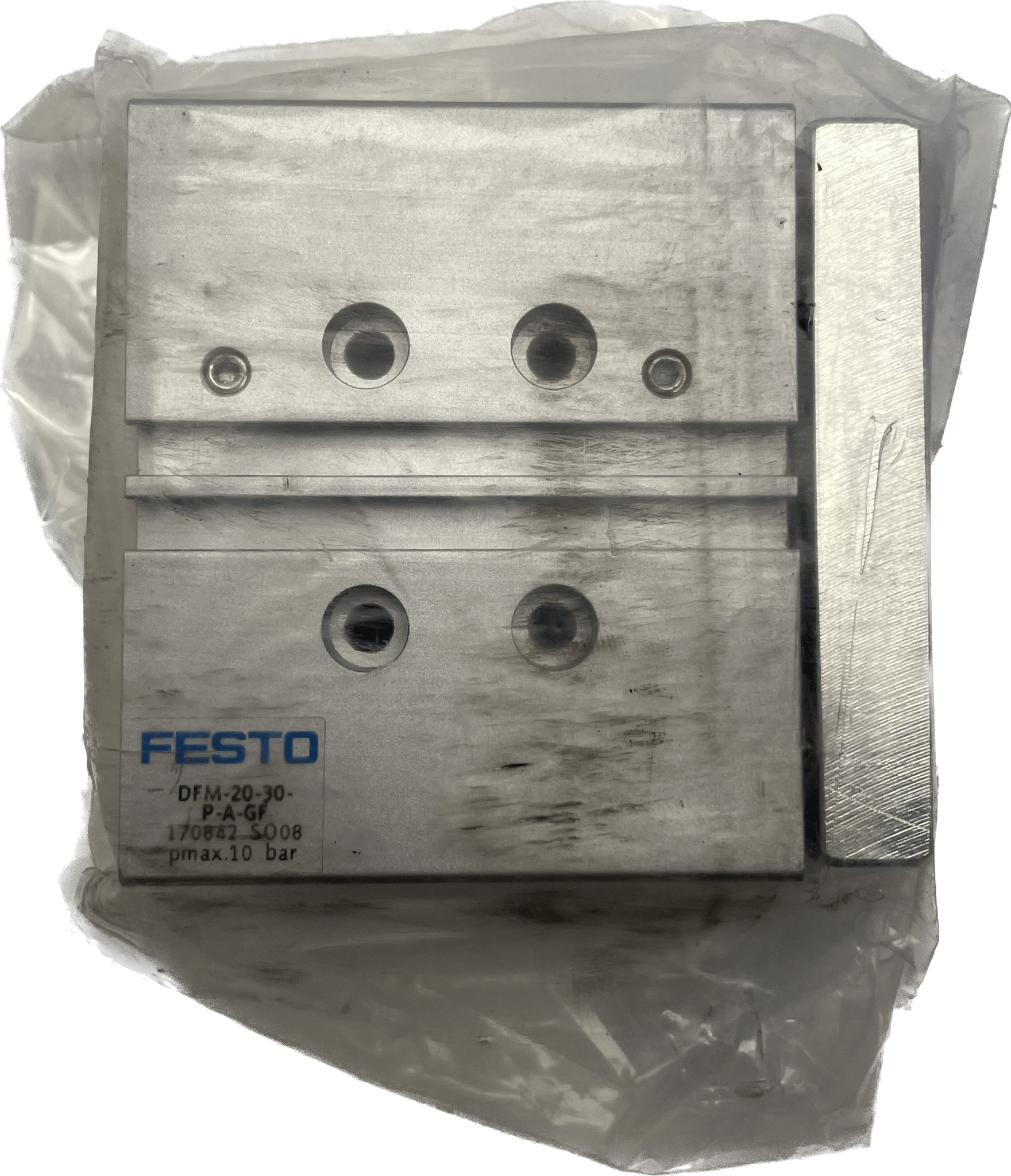

Festo guide cylinder DFM-20-30-P-A-GF

Party
unused stock
Guide cylinder
DFM-20-30-P-A-GF
170842
GTIN 4052568139674
Distance from the center of gravity of the payload to the yoke plate xs
50 mm
Hub
30 mm
Kolben-Ø
20 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Installation position
any
guide
Sliding guide
Structural design
guide
Position detection
for proximity switches
Symbol
00991737
operating pressure
0.2 MPa ... 1 MPa
operating pressure
2 bar ... 10 bar
Max. speed
0.8 m/s
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
1 - low corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.2 J
Max. Force Fy
354.7 N
Max. force Fy static
354.7 N
Max. Kraft Fz
354.7 N
Max. force Fz static
354.7 N
Max. Moment Mx
10.29 Nm
Max. Moment Mx static
10.29 Nm
Max. Moment My
3.37 Nm
Max. Moment My static
3.37 Nm
Max. Moment Mz
3.37 Nm
Max. moment Mz static
3.37 Nm
Max. permissible moment load Mx depending on the stroke
1.36 Nm
Max. payload depending on the stroke at a defined distance xs
27 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
141 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
188 N
Moving mass
415 g
Product weight
850 g
Alternative connections
see product drawing
Pneumatic connection
M5
Material note
RoHS konform
Material cover
Aluminium wrought alloy
Material seals
NBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
