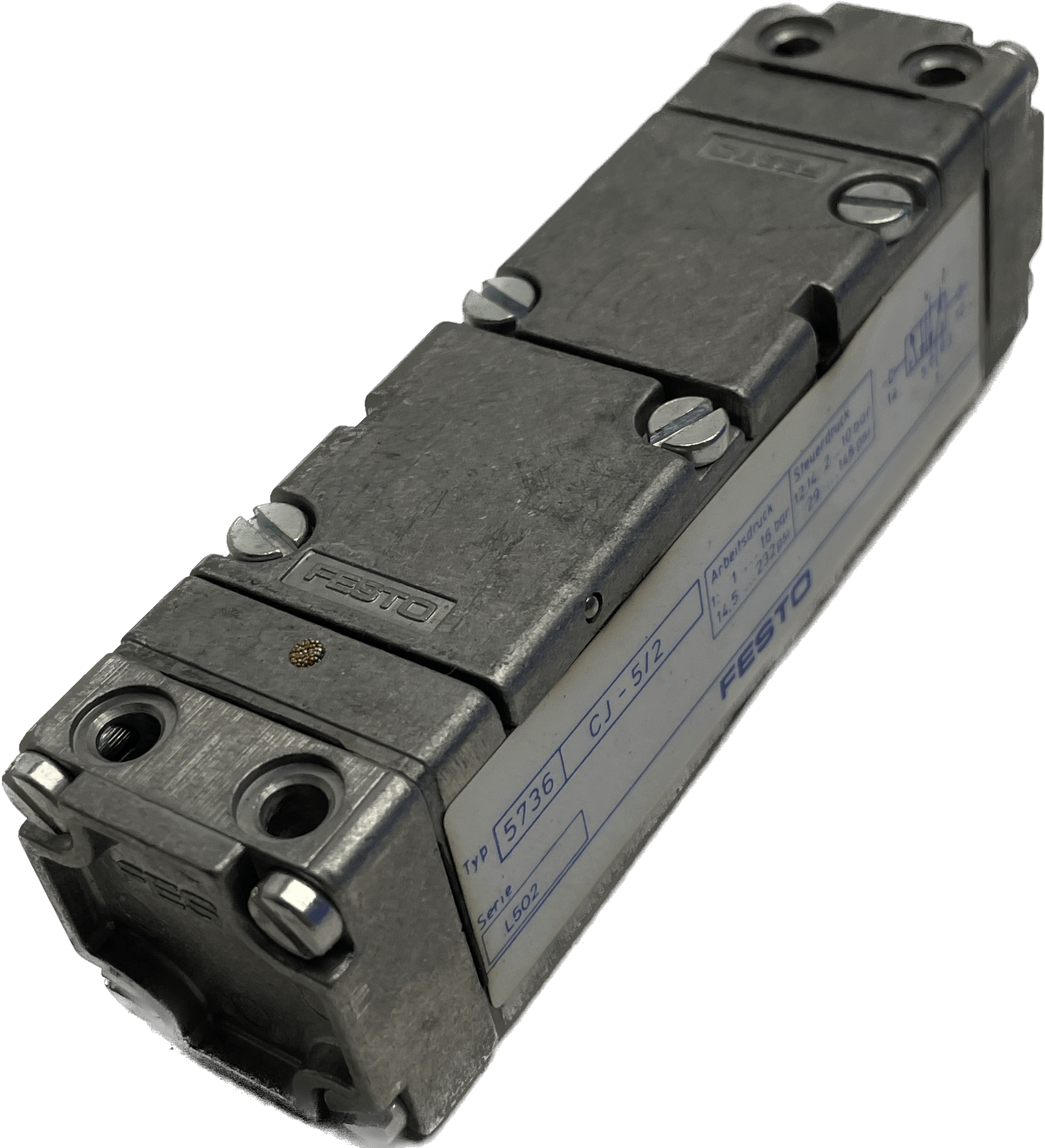

Festo Pneumaticventil CJ-5/2-1/4
plus VAT. plus shipping and handling
Party
Pneumatic valve
CJ-5/2-1/4
5736
GTIN 4052568110710
Valve function
5/2 bistable
Actuation type
pneumatic
Normal nominal flow
1400 l/min
Pneumatic work connection
G1/4
operating pressure
1 bar ... 16 bar
Nominal diameter
6.5 mm
Installation position
any
Manual override
tentative
Symbol
00991002
Control pressure
2 bar ... 10 bar
Max. switching frequency
40 Hz
Switching time on
28 ms
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
LABS compliance
VDMA24364-Zone III
Medium temperature
-10 °C ... 60 °C
Mounting type
on connection plate
Control air connection 12
G1/8
Control air connection 14
G1/8
Pneumatic connection 1
G1/4
Pneumatic connection 2
G1/4
Pneumatic connection 3
G1/4
Pneumatic connection 4
G1/4
Pneumatic connection 5
G1/4
Material seals
NBR
Housing material
Aluminium wrought alloy
Membrane material
EVEN THOUGH
Pneumatic valve
CJ-5/2-1/4
5736
GTIN 4052568110710
Valve function
5/2 bistable
Actuation type
pneumatic
Normal nominal flow
1400 l/min
Pneumatic work connection
G1/4
operating pressure
1 bar ... 16 bar
Nominal diameter
6.5 mm
Installation position
any
Manual override
tentative
Symbol
00991002
Control pressure
2 bar ... 10 bar
Max. switching frequency
40 Hz
Switching time on
28 ms
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
LABS compliance
VDMA24364-Zone III
Medium temperature
-10 °C ... 60 °C
Mounting type
on connection plate
Control air connection 12
G1/8
Control air connection 14
G1/8
Pneumatic connection 1
G1/4
Pneumatic connection 2
G1/4
Pneumatic connection 3
G1/4
Pneumatic connection 4
G1/4
Pneumatic connection 5
G1/4
Material seals
NBR
Housing material
Aluminium wrought alloy
Membrane material
EVEN THOUGH
Spezifikationen
Diese Informationen werden zeitnah ergänzt.
Einsatzbereiche
Diese Informationen werden zeitnah ergänzt.
Lieferumfang
Diese Informationen werden zeitnah ergänzt.
Download Data Sheet
Select options
Festo Pneumaticventil CJ-5/2-1/4
Offer€420,45
