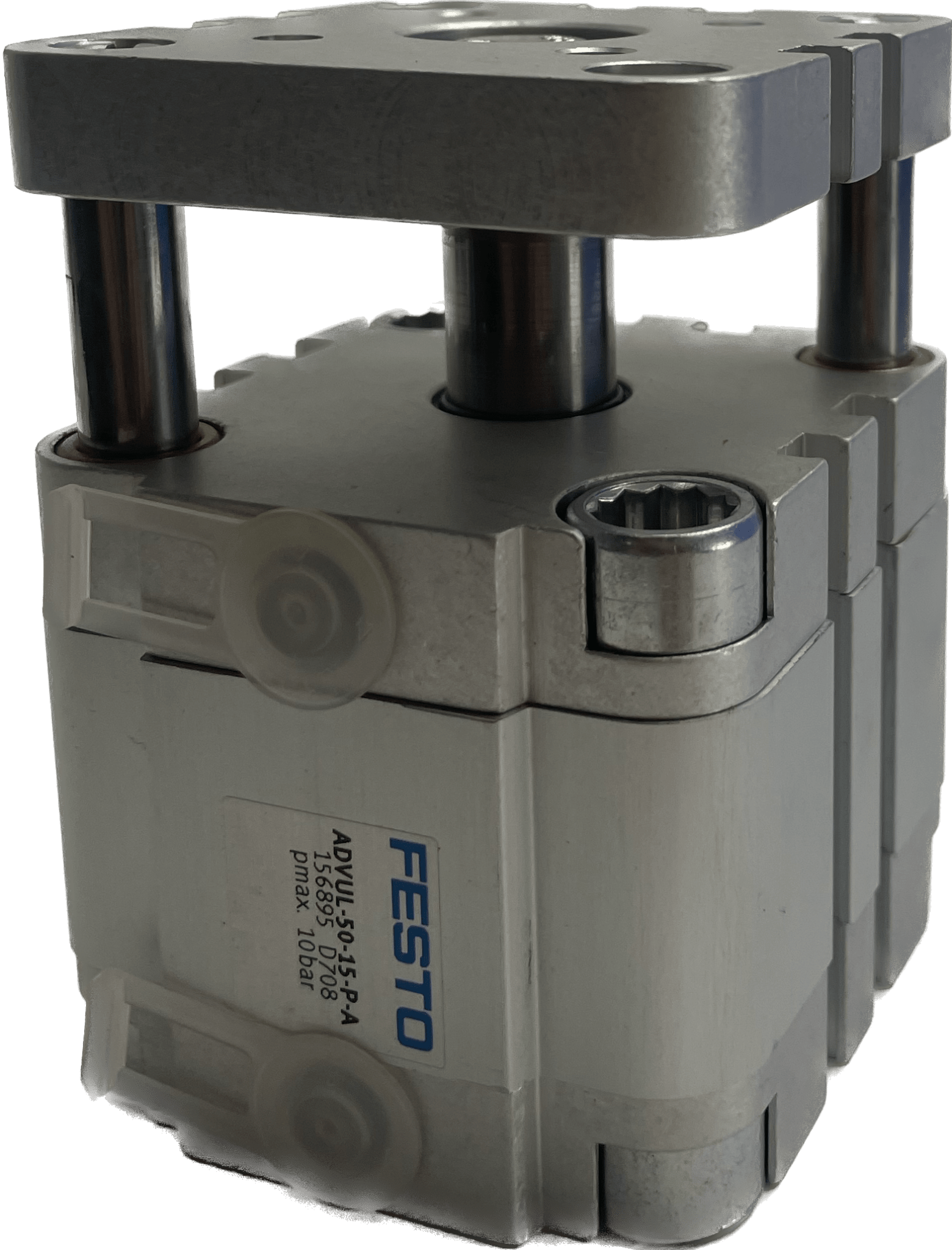

Festo Compact Cylinder ADVUL-50-15-P-A

Party
unused stock
Compact cylinder
ADVUL-50-15-P-A
156895
GTIN 4052568121457
Hub
15 mm
Kolben-Ø
50 mm
damping
elastic damping rings/plates on both sides
Installation position
any
Structural design
Pistons
Piston rod
Position detection
for proximity switches
Symbol
00991737
variants
one-sided piston rod
Anti-twist device/guide
Guide rod with yoke
operating pressure
0.1 MPa ... 1 MPa
operating pressure
1 bar ... 10 bar
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.64 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
1057 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
1178 N
Mounting type
optional:
with through hole
with accessories
Pneumatic connection
G1/8
Material collar screws
galvanized steel
Material cover
Aluminium wrought alloy
Material Dynamic seals
NBR
TPE-U(PU)
Piston rod material
high-alloy steel
Cylinder tube material
Aluminium wrought alloy
