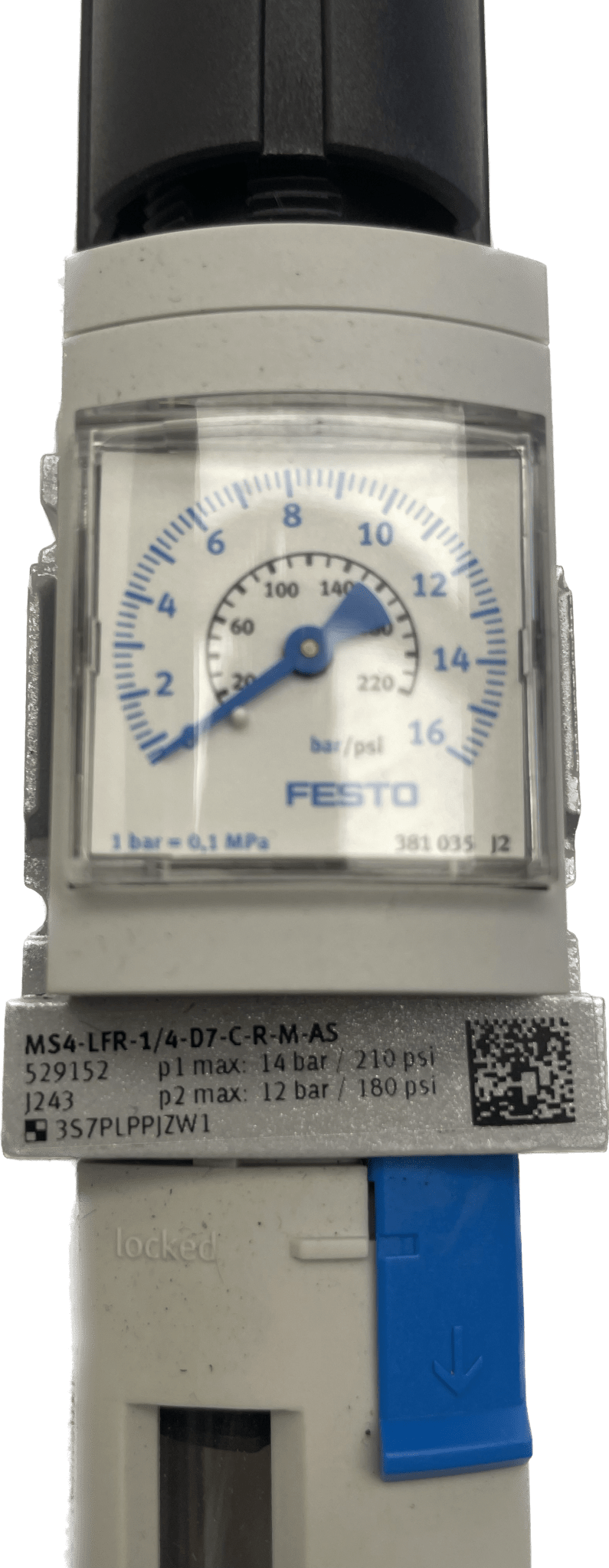

Festo Filter-Regulating valve MS4-LFR-1/4-D7-CRM-AS

Party
unused stock
Filter-Control valve
MS4-LFR-1/4-D7-CRM-AS
529152
GTIN 4052568084868
Size
4
model series
MS
Actuation lock
Rotary knob with locking mechanism
lockable with accessories
Installation position
vertical +/- 5°
Filter fineness
5 µm
Condensate tray
manually rotating
Structural design
Filter regulator with pressure gauge
Max. Condensation mix
19 ml
Control function
Output pressure constant
with secondary ventilation
with reverse flow behavior
Shell protection
Plastic protective basket
Symbol
00991589
Pressure display
with pressure gauge
operating pressure
0.08 MPa ... 1.4 MPa
operating pressure
0.8 bar ... 14 bar
Pressure control range
0.5 bar ... 12 bar
Max. Druckhysterese
0.25 bar
Normal nominal flow
1200 l/min
Operating medium
Compressed air according to ISO 8573-1:2010 [-:4:-]
Inert Gas
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Storage temperature
-10 °C ... 60 °C
Food suitability
see extended material information
Air purity class at the exit
Compressed air according to ISO 8573-1:2010 [6:4:4]
Medium temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
275 g
Mounting type
optional:
Front panel installation
Cable installation
with accessories
Pneumatic connection 1
G1/4
Pneumatic connection 2
G1/4
Material note
RoHS konform
Material connection plate
Aluminium die casting
Material control panel
Well
POM
Material seals
NBR
Material filter
ON
Housing material
Aluminium die casting
Membrane material
NBR
Shell material
PC
Material separator plate
POM
