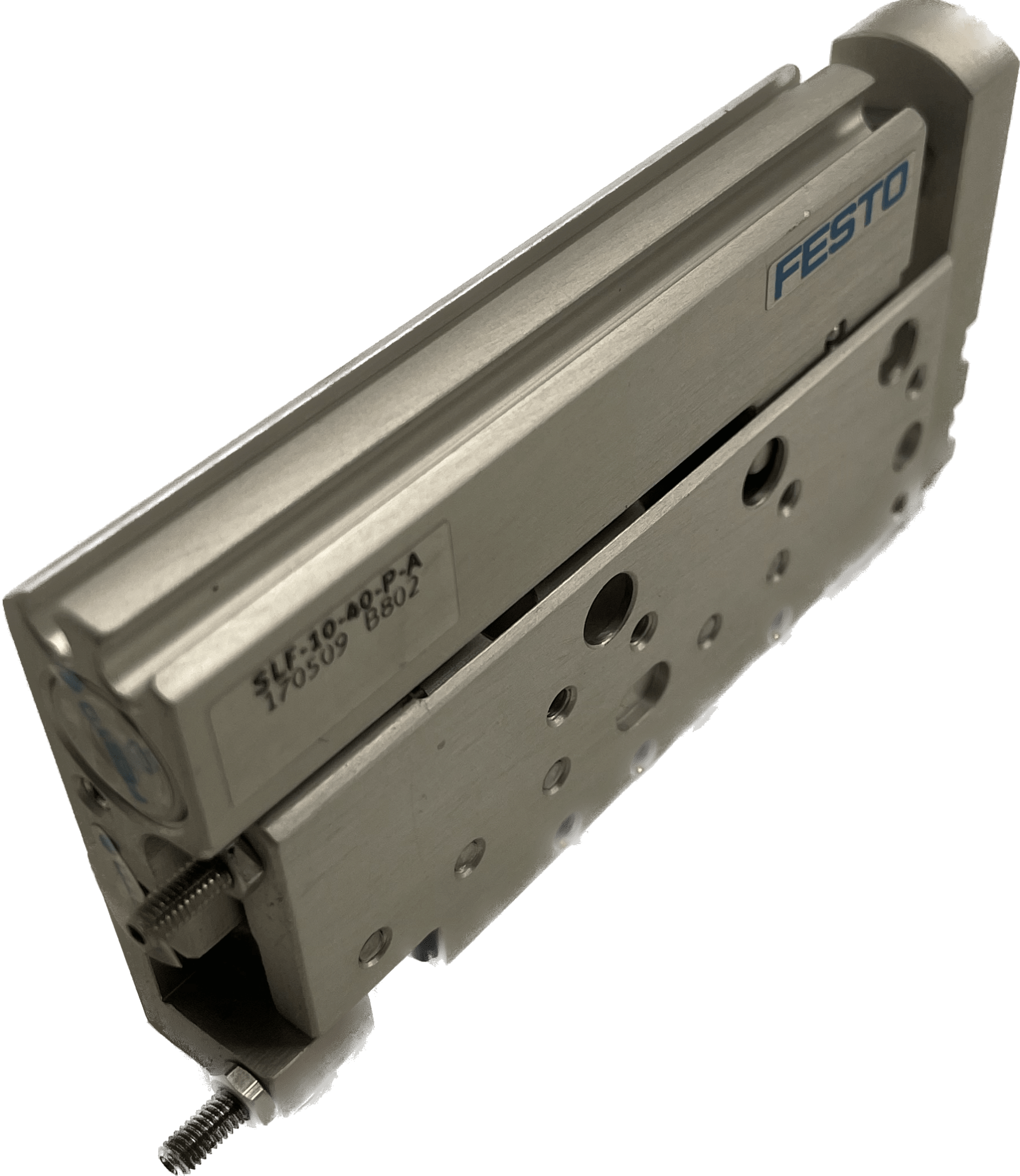

Festo mini slide SLF-10-40-P-A

Party
unused stock
SLF-10-40-P-A
170509
Mini sledge
GTIN 4052568139155
Hub
40 mm
Adjustable end position range/length
5 mm
Kolben-Ø
10 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Installation position
any
guide
Ball cage guide
Structural design
yoke
Pistons
Piston rod
Ball cage guide
Sleds
Position detection
for proximity switches
Symbol
00991737
operating pressure
0.1 MPa ... 1 MPa
operating pressure
1 bar ... 10 bar
operating pressure
14.5 psi ... 145 psi
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B2-L
Ambient temperature
-20 °C ... 60 °C
Impact energy in the end positions
0.05 J
Max. Force Fy
150 N
Max. Kraft Fz
150 N
Max. Moment Mx
0.9 Nm
Max. Moment My
0.9 Nm
Max. Moment Mz
0.5 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
40 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
47 N
Moving mass
60 g
Product weight
178 g
Basic weight at 0 mm stroke
178 g
Alternative connections
see product drawing
Mounting type
with through hole
Pneumatic connection
M5
Material note
RoHS konform
Material cover
Aluminium wrought alloy
Material seals
HNBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
