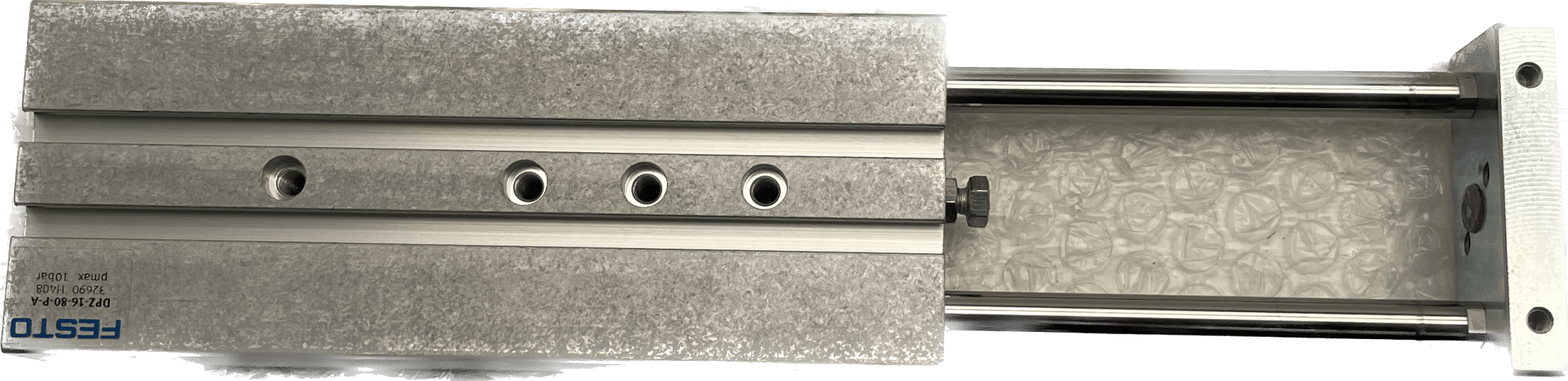

Festo double piston cylinder DPZ-16-80-P-A

Party
unused stock
Double piston cylinder
DPZ-16-80-P-A
32690
GTIN 4052568003951
Distance from the center of gravity of the payload to the yoke plate xs
0 mm
Hub
80 mm
Adjustable end position range/length
10 mm
Kolben-Ø
16 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Installation position
any
guide
Sliding guide
Structural design
guide
Position detection
for proximity switches
Symbol
00991249
operating pressure
0.1 MPa ... 1 MPa
operating pressure
1 bar ... 10 bar
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.15 J
Max. payload depending on the stroke at a defined distance xs
9 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
180 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
242 N
Alternative connections
see product drawing
Pneumatic connection
M5
Material cover
Aluminium wrought alloy
Material seals
NBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
