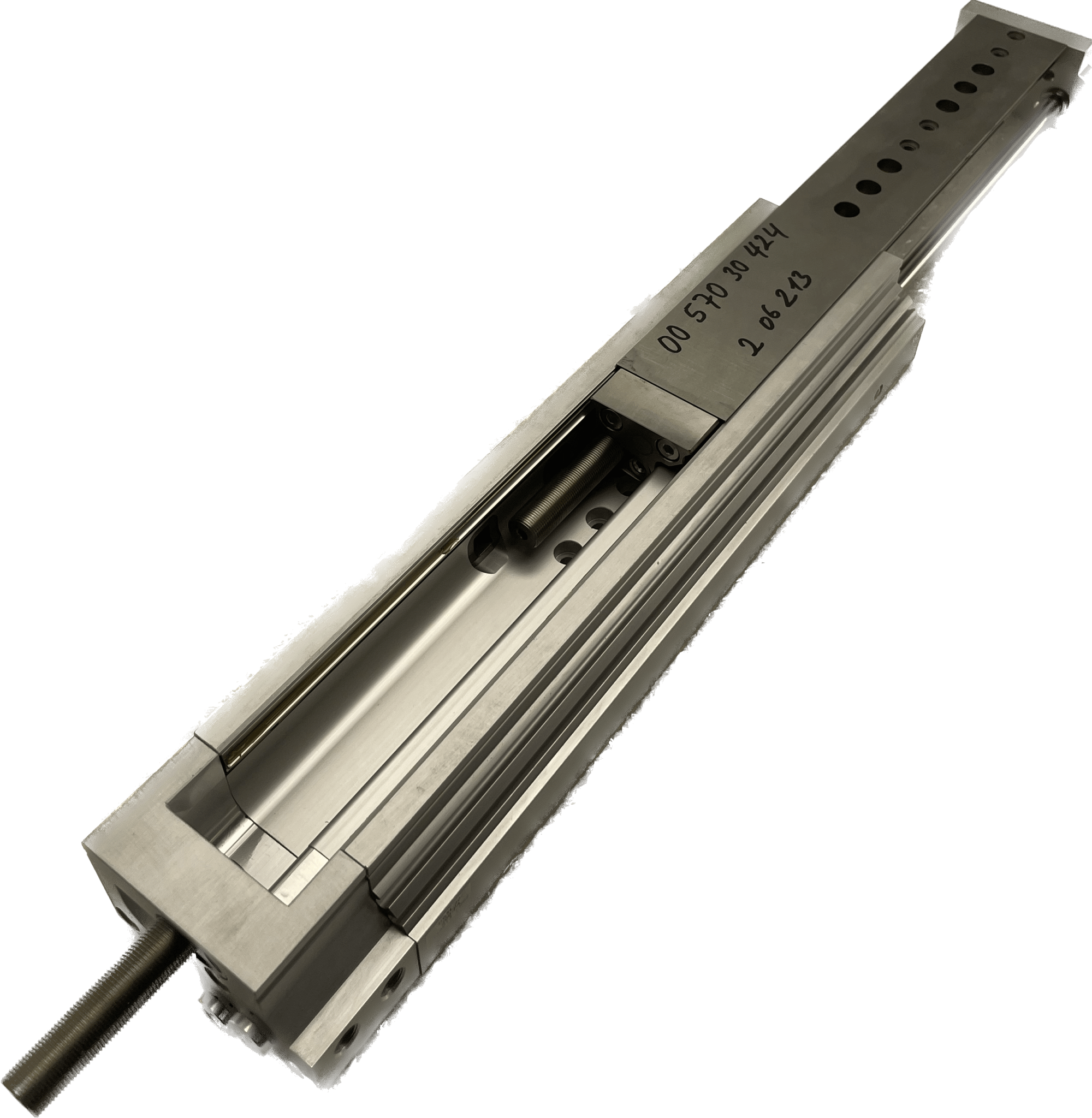

Festo mini slide DGSL-20-200-PA

Party
unused stock item
Mini sledge
DGSL-20-200-PA
544013
GTIN 4052568183561
Hub 200 mm
Adjustable end position range / front length 138.5 mm
Adjustable end position range / rear length 49.5 mm
Piston diameter 25 mm
Drive unit operating mode: yoke
Damping: elastic damping rings/plates on both sides
Installation position: any
Guide: Ball cage guide
Structural design
yoke
Pistons
Piston rod
Sleds
Position detection
for proximity switches
Symbol
00991263
operating pressure
0.1 MPa ... 0.8 MPa
operating pressure
1 bar ... 8 bars
Max. speed
0.8 m/s
Repeatability
0,3 mm
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
0 °C ... 60 °C
Impact energy in the end positions
0.45 J
Damping length
1.2 mm
Max. Force Fy
4600 N
Max. Kraft Fz
4600 N
Max. Moment Mx
90 Nm
Max. Moment My
80 Nm
Max. Moment Mz
80 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
247 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
295 N
Moving mass
1807 g
Product weight
4412 g
Alternative connections
see product drawing
Mounting type
with through hole
Pneumatic connection
G1/8
Material note
RoHS konform
Material cover
Aluminium wrought alloy
Material seals
HNBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
