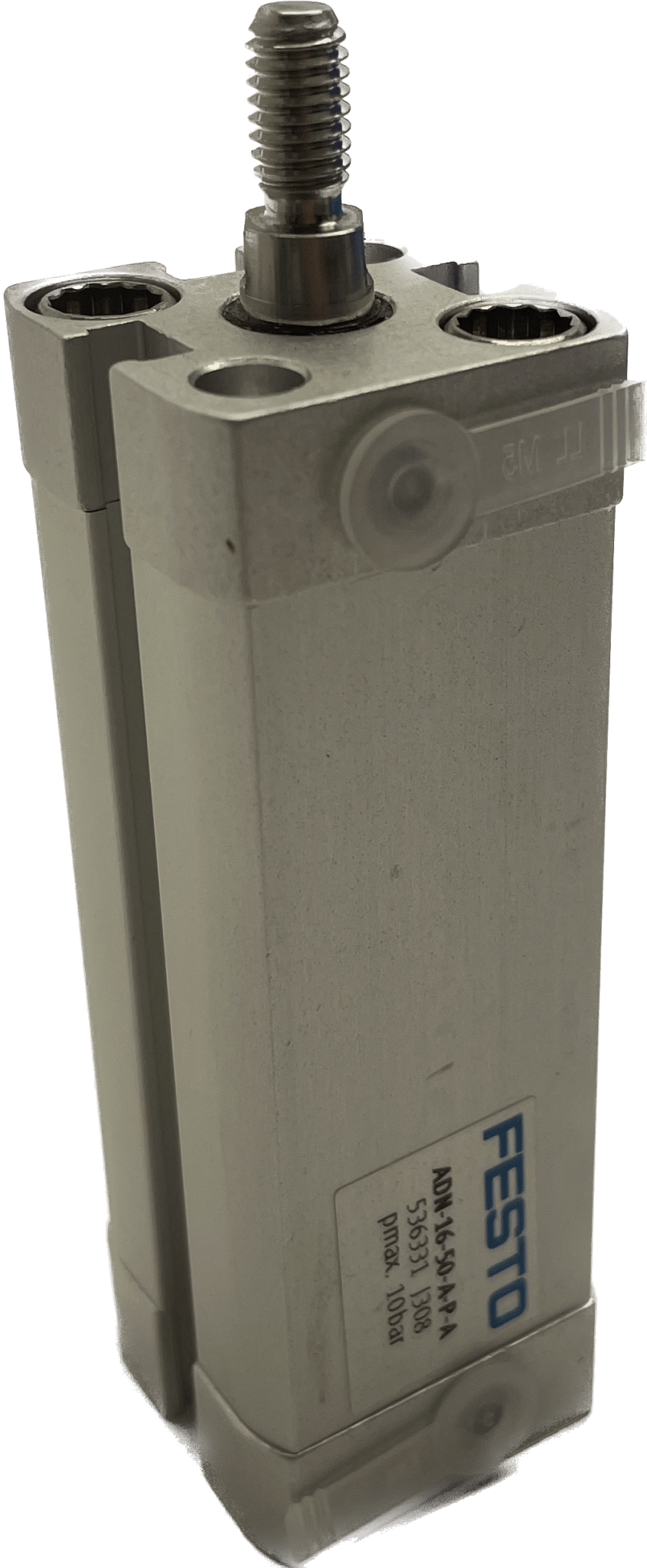

Festo Compact Cylinder DNA-16-50-A-P-A

Party
unused stock
Compact cylinder
ADN-16-50-A-P-A
536331
GTIN 4052568087838
Hub
50 mm
Kolben-Ø
16 mm
Piston rod thread
M6
Based on standard
ISO 21287
damping
elastic damping rings/plates on both sides
Installation position
any
functionality
double-acting
Piston rod end
External thread
Position detection
for proximity switches
Symbol
00991217
variants
one-sided piston rod
operating pressure
0.06 MPa ... 1 MPa
operating pressure
0.6 bar ... 10 bar
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Cleanroom class
Class 6 according to ISO 14644-1
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.15 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
90 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
121 N
Moving mass at 0 mm stroke
15 g
Additional moving mass per 10 mm stroke
4 g
Basic weight at 0 mm stroke
79 g
Weight surcharge per 10 mm stroke
14 g
Mounting type
optional:
with through hole
with internal thread
with accessories
Pneumatic connection
M5
Material note
RoHS konform
Material collar screws
Stahl
Material cover
Wrought aluminum alloy, anodized
Material seals
TPE-U(PUR)
Piston rod material
high-alloy steel
Cylinder tube material
Wrought aluminum alloy, slide anodized
