Festo Compact Cylinder DNA-12-110-A-P-A-S6


SKU: ADN-12-110-A-P-A-S6
Offer€88,68

plus VAT. plus shipping and handling

Only 2 items left
American Express Apple Pay Google Pay KlarnaMaestroMastercardPayPalShop Pay Union PayVisa
Party
unused stock
Compact cylinder
ADN-12-110-A-P-A-S6
536203
Piston diameter mm 12 mm
Hub mm 110 mm
Piston rod thread A external thread
Damping P Elastic damping rings/plates on both sides
Position detection A For proximity switches
Options
Temperature resistance S6 Heat-resistant seals max. 120°C
Hub
110 mm
Kolben-Ø
12 mm
Based on standard
ISO 21287
damping
elastic damping rings/plates on both sides
Installation position
any
functionality
double-acting
Structural design
Pistons
Piston rod
Profilrohr
Position detection
for proximity switches
variants
EX protection approval (ATEX)
Metals with copper, zinc or nickel as the main component are excluded from use. Exceptions are nickel in steels, chemically nickel-plated surfaces, circuit boards, cables, electrical connectors and coils.
Extended piston rod external thread
Special thread on the piston rod
Extended piston rod
With anti-twist device
High corrosion protection
Constant slow movement
Low friction
Continuous piston rod
Heat-resistant seals max. 120 °C
operating pressure
0.1 MPa ... 1 MPa
operating pressure
1 bar ... 10 bar
CE mark (see declaration of conformity)
according to EU explosion protection directive (ATEX)
UKCA mark (see declaration of conformity)
according to UK EX regulations
Explosion protection
Zone 1 (ATEX)
Zone 2 (ATEX)
Zone 21 (ATEX)
Zone 22 (ATEX)
ATEX Category Gas
II 2G
ATEX category dust
II 2D
Ex-ignition protection type gas
Ex h IIC T4 Gb
Ex-protection type dust
Ex h IIIC T120°C Db
Ex ambient temperature
-20°C <= Ta <= +60°C
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
2 - moderate corrosion stress
3 - strong corrosion stress
LABS compliance
VDMA24364-B1/B2-L
VDMA24364-Zone III
Suitability for the production of Li-ion batteries
Metals with more than 1% mass proportion of copper, zinc or nickel are excluded from use. Nickel in steels, chemically nickel-plated surfaces, circuit boards, cables, electrical connectors and coils are excluded
Ambient temperature
-20 °C ... 120 °C
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
51 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
51 N ... 68 N
Moving mass at 0 mm stroke
9 g
Additional moving mass per 10 mm stroke
2 g
Basic weight at 0 mm stroke
77 g
Weight surcharge per 10 mm stroke
12 g
Mounting type
optional:
with through hole
with internal thread
with accessories
Pneumatic connection
M5
Material note
RoHS konform
Material collar screws
Stahl
Material cover
Wrought aluminum alloy, anodized
Piston rod material
high-alloy steel
Cylinder tube material
Wrought aluminum alloy, slide anodized
Download Data Sheet

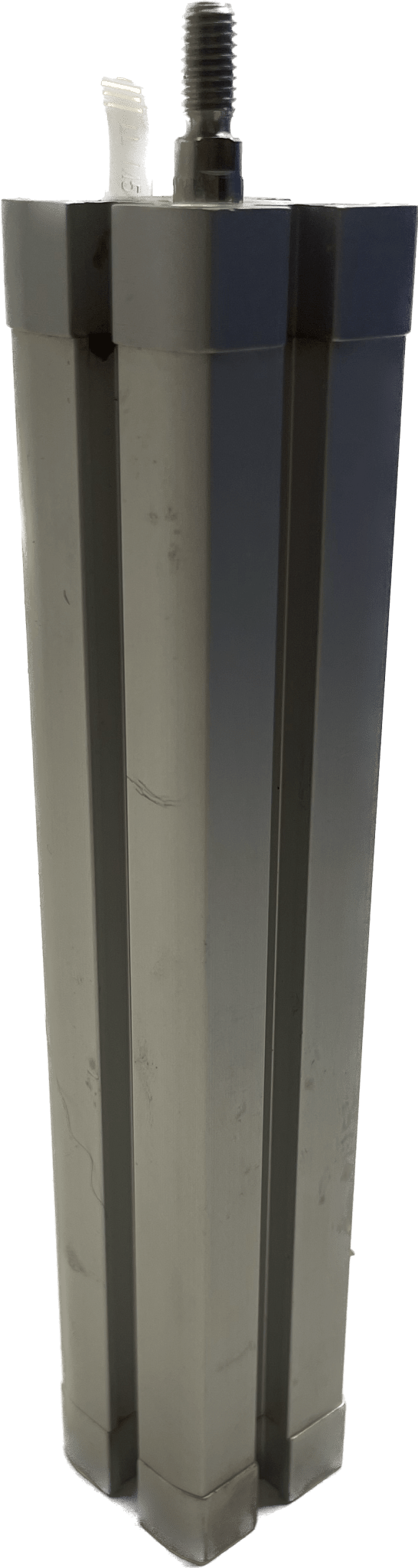

Festo Kompaktzylinder ADN-12-110-A-P-A-S6 - #product_category# | Klenk Maschinenhandel
