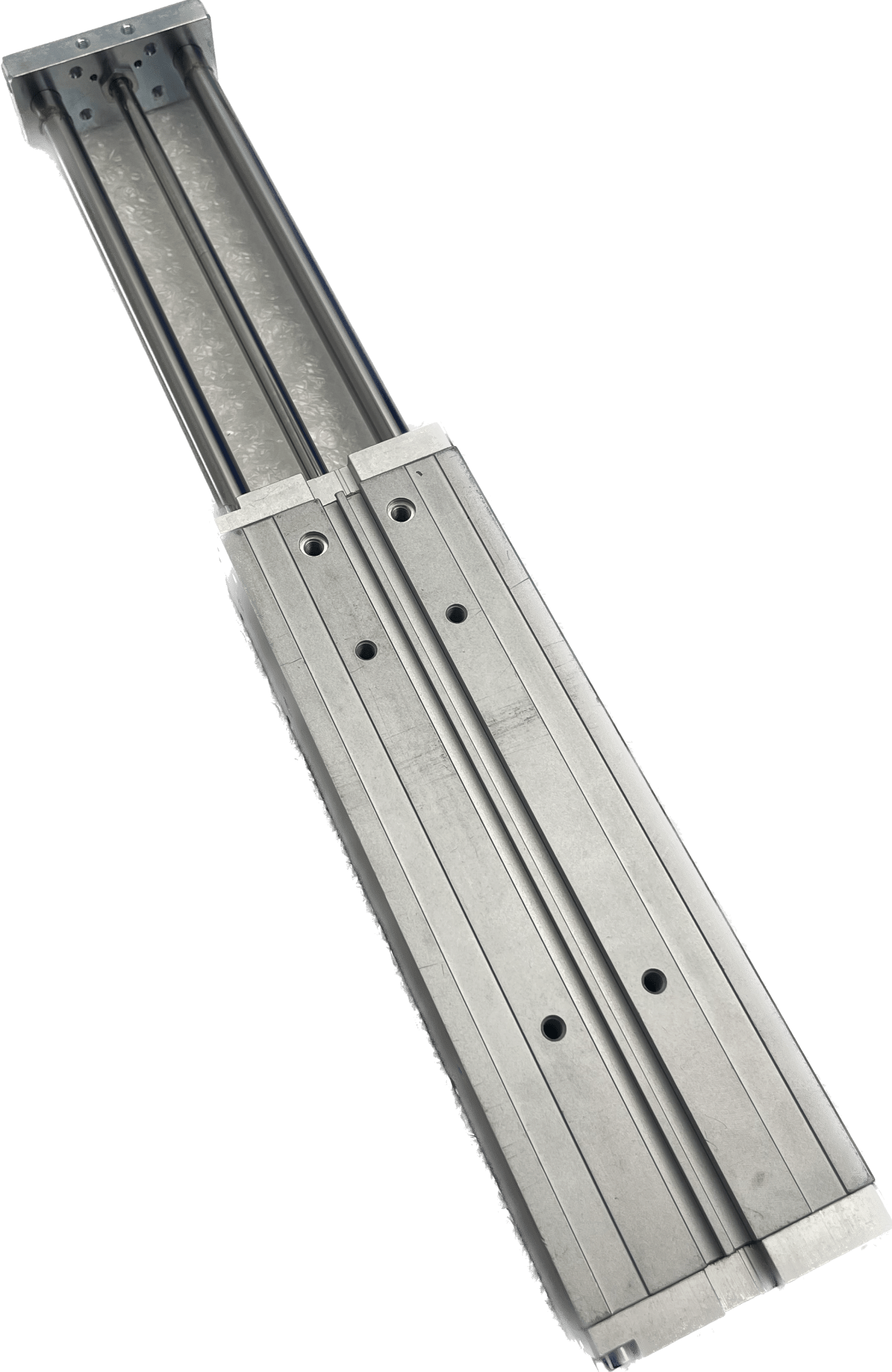

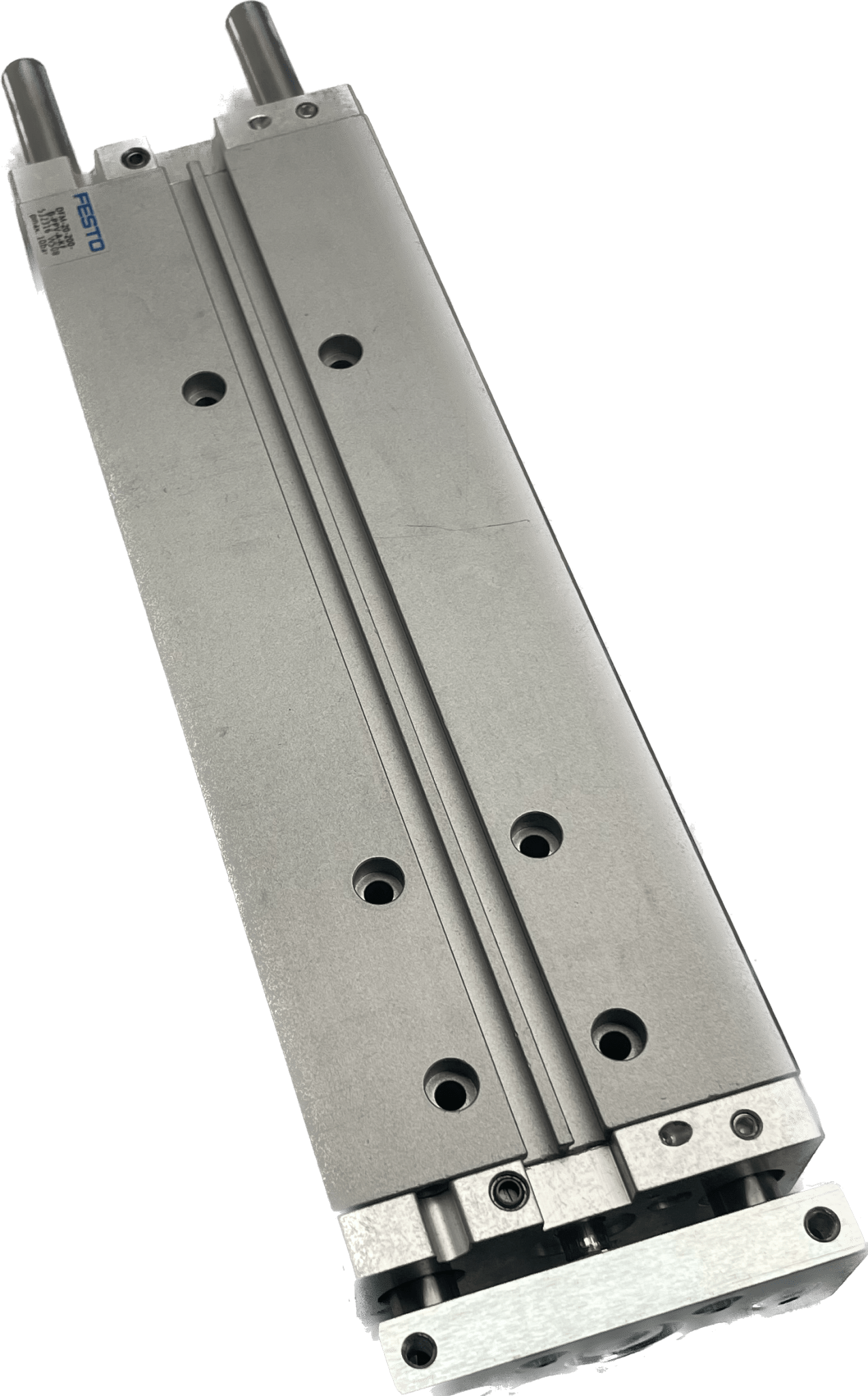

Festo guide cylinder DFM-20-200-B-PPV-A-KF


Offer€761,58

plus VAT. plus shipping and handling

Only 1 items left
American Express Apple Pay Google Pay KlarnaMaestroMastercardPayPalShop Pay Union PayVisa
Party
unused stock
Guide cylinder
DFM-20- -B
532316
Piston diameter mm 20 mm
Hub mm 200 mm
Variable hub mm 200 mm
Generation B B-Series
Cushioning PPV Pneumatic cushioning, adjustable on both sides
Position detection A For proximity switches
Guide KF ball bearing guide
Hub
20 mm ... 400 mm
Kolben-Ø
20 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Pneumatic damping adjustable on both sides
Shock absorber, soft characteristic
Installation position
any
guide
Sliding guide
Recirculating ball bearing guide
Structural design
guide
Position detection
for proximity switches
variants
Heat-resistant seals max. 120 °C
operating pressure
0.2 MPa ... 1 MPa
operating pressure
2 bar ... 10 bar
functionality
double-acting
CE mark (see declaration of conformity)
according to EU explosion protection directive (ATEX)
UKCA mark (see declaration of conformity)
according to UK EX regulations
Explosion protection
Zone 1 (ATEX)
Zone 2 (ATEX)
ATEX Category Gas
II 2G
Ex-ignition protection type gas
Ex h IIC T4 Gb
Ex ambient temperature
-20°C <= Ta <= +70°C
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-20 °C ... 120 °C
Impact energy in the end positions
0.1 J ... 0.2 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
141 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
188 N
Alternative connections
see product drawing
Pneumatic connection
M5
Material note
RoHS konform
Material cover
Aluminium wrought alloy
Material seals
NBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
