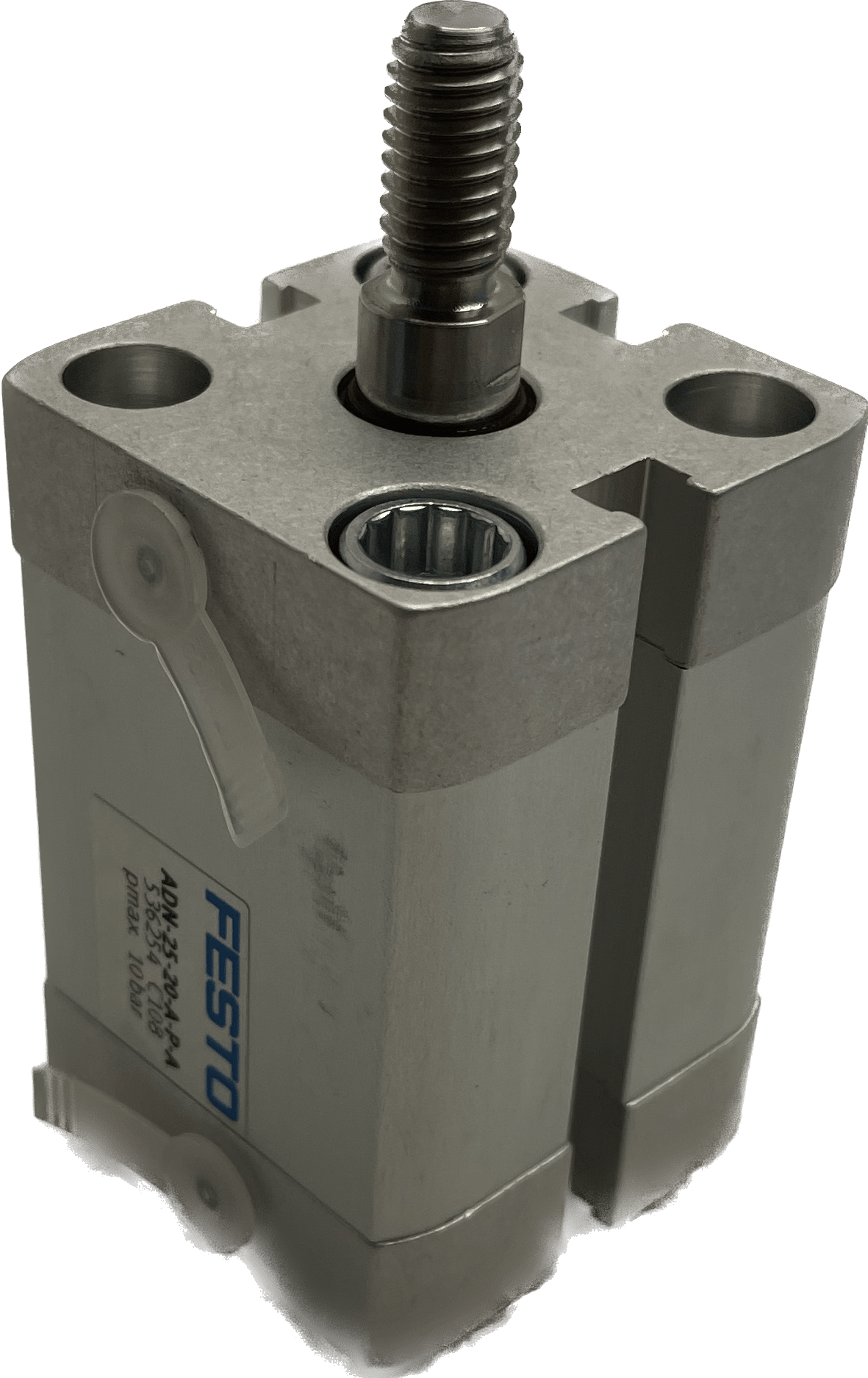

Festo Compact Cylinder DNA-25-20-A-P-A

Party
unused stock
Compact cylinder
ADN-25-20-A-P-A
536254
GTIN 4052568087586
Hub
20 mm
Kolben-Ø
25 mm
Piston rod thread
M8
damping
elastic damping rings/plates on both sides
Installation position
any
Complies with standard
ISO 21287
Piston rod end
External thread
Position detection
for proximity switches
Symbol
00991217
variants
one-sided piston rod
operating pressure
0.06 MPa ... 1 MPa
operating pressure
0.6 bar ... 10 bar
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Cleanroom class
Class 6 according to ISO 14644-1
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.3 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
247 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
295 N
Moving mass at 0 mm stroke
50 g
Additional moving mass per 10 mm stroke
6 g
Basic weight at 0 mm stroke
156 g
Weight surcharge per 10 mm stroke
23 g
Mounting type
optional:
with through hole
with internal thread
with accessories
Pneumatic connection
M5
Material note
RoHS konform
Material collar screws
Stahl
Material cover
Wrought aluminum alloy, anodized
Material seals
TPE-U(PUR)
Piston rod material
high-alloy steel
Cylinder tube material
Wrought aluminum alloy, slide anodized
