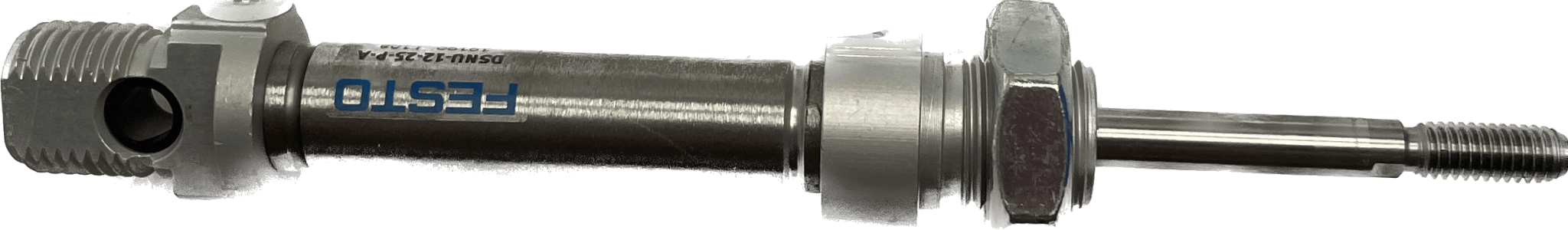

Festo Normzylinder DSNU-12-25-P-A


SKU: DSNU-12-25-P-A
Offer€41,08

plus VAT. plus shipping and handling

Only 1 items left
American Express Apple Pay Google Pay KlarnaMaestroMastercardPayPalShop Pay Union PayVisa
Party
Standard cylinder
DSNU-12-25-P-A
19190
GTIN 4052568003074
Hub
25 mm
Kolben-Ø
12 mm
Piston rod thread
M6
damping
elastic damping rings/plates on both sides
Installation position
any
Complies with standard
CETOP RP 52 P
ISO 6432
Piston rod end
External thread
Structural design
Pistons
Piston rod
Cylinder tube
Position detection
for proximity switches
Symbol
00991217
variants
one-sided piston rod
operating pressure
0.15 MPa ... 1 MPa
operating pressure
1.5 bar ... 10 bar
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Cleanroom class
Class 6 according to ISO 14644-1
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.07 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
50.9 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
67.9 N
Moving mass at 0 mm stroke
18.5 g
Additional moving mass per 10 mm stroke
2 g
Basic weight at 0 mm stroke
75 g
Weight surcharge per 10 mm stroke
4 g
Mounting type
with accessories
Pneumatic connection
M5
Material note
RoHS konform
Material cover
Aluminium wrought alloy
colorless anodized
Material seals
NBR
TPE-U(PU)
Piston rod material
high-alloy stainless steel
Cylinder tube material
high-alloy stainless steel
Download Data Sheet
