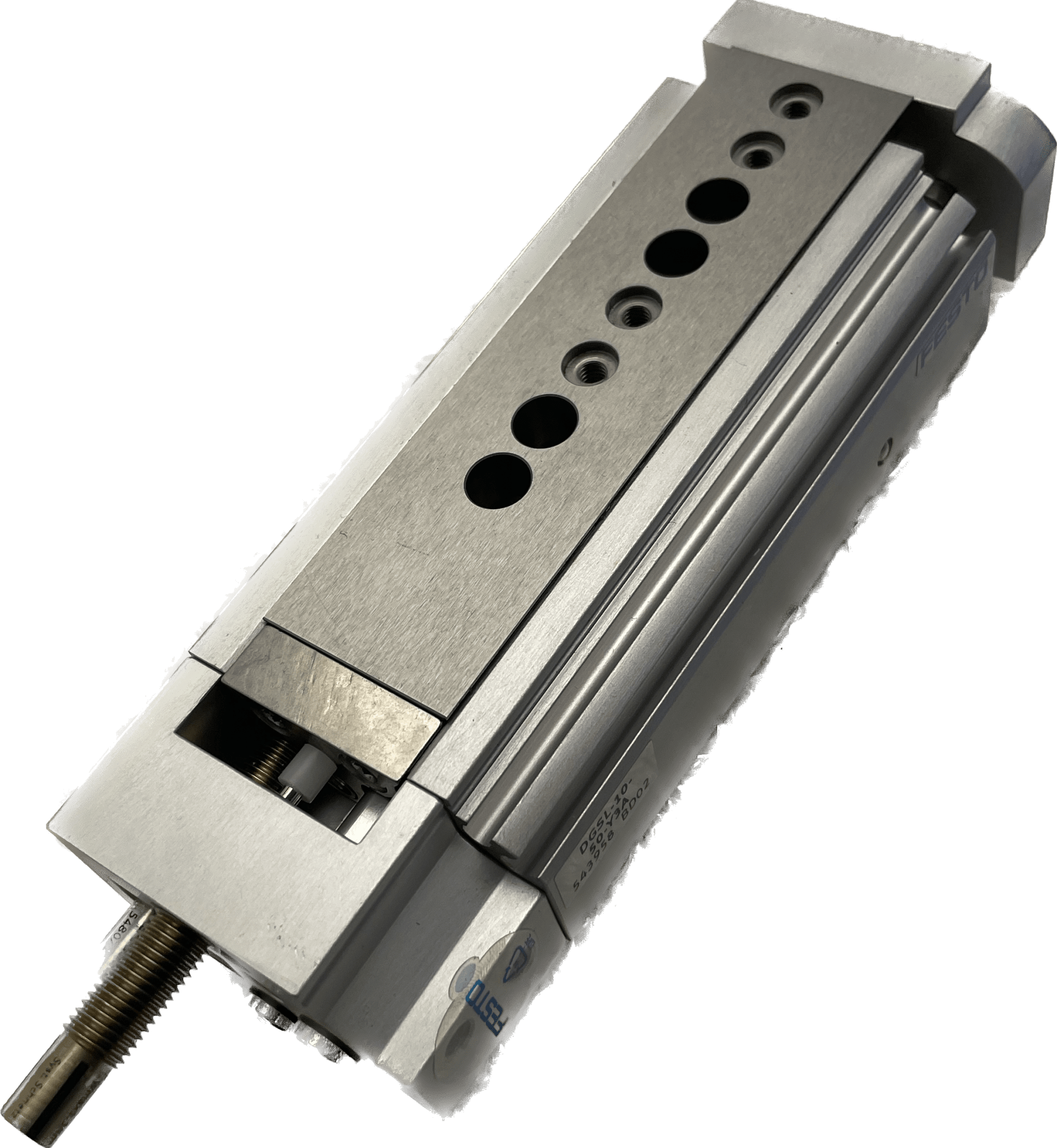

Festo mini slide DGSL-10-50-Y3A

Party
unused stock
Mini sledge
DGSL-10-50-Y3A
543958
GTIN 4052568183028
Hub
50 mm
Adjustable end position range / length at the front
24 mm
Adjustable end position range / length at the back
15 mm
Kolben-Ø
12 mm
Operating mode of the drive unit
yoke
damping
Shock absorbers progressive on both sides
Installation position
any
guide
Ball cage guide
Structural design
yoke
Pistons
Piston rod
Sleds
Position detection
for proximity switches
Symbol
00991263
operating pressure
0.15 MPa ... 0.8 MPa
operating pressure
1.5 bar ... 8 bar
Max. speed
0.8 m/s
Repeatability
±0,01 mm
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
0 °C ... 60 °C
Impact energy in the end positions
1 J
Damping length
8 mm
Max. Force Fy
1175 N
Max. Kraft Fz
1175 N
Max. Moment Mx
18 Nm
Max. Moment My
9 Nm
Max. Moment Mz
9 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
51 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
68 N
Moving mass
226 g
Product weight
564 g
Alternative connections
see product drawing
Mounting type
with through hole
Pneumatic connection
M5
Material note
RoHS konform
Material cover
Aluminium wrought alloy
Material seals
HNBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
