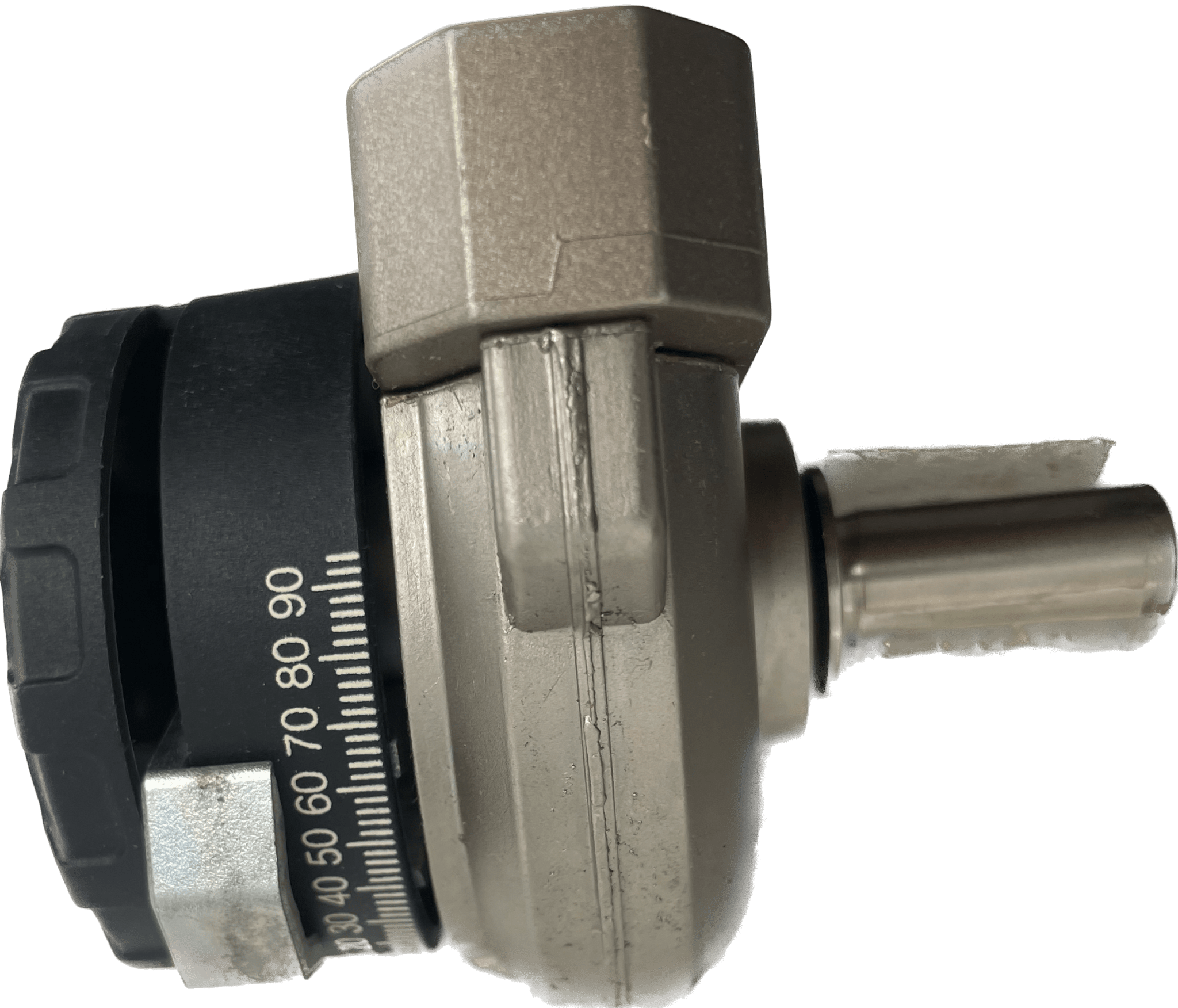

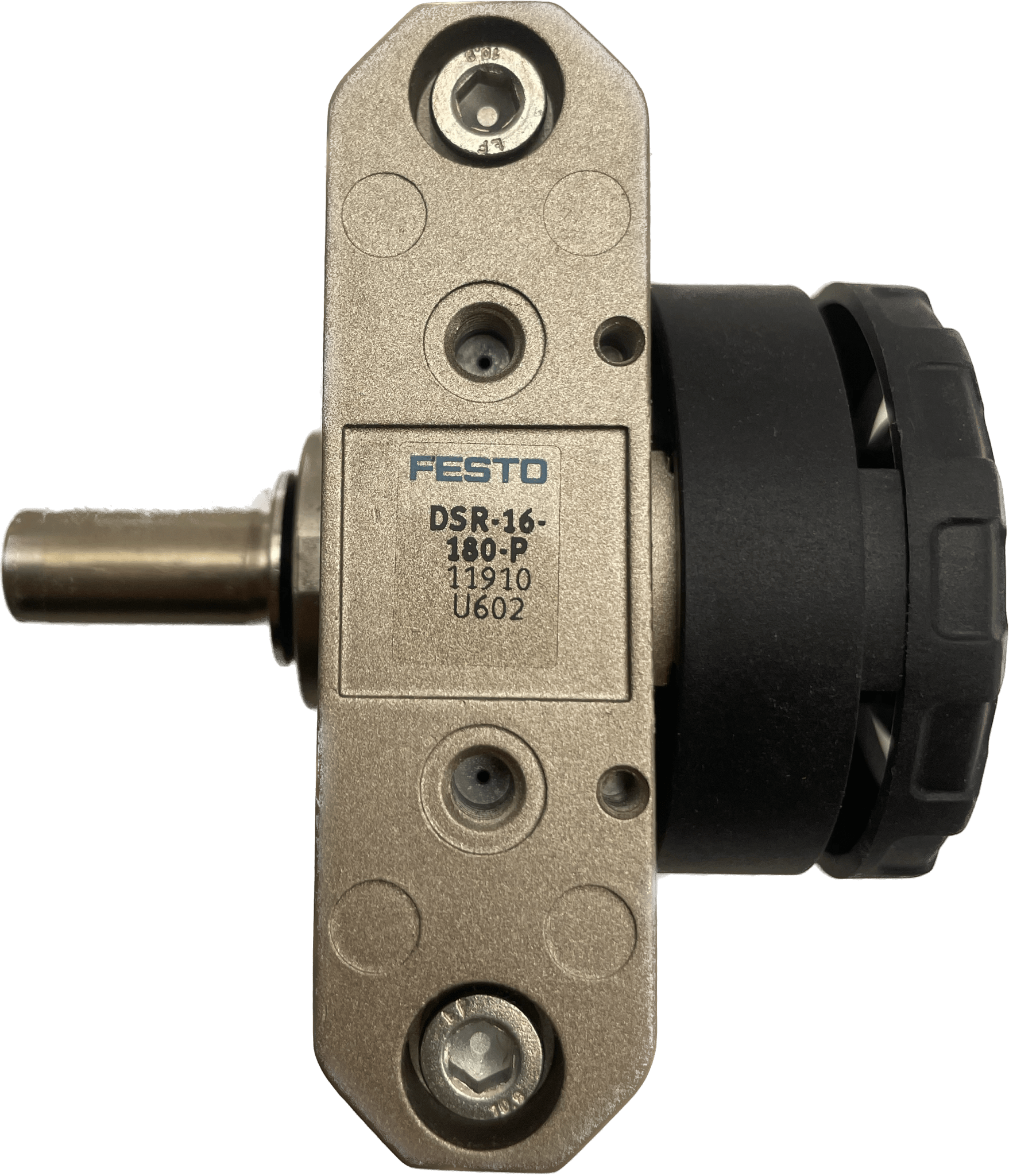

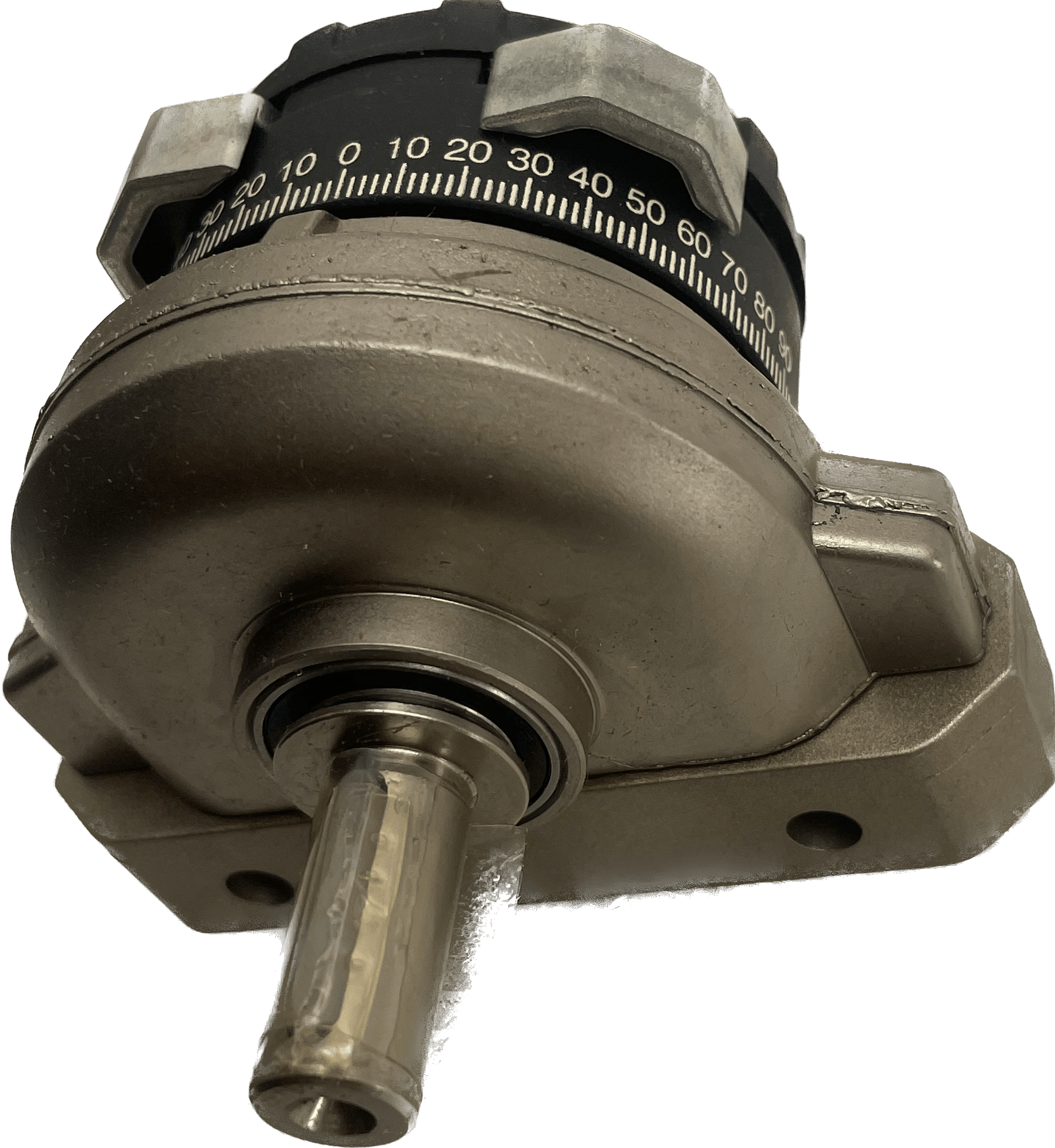

Festo swivel drive DSR-16-180-P
plus VAT. plus shipping and handling
Party
Swivel drive
DSR-16-180-P
11910
GTIN 4052568002459
Size
16
Damping angle
2.1 you
Adjustment range swivel angle
0 deg ... 180 deg
Swivel angle
0 deg ... 180 deg
damping
elastic damping rings/plates on both sides
Installation position
any
functionality
double-acting
Structural design
Swing wing
Position detection
without
Symbol
00991265
operating pressure
2 bar ... 8 bar
Max. swing frequency at 0.6 MPa (6 bar, 87 psi)
3 Hz
Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
LABS compliance
VDMA24364-B2-L
Ambient temperature
-10 °C ... 60 °C
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
2 Nm
Product weight
300 g
Mounting type
with through hole
Pneumatic connection
M5
Drive shaft material
Stahl
nickel-plated
Material seals
NBR
Swivel drive
DSR-16-180-P
11910
GTIN 4052568002459
Size
16
Damping angle
2.1 you
Adjustment range swivel angle
0 deg ... 180 deg
Swivel angle
0 deg ... 180 deg
damping
elastic damping rings/plates on both sides
Installation position
any
functionality
double-acting
Structural design
Swing wing
Position detection
without
Symbol
00991265
operating pressure
2 bar ... 8 bar
Max. swing frequency at 0.6 MPa (6 bar, 87 psi)
3 Hz
Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
LABS compliance
VDMA24364-B2-L
Ambient temperature
-10 °C ... 60 °C
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
2 Nm
Product weight
300 g
Mounting type
with through hole
Pneumatic connection
M5
Drive shaft material
Stahl
nickel-plated
Material seals
NBR
Spezifikationen
Diese Informationen werden zeitnah ergänzt.
Einsatzbereiche
Diese Informationen werden zeitnah ergänzt.
Lieferumfang
Diese Informationen werden zeitnah ergänzt.
Download Data Sheet
Select options
Festo swivel drive DSR-16-180-P
Offer€442,14
