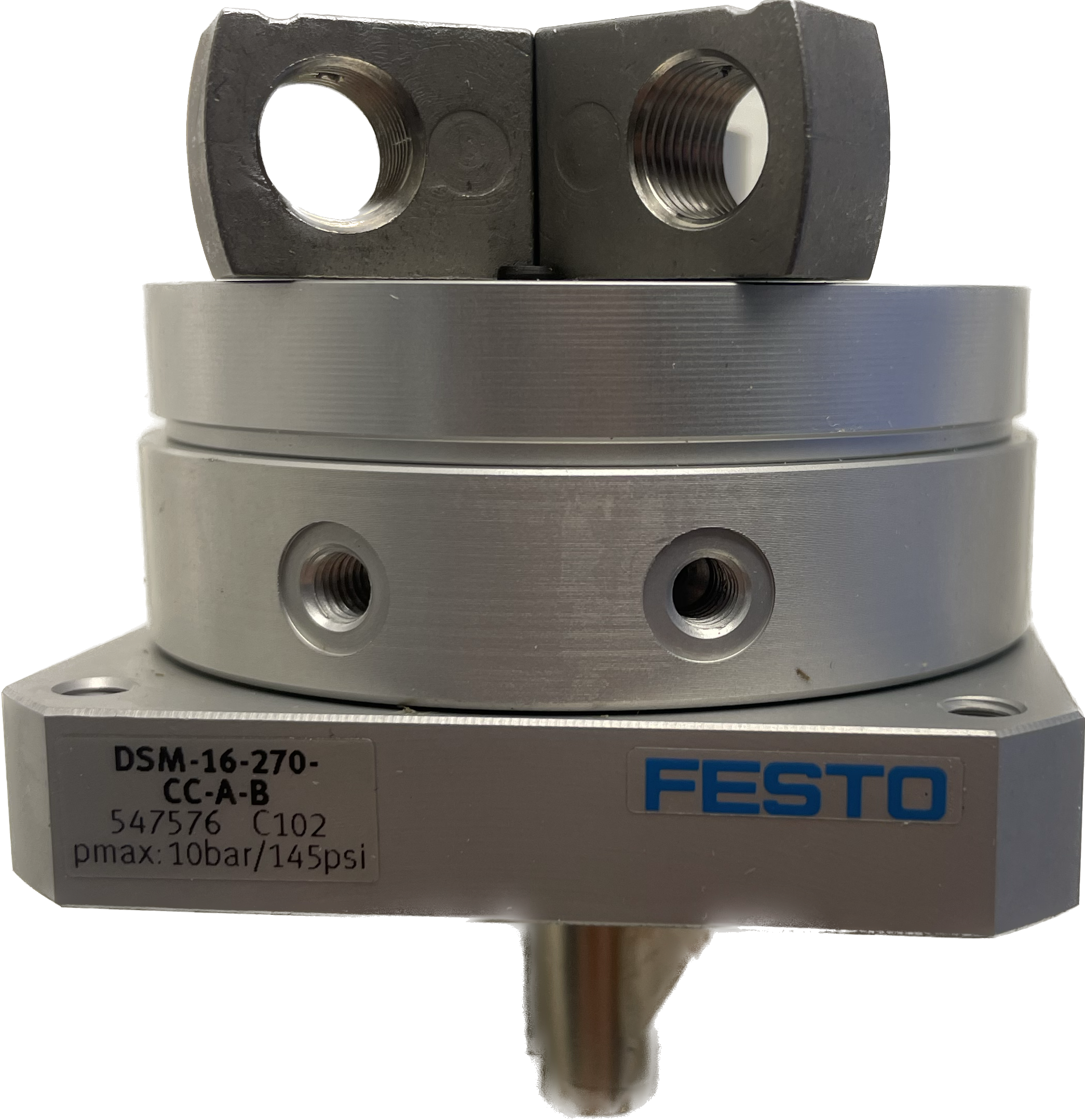

Festo swivel drive DSM-16-270-CC-A-B


SKU: DSM-16-270-CC-A-B
Offer€504,58

plus VAT. plus shipping and handling

Only 1 items left
American Express Apple Pay Google Pay KlarnaMaestroMastercardPayPalShop Pay Union PayVisa
Party
unused stock
Swivel drive
DSM-16-270-CC-A-B
547576
GTIN 4052568188979
Size
16
Damping angle
12 you
Adjustment range swivel angle
0 you ... 246 you
Swivel angle
0 you ... 246 you
damping
Shock absorbers on both sides
Installation position
any
Fine adjustment
-3 you
functionality
double-acting
Structural design
Swing wing
Position detection
for proximity switches
Symbol
00991265
operating pressure
1.8 bar ... 10 bar
Max. swing frequency at 0.6 MPa (6 bar, 87 psi)
1 Hz
Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-10 °C ... 60 °C
Max. Axialkraft
30 N
Max. Radialkraft
75 N
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
2.5 Nm
Permissible mass moment of inertia
0.02 kgm²
Product weight
285 g
Mounting type
with internal thread
Pneumatic connection
M5
Material note
RoHS konform
Drive shaft material
Stahl
nickel-plated
Material seals
TPE-U(PU)
Housing material
Aluminium wrought alloy
Download Data Sheet
