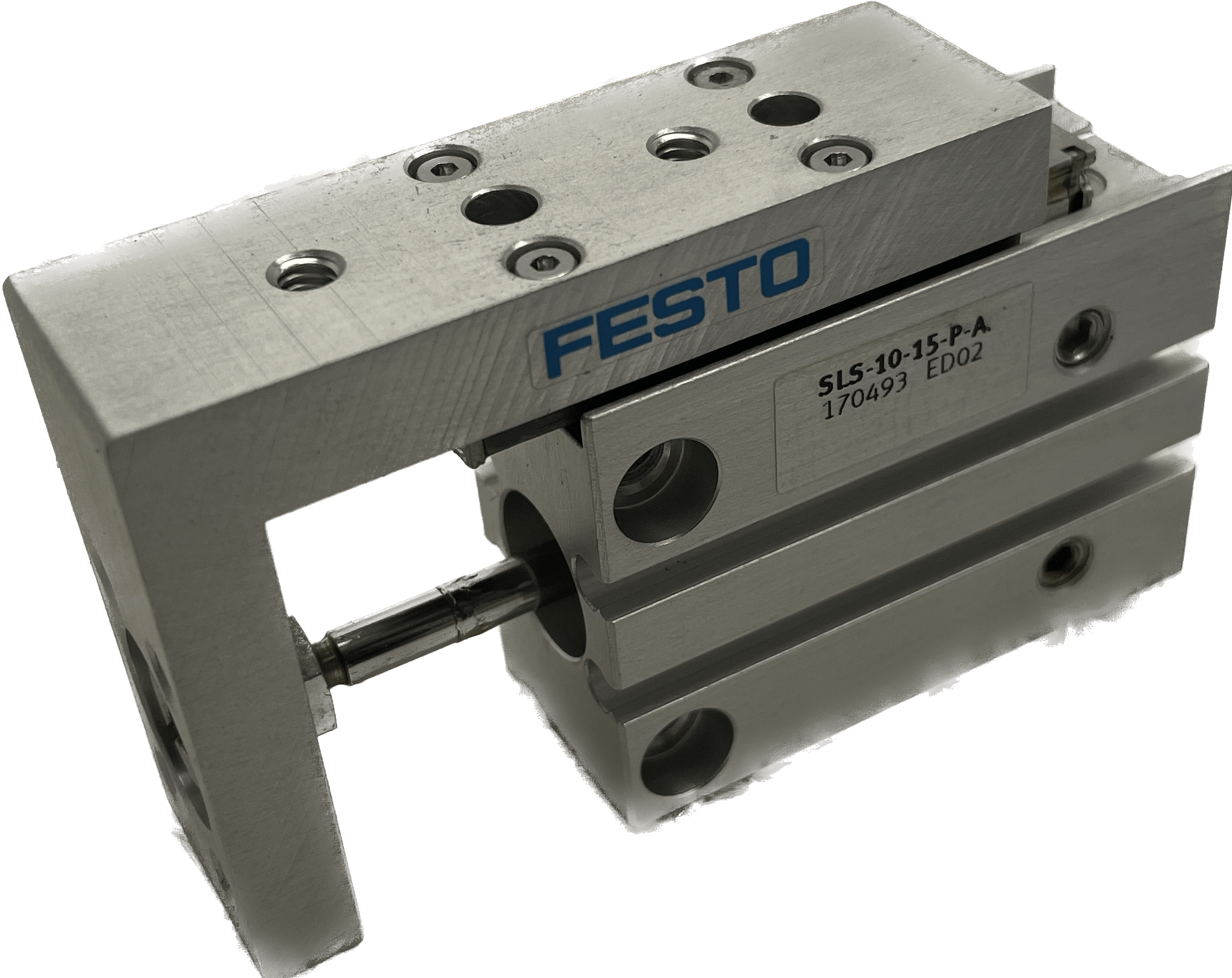

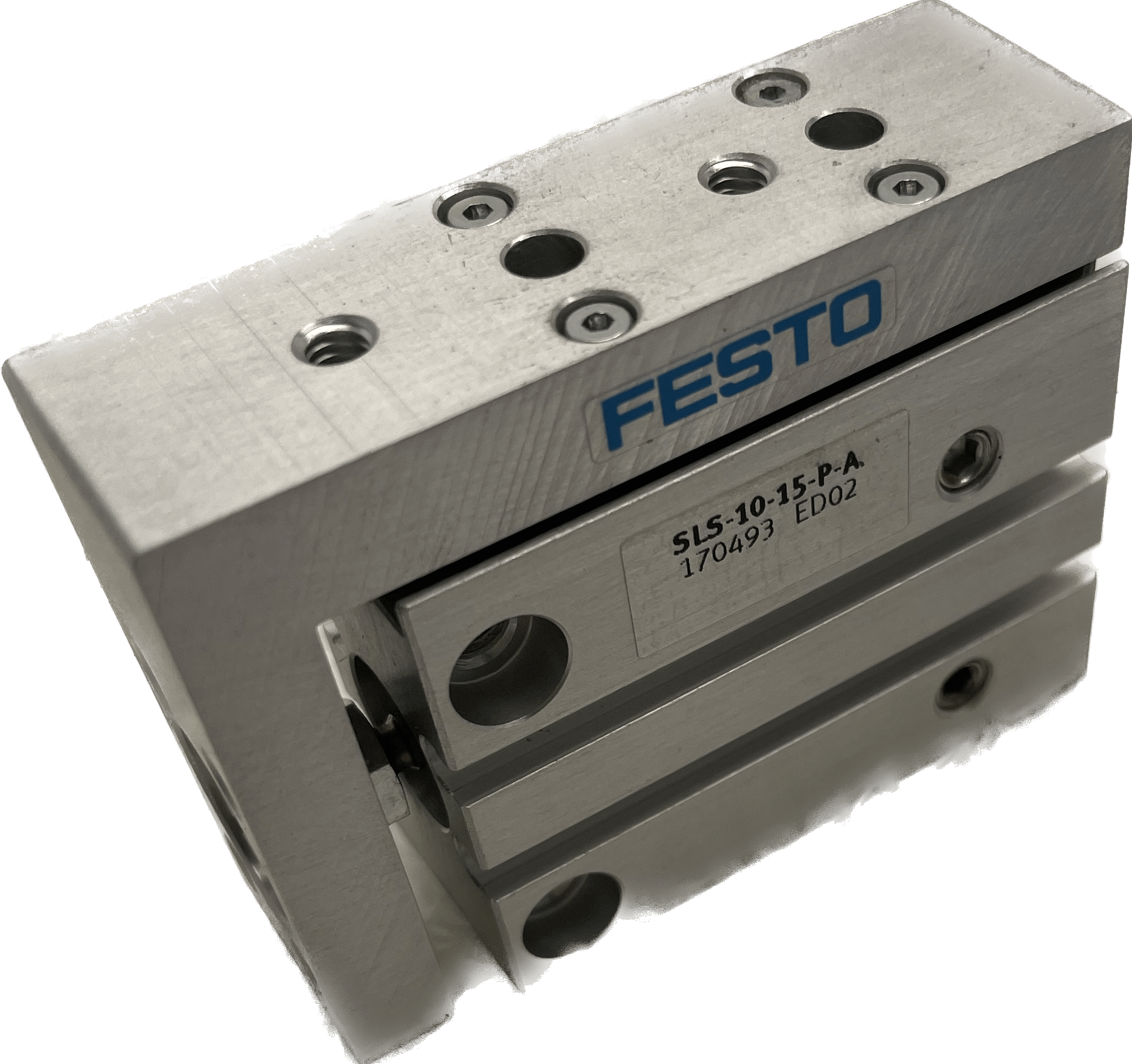

Festo mini slide SLS-10-15-P-A
plus VAT. plus shipping and handling
Party
unused stock
Mini sledge
SLS-10-15-P-A
170493
GTIN 4052568138998
Hub
15 mm
Kolben-Ø
10 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Installation position
any
guide
Ball cage guide
Structural design
yoke
Pistons
Piston rod
Ball cage guide
Sleds
Position detection
for proximity switches
Symbol
00991737
operating pressure
0.1 MPa ... 1 MPa
operating pressure
1 bar ... 10 bar
operating pressure
14.5 psi ... 145 psi
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B2-L
Ambient temperature
-20 °C ... 60 °C
Impact energy in the end positions
0.05 J
Max. Force Fy
170 N
Max. Kraft Fz
170 N
Max. Moment Mx
1.1 Nm
Max. Moment My
1.1 Nm
Max. Moment Mz
0.7 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
39 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
47 N
Moving mass
49 g
Product weight
149 g
Alternative connections
see product drawing
Mounting type
with through hole
Pneumatic connection
M5
Material note
RoHS konform
Material cover
Wrought aluminum alloy, anodized
Material guide
Stahl
Housing material
high-alloy stainless steel
unused stock
Mini sledge
SLS-10-15-P-A
170493
GTIN 4052568138998
Hub
15 mm
Kolben-Ø
10 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Installation position
any
guide
Ball cage guide
Structural design
yoke
Pistons
Piston rod
Ball cage guide
Sleds
Position detection
for proximity switches
Symbol
00991737
operating pressure
0.1 MPa ... 1 MPa
operating pressure
1 bar ... 10 bar
operating pressure
14.5 psi ... 145 psi
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B2-L
Ambient temperature
-20 °C ... 60 °C
Impact energy in the end positions
0.05 J
Max. Force Fy
170 N
Max. Kraft Fz
170 N
Max. Moment Mx
1.1 Nm
Max. Moment My
1.1 Nm
Max. Moment Mz
0.7 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
39 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
47 N
Moving mass
49 g
Product weight
149 g
Alternative connections
see product drawing
Mounting type
with through hole
Pneumatic connection
M5
Material note
RoHS konform
Material cover
Wrought aluminum alloy, anodized
Material guide
Stahl
Housing material
high-alloy stainless steel
Spezifikationen
Diese Informationen werden zeitnah ergänzt.
Einsatzbereiche
Diese Informationen werden zeitnah ergänzt.
Lieferumfang
Diese Informationen werden zeitnah ergänzt.
Download Data Sheet
