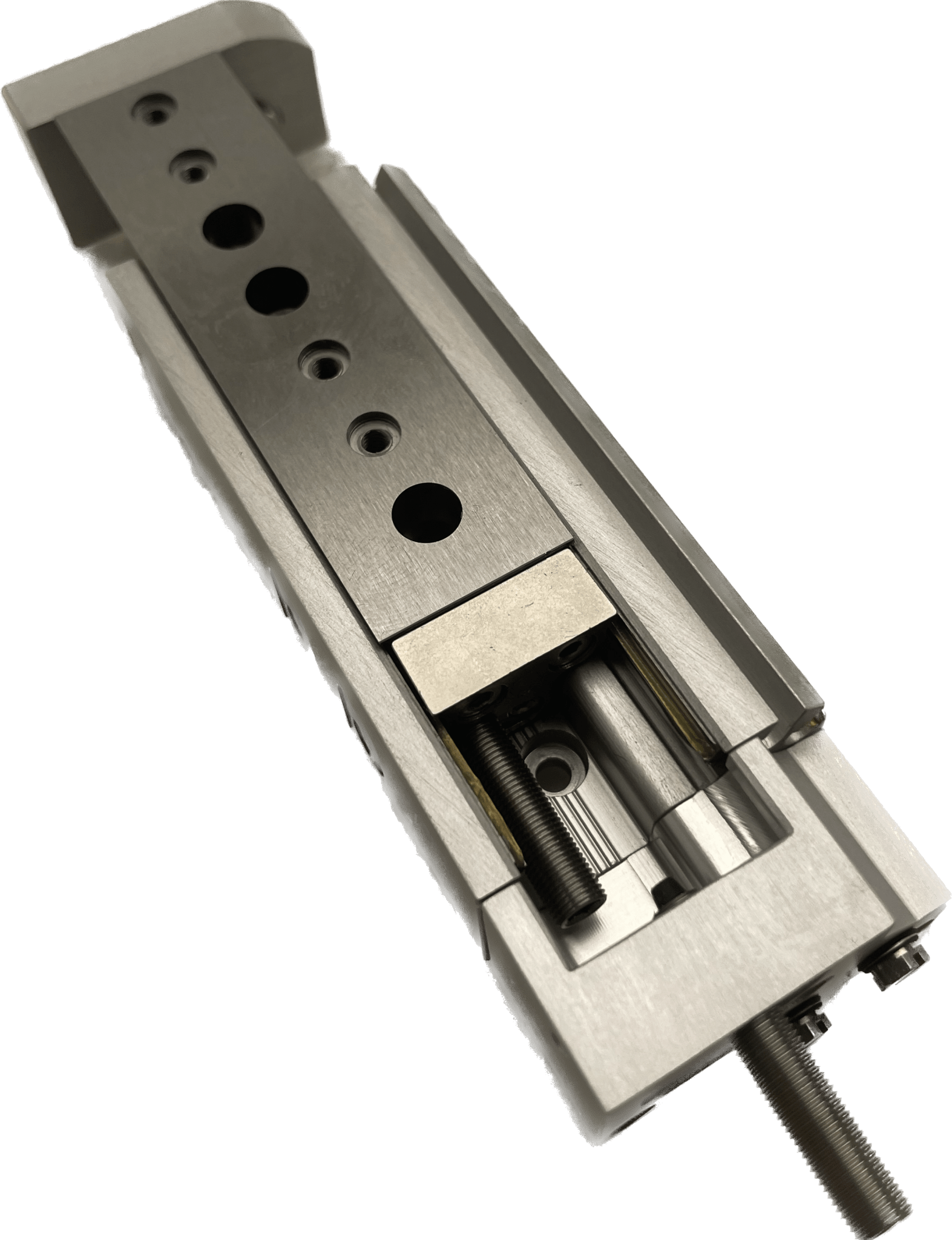

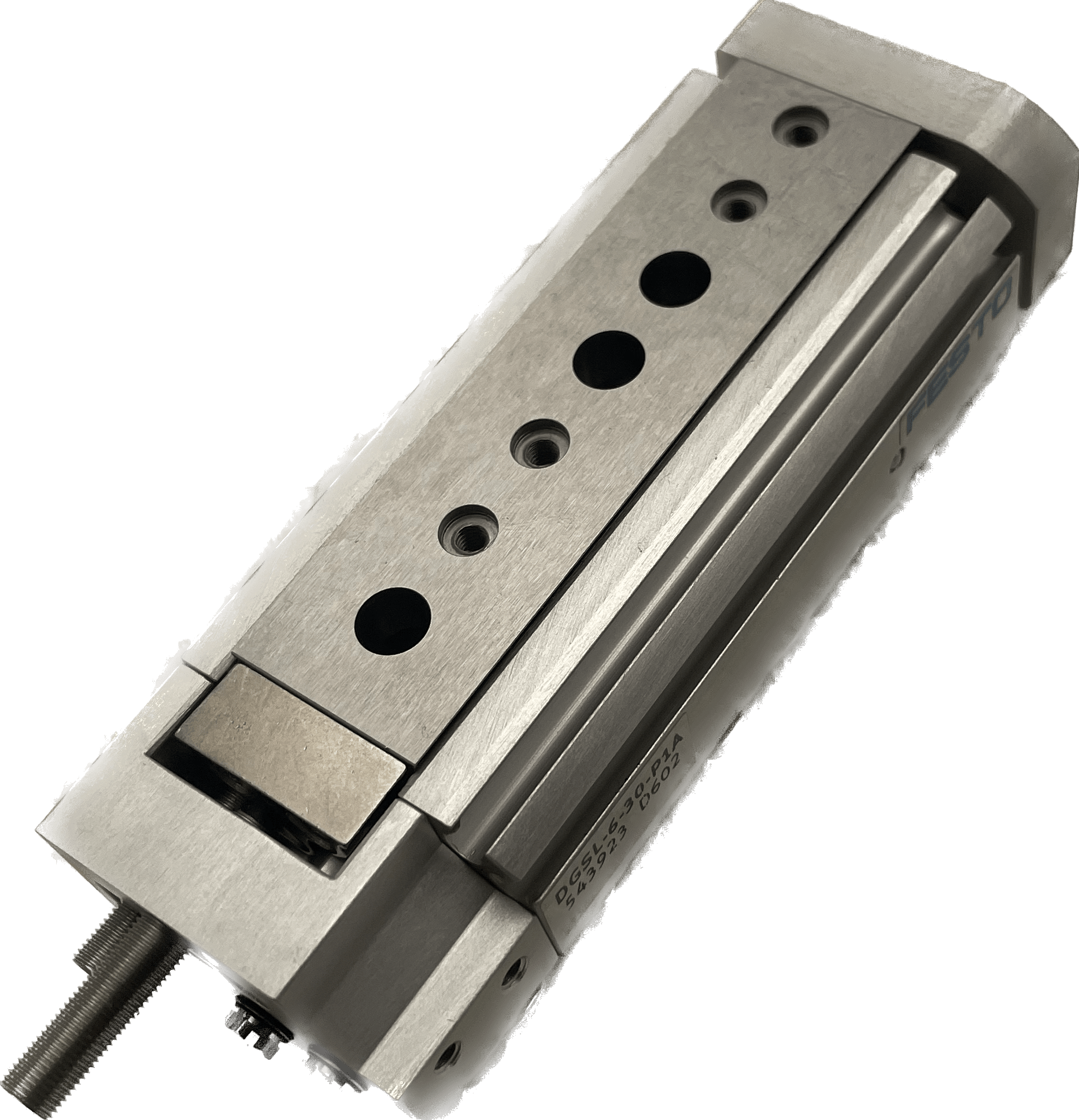

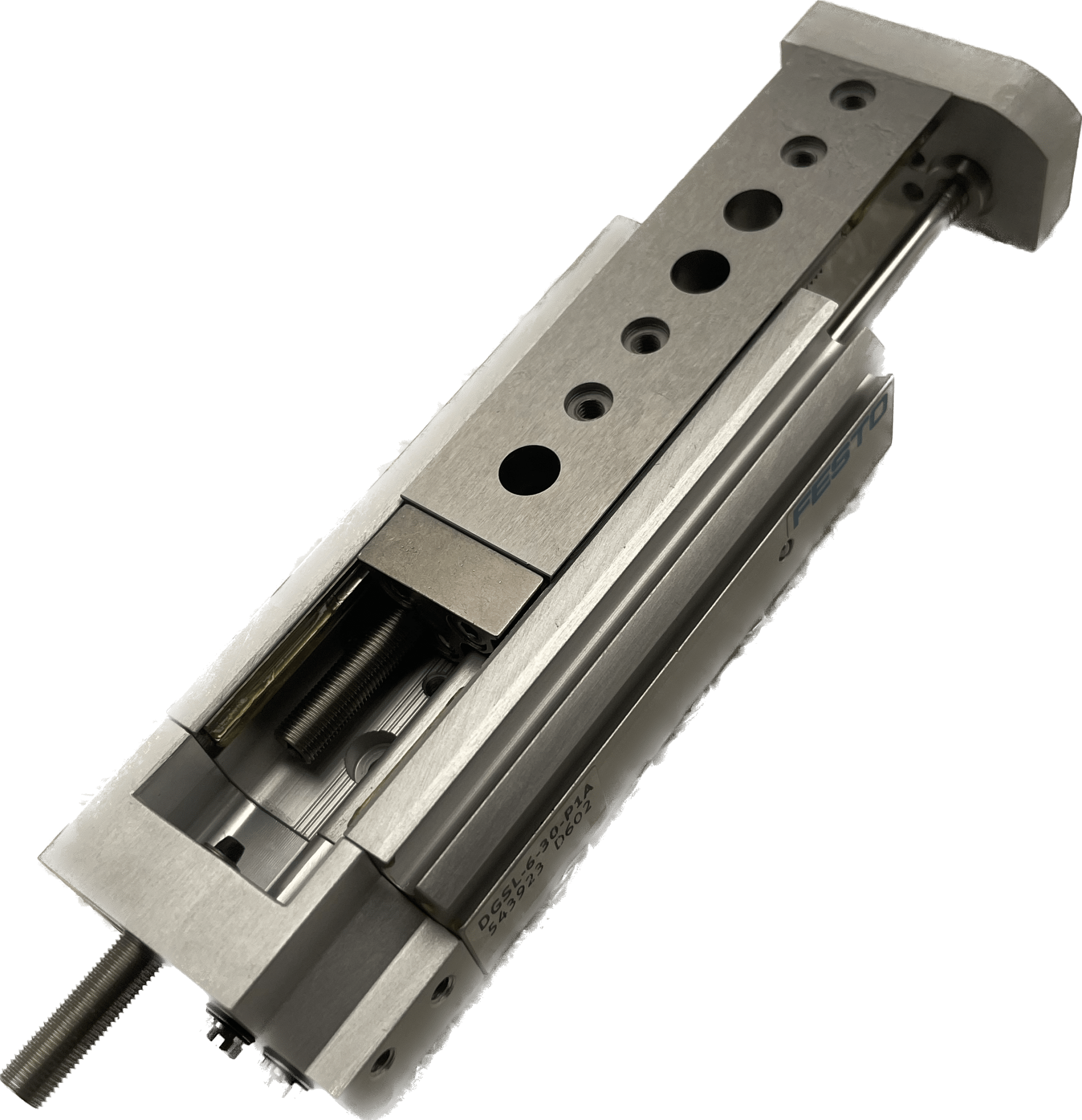

Festo mini slide DGSL-6-30-P1A

Party
unused stock
Mini sledge
DGSL-6-30-P1A
543923
GTIN 4052568182687
Hub
30 mm
Adjustable end position range / length at the front
30.5 mm
Adjustable end position range / length at the back
15 mm
Kolben-Ø
8 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides with fixed stop
Installation position
any
guide
Ball cage guide
Structural design
yoke
Pistons
Piston rod
Sleds
Position detection
for proximity switches
Symbol
00991263
operating pressure
0.15 MPa ... 0.8 MPa
operating pressure
1.5 bar ... 8 bar
Max. speed
0.5 m/s
Repeatability
±0,01 mm
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
0 °C ... 60 °C
Impact energy in the end positions
0.02 J
Damping length
2.8 mm
Max. Force Fy
631 N
Max. Kraft Fz
631 N
Max. Moment Mx
8 Nm
Max. Moment My
5.5 Nm
Max. Moment Mz
5.5 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
23 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
30 N
Moving mass
83 g
Product weight
203 g
Alternative connections
see product drawing
Mounting type
with through hole
Pneumatic connection
M3
Material note
RoHS konform
Material cover
Aluminium wrought alloy
Material seals
HNBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
