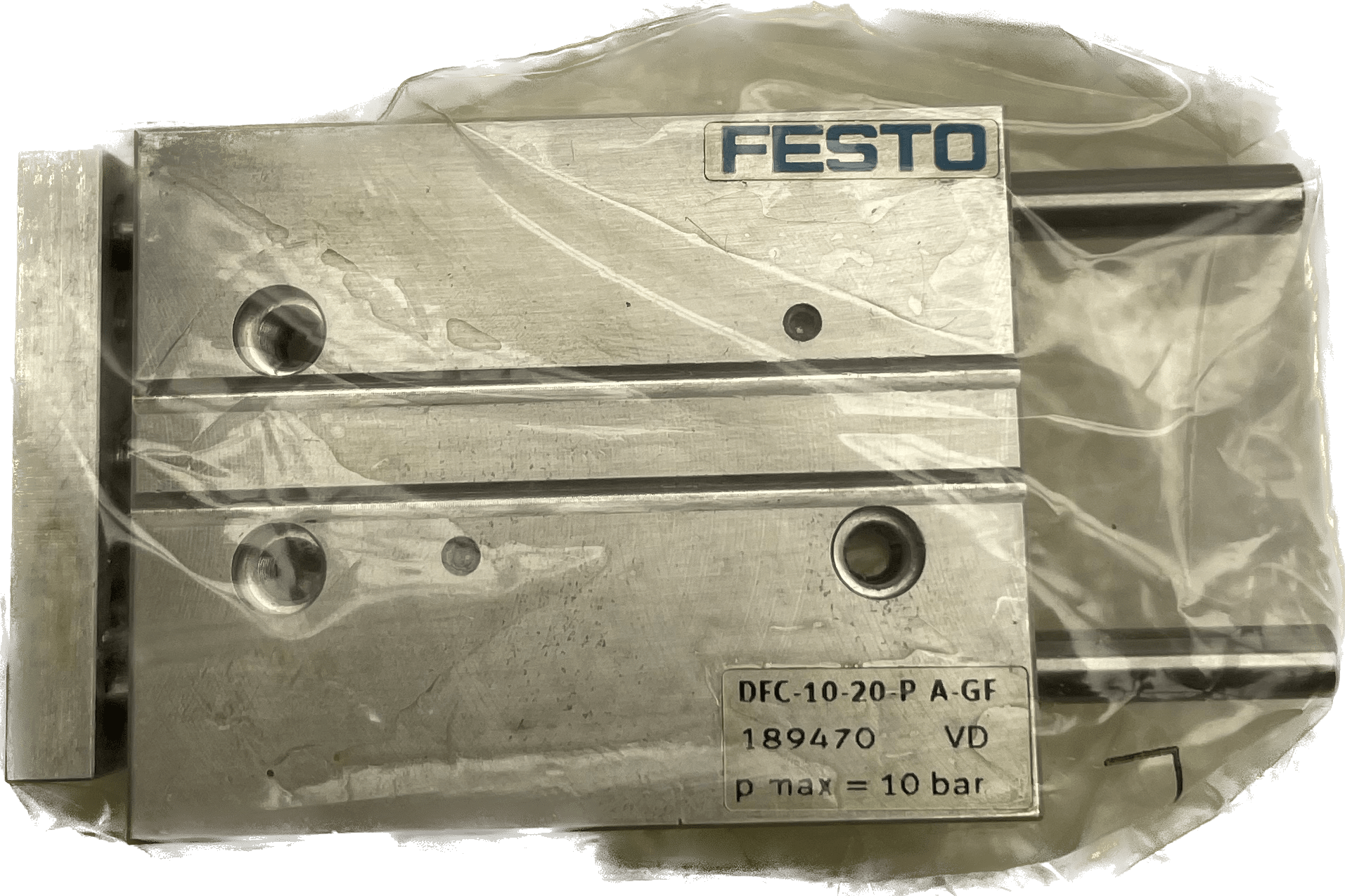

Festo mini guide cylinder DFC-10-20-P-A-GF
plus VAT. plus shipping and handling
Party
unused stock
Mini guide cylinder
DFC-10-20-P-A-GF
189470
GTIN 4052568150150
Distance from the center of gravity of the payload to the yoke plate xs
15 mm
Hub
20 mm
Kolben-Ø
10 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Installation position
any
guide
Sliding guide
Structural design
guide
Position detection
for proximity switches
Symbol
00991737
operating pressure
0.1 MPa ... 1 MPa
operating pressure
1 bar ... 10 bar
Max. speed
1 m/s
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B2-L
Ambient temperature
-5 °C ... 60 °C
Impact energy in the end positions
0.05 J
Max. Moment Mx
0.4 Nm
Max. payload depending on the stroke at a defined distance xs
12.2 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
35 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
47 N
Moving mass
27.2 g
Moving mass at 0 mm stroke
27.2 g
Additional moving mass per 10 mm stroke
7.2 g
Product weight
117 g
Pneumatic connection
M5
Material cover
Aluminium wrought alloy
Material seals
NBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
unused stock
Mini guide cylinder
DFC-10-20-P-A-GF
189470
GTIN 4052568150150
Distance from the center of gravity of the payload to the yoke plate xs
15 mm
Hub
20 mm
Kolben-Ø
10 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Installation position
any
guide
Sliding guide
Structural design
guide
Position detection
for proximity switches
Symbol
00991737
operating pressure
0.1 MPa ... 1 MPa
operating pressure
1 bar ... 10 bar
Max. speed
1 m/s
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B2-L
Ambient temperature
-5 °C ... 60 °C
Impact energy in the end positions
0.05 J
Max. Moment Mx
0.4 Nm
Max. payload depending on the stroke at a defined distance xs
12.2 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
35 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
47 N
Moving mass
27.2 g
Moving mass at 0 mm stroke
27.2 g
Additional moving mass per 10 mm stroke
7.2 g
Product weight
117 g
Pneumatic connection
M5
Material cover
Aluminium wrought alloy
Material seals
NBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
