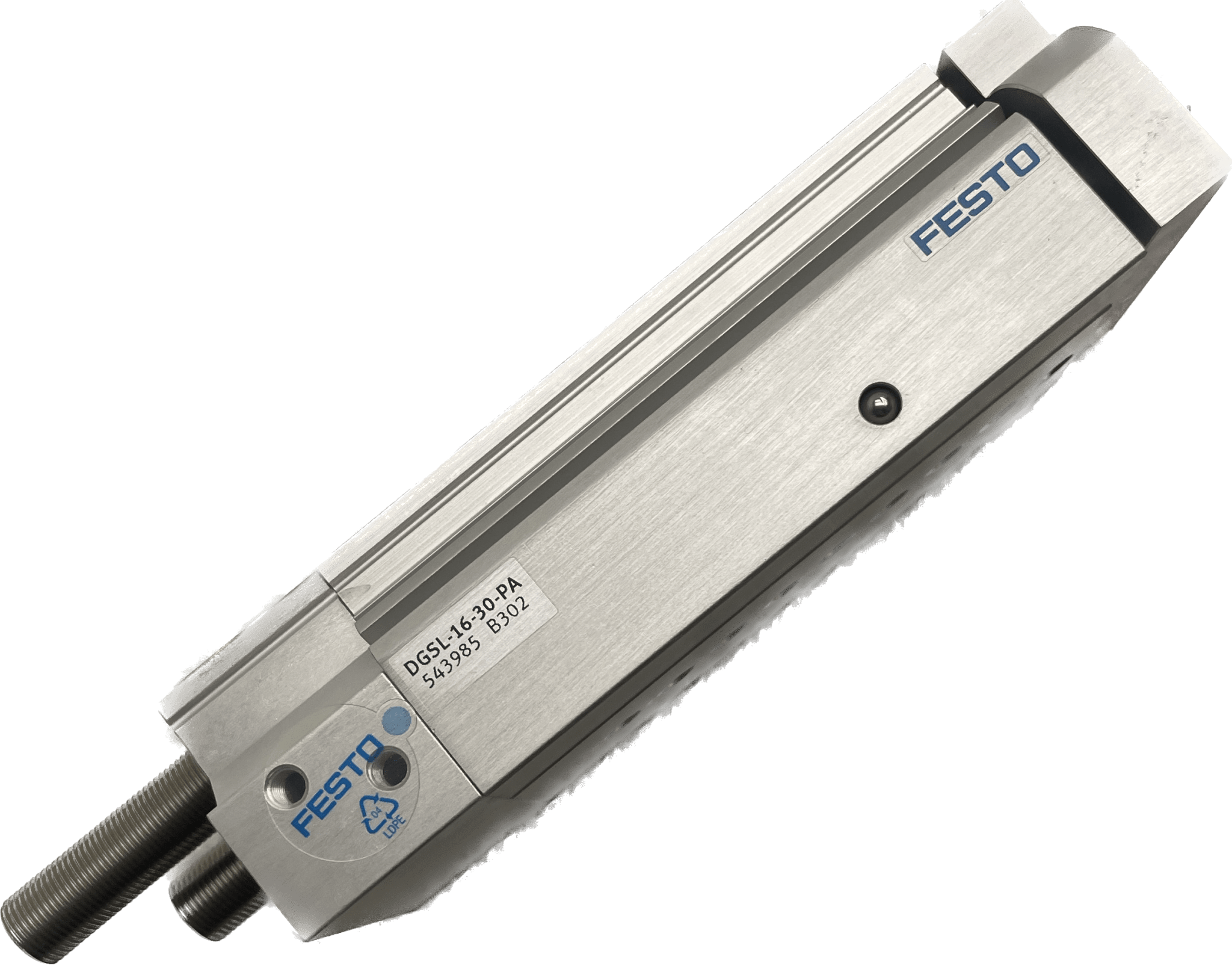

Festo mini slide DGSL-16-30-PA

Party
unused stock
Mini sledge
DGSL-16-30-PA
543985
GTIN 4052568183288
Hub
30 mm
Adjustable end position range / length at the front
37.5 mm
Adjustable end position range / length at the back
39.5 mm
Kolben-Ø
20 mm
Operating mode of the drive unit
yoke
damping
elastic damping rings/plates on both sides
Installation position
any
guide
Ball cage guide
Structural design
yoke
Pistons
Piston rod
Sleds
Position detection
for proximity switches
Symbol
00991263
operating pressure
0.1 MPa ... 0.8 MPa
operating pressure
1 bar ... 8 bars
Max. speed
0.8 m/s
Repeatability
0,3 mm
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
0 - no corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
0 °C ... 60 °C
Impact energy in the end positions
0.35 J
Damping length
1.2 mm
Max. Force Fy
2274 N
Max. Kraft Fz
2274 N
Max. Moment Mx
35 Nm
Max. Moment My
22 Nm
Max. Moment Mz
22 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
158 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
188 N
Moving mass
459 g
Product weight
1098 g
Alternative connections
see product drawing
Mounting type
with through hole
Pneumatic connection
M5
Material note
RoHS konform
Material cover
Aluminium wrought alloy
Material seals
HNBR
Housing material
Aluminium wrought alloy
Piston rod material
high-alloy stainless steel
