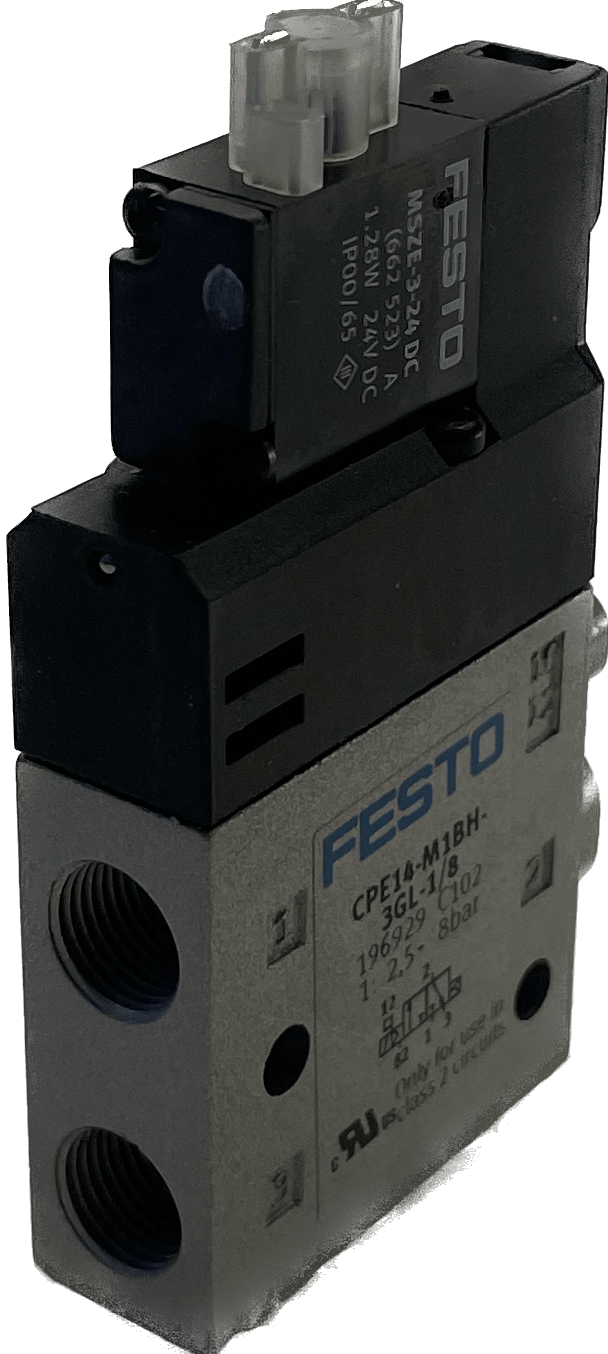

Festo Solenoid valve CPE14-M1BH-3GL-1/8

Party
unused stock
magnetic valve
CPE14-M1BH-3GL-1/8
196929
GTIN 4052568005139
Valve function
3/2 closed monostable
Actuation type
electric
Width
14 mm
Normal nominal flow
900 l/min
Pneumatic work connection
G1/8
Operating voltage
24V DC
operating pressure
0.25 MPa ... 0.8 MPa
operating pressure
2.5 bar ... 8 bar
Structural design
Piston slide
Reset type
pneumatic spring
Permit
c UL us - Recognized (OL)
Maritime classification
see certificate
Protection class
IP65
with socket
according to IEC 60529
Nominal diameter
6 mm
Sealing principle
soft
Installation position
any
Manual override
with accessories locking
tentative
Tax type
pre-controlled
Control air supply
intern
Flow direction
not reversible
Symbol
00991655
Valve location marking
Shield bearer
Coverage
positive coverage
Switching time off
27 ms
Switching time on
16 ms
Duty cycle
100% in conjunction with holding current reduction
Max. positive test pulse at 0 signal
1200 µs
Max. negative test pulse with 1 signal
900 µs
Coil characteristics
24 V DC: 1,28 W
Permissible voltage fluctuations
-15 % / +10 %
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Vibration resistance
Transport use test with severity level 2 according to FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 according to FN 942017-5 and EN 60068-2-27
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Medium temperature
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Product weight
60 g
Electrical connection
2-pole
Mounting type
with through hole
Control exhaust air connection 82
M3
Control air connection 12
M3
Pneumatic connection 1
G1/8
Pneumatic connection 2
G1/8
Pneumatic connection 3
G1/8
Material note
RoHS konform
Material seals
NBR
Housing material
Aluminium die casting
