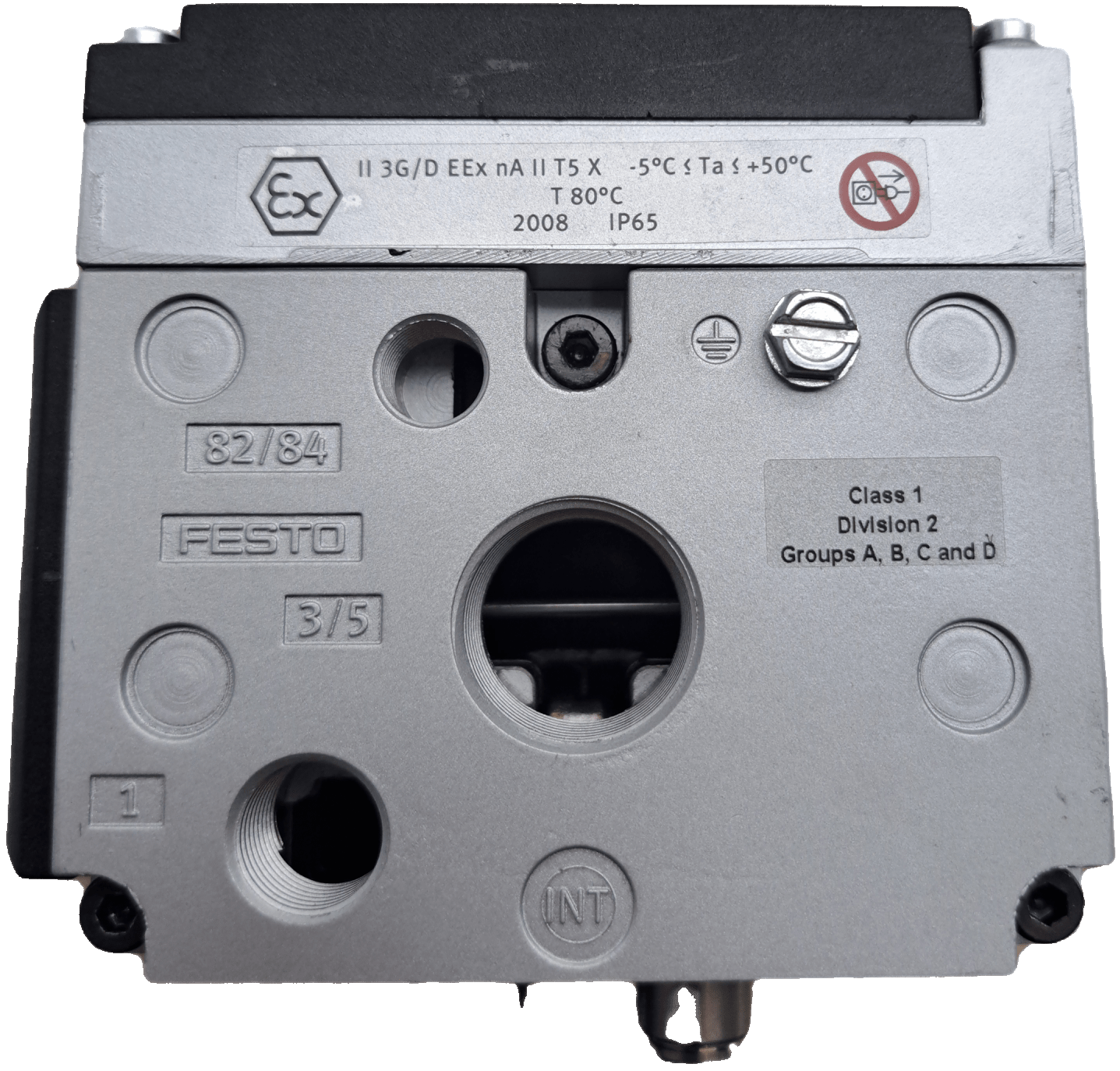

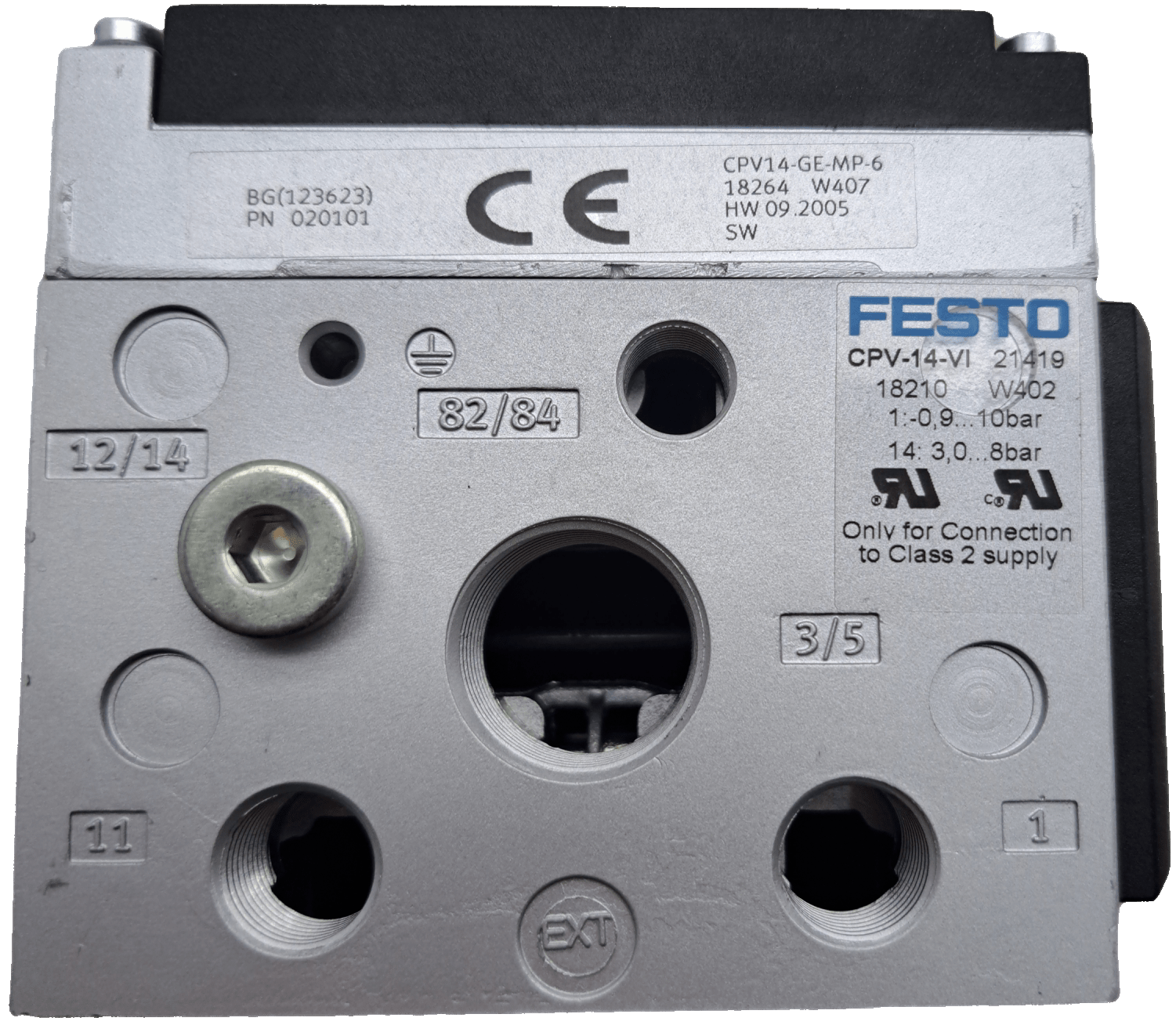

Festo Ventilinsel CPV14 / 10P-14-6B-MP-V-Y-MCMTCM+Z

unused stock
Ventilinsel CPV14
Part number:18210
Bestellcode 1 :10P-14-6B-MP-V-Y-MCMTCM+Z
Valve battery, CPV, pneumatic part 10P Valve battery, CPV
Size 14 Size 14
Number of valve positions 6 valve positions

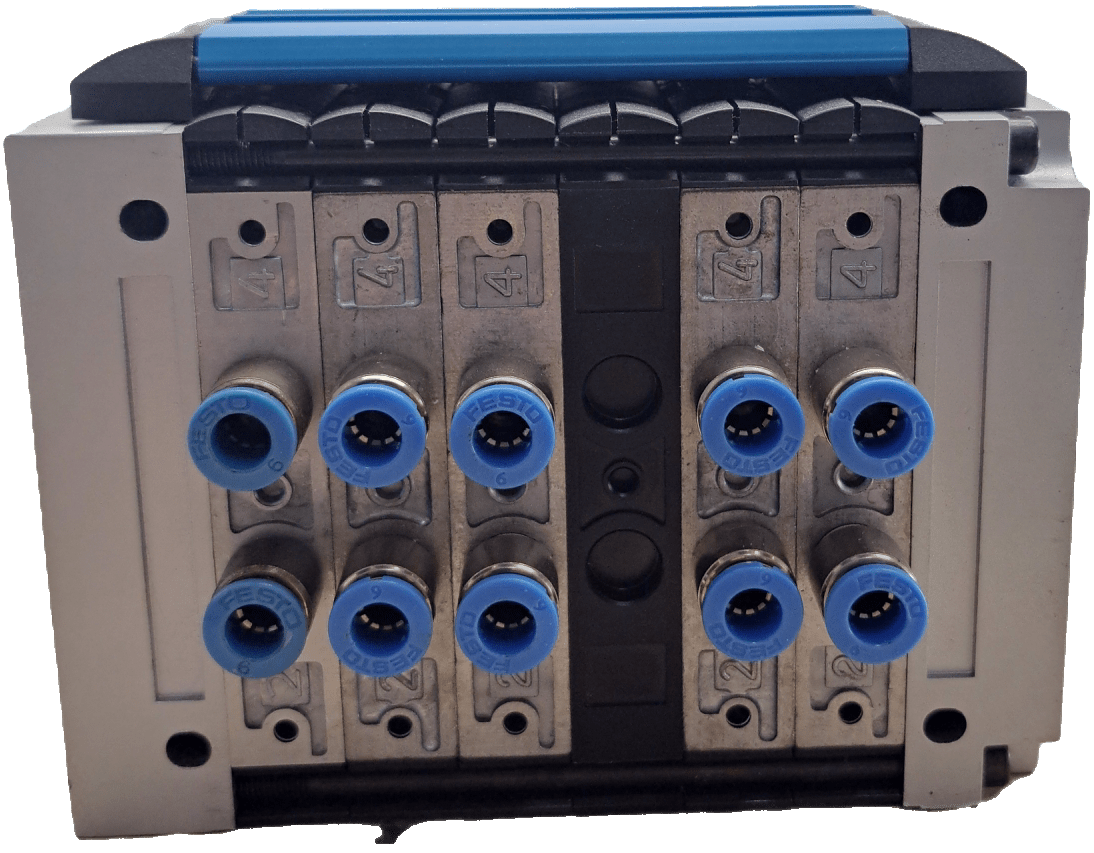

Working connections B QS6 Plug-in connections on the working connection

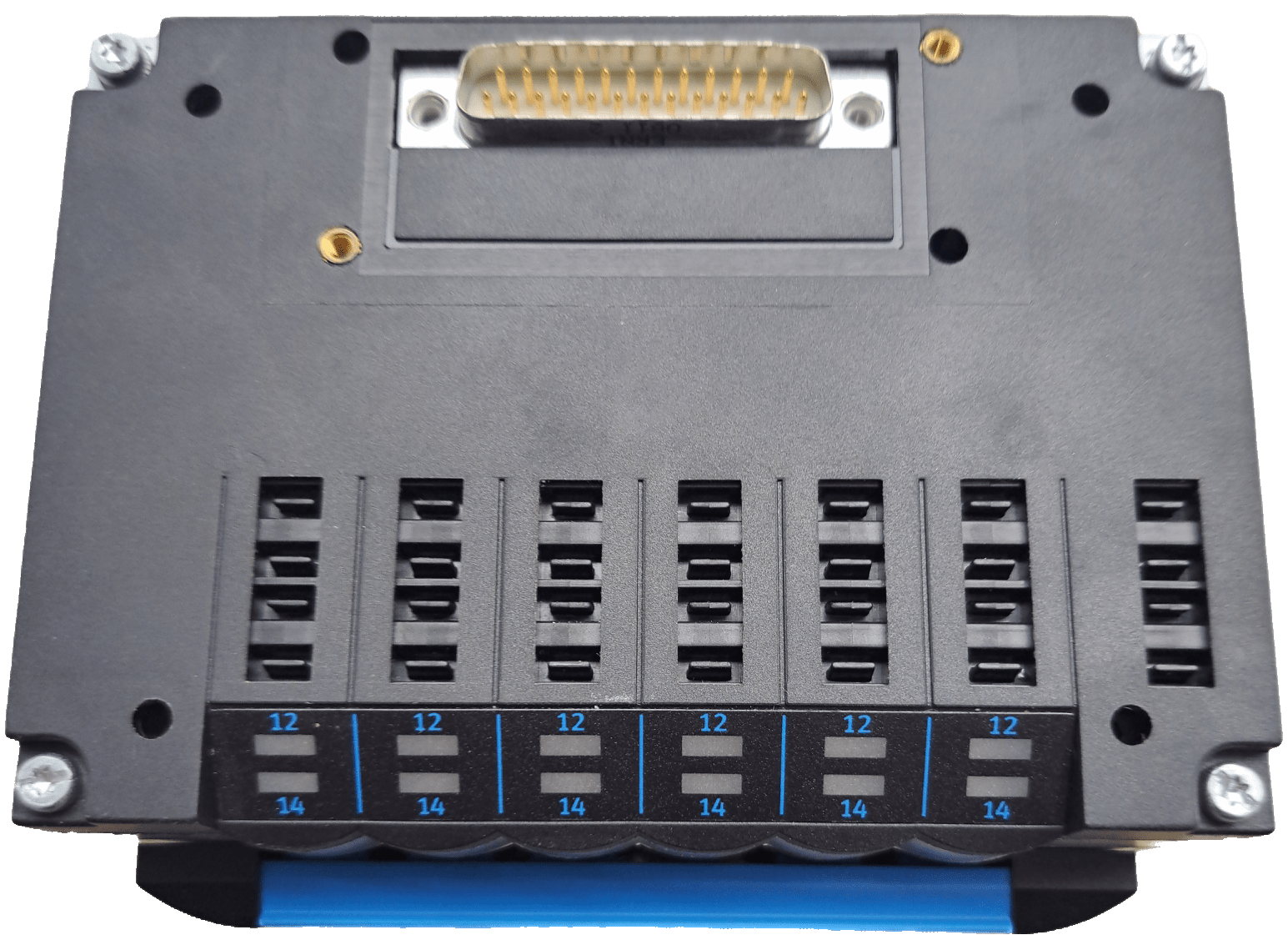

Electrical connection MP Electrical multipole
Manual override V Concealed
Pneumatic supply Y Internal control supply air, supply air on both sides, ducted exhaust air

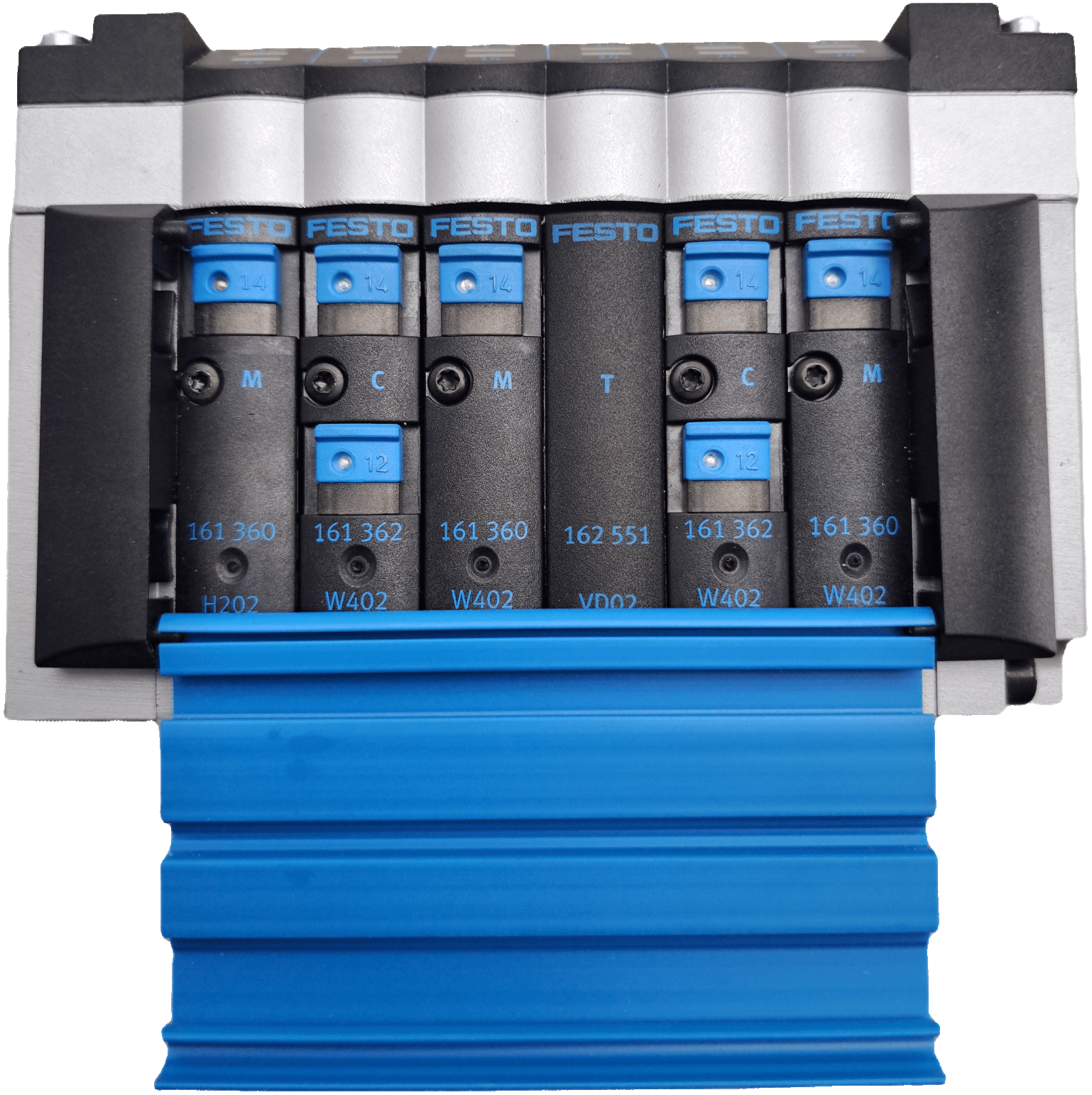

Valve position 1
Equipped with valve position M 5/2-way valve, monostable
Valve position 2
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 3
Equipped with valve position M 5/2-way valve, monostable
Valve position 4
Fitting valve location T plate with channel separation 1/11 closed
Valve position 5
Equipped with valve location C 2x3/2-way valve, rest position closed
Valve position 6
Equipped with valve position M 5/2-way valve, monostable
Accesories
Label holder Z Label holder for labels
