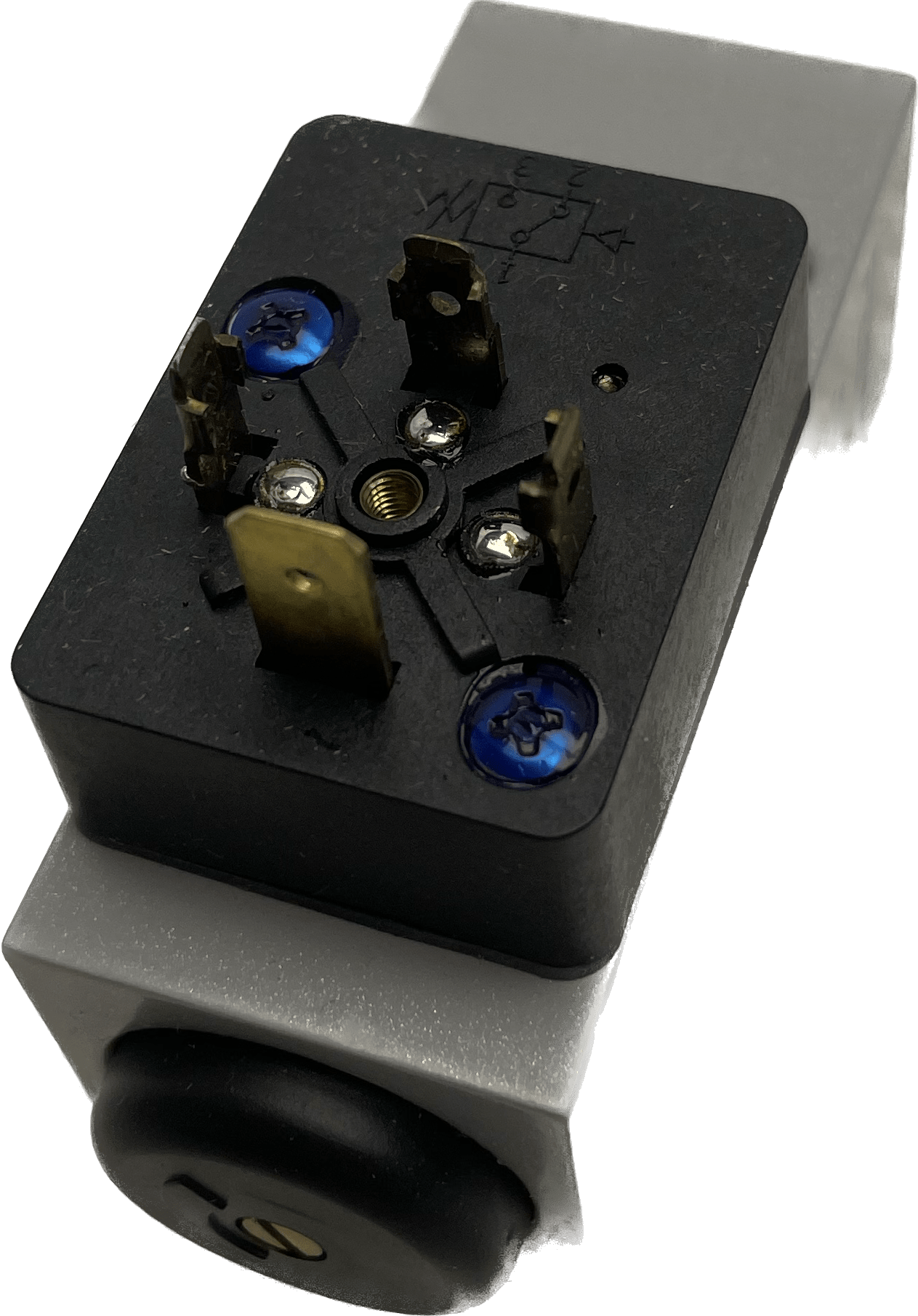

Festo pressure switch PEV-1/4-B

Party
unused stock
Pressure switch
PEV-1/4-B
10773
GTIN 4052568002299
Complies with standard
EN 60947-5-1
Symbol
00991471
Permit
CCC
CE mark (see declaration of conformity)
according to EU low voltage directive
UKCA mark (see declaration of conformity)
according to UK regulations for electrical equipment
Explosion protection
Please note the information in the certificate
Zone 1 (ATEX)
Zone 2 (ATEX)
Zone 21 (ATEX)
Zone 22 (ATEX)
Material note
RoHS konform
Measured quantity
Relative pressure
Measurement method
Pneumatic-electric pressure transducer
operating pressure
0.1 MPa ... 1.2 MPa
operating pressure
1 bar ... 12 bar
Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
Water
Note on the operating/control medium
Oiled operation possible (required for further operation)
Medium temperature
-20 °C ... 80 °C
Ambient temperature
-20 °C ... 80 °C
Switching element function
Wechsler
Max. switching frequency
3 Hz
Max. switching output voltage AC
250 V
Max. switching output voltage DC
125 V
Max. output current
5000 mA
Minimum load current
1 mA at 24 V
10 mA at 10 V
100mA at 5V
Usage category inductive load
AC-14
DC-13
Usage category ohmic load
AC-12
DC-12
Electrical connection
Form A
Plug
according to DIN 43650
square design
Mounting type
with through hole
Installation position
any
Pneumatic connection
G1/4
Product weight
194 g
Housing material
Aluminium die casting
Material switching contact
Silver
Setting range threshold values
1 bar ... 12 bar
Protection class
IP65
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
